SDO HMI 2014-05-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.06 | 260.75 | 39.80 | 150.91 | -11.09 | 80.10 | -29.66 | 109.08 | 0.5145 | 131.0 | -28.6 | |
|
previous
or next observation for the same group /

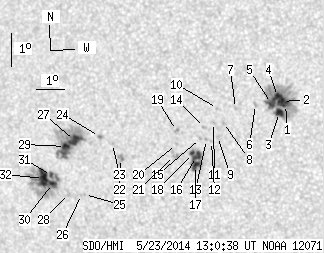

back to the solar disc SDO HMI 2014-05-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.06 | 80.89 | 1.69 | 44.58 | -10.00 | 85.08 | -24.67 | 109.68 | 0.4384 | 1232.5 | 487.8 | |
| 6.04 | -1.00 | 3.33 | -1.00 | -9.91 | 84.99 | -24.77 | 109.42 | 0.4394 | 1310.7 | 999999 | |
| 5.40 | -1.00 | 2.98 | -1.00 | -10.24 | 84.86 | -24.90 | 110.06 | 0.4428 | 880.8 | 999999 | |
| 5.22 | -1.00 | 2.88 | -1.00 | -9.75 | 84.83 | -24.92 | 108.97 | 0.4410 | 1120.9 | 999999 | |
| 5.58 | -1.00 | 3.09 | -1.00 | -9.96 | 84.61 | -25.14 | 109.29 | 0.4452 | 810.1 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -9.98 | 84.06 | -25.69 | 109.00 | 0.4534 | 720.0 | 498.6 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -10.10 | 83.36 | -26.39 | 108.82 | 0.4642 | 748.0 | 577.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.52 | 82.91 | -26.84 | 109.42 | 0.4727 | 753.0 | 658.7 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -10.95 | 82.66 | -27.09 | 110.14 | 0.4782 | 732.0 | 633.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -10.09 | 82.74 | -27.01 | 108.44 | 0.4733 | 563.0 | 465.1 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -10.52 | 82.56 | -27.19 | 109.21 | 0.4777 | 775.0 | 604.1 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -11.10 | 82.43 | -27.32 | 110.30 | 0.4821 | 656.0 | 502.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -11.04 | 82.27 | -27.49 | 110.07 | 0.4843 | 812.0 | 690.4 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -10.67 | 82.23 | -27.52 | 109.32 | 0.4831 | 916.0 | 659.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -11.00 | 82.06 | -27.69 | 109.89 | 0.4871 | 740.0 | 610.6 | |
| 5.49 | 20.90 | 3.12 | 11.89 | -11.55 | 81.86 | -27.89 | 110.85 | 0.4924 | 1033.3 | 666.9 | |
| 5.22 | -16.00 | 2.97 | -16.00 | -11.83 | 81.80 | -27.96 | 111.35 | 0.4946 | 860.5 | 999999 | |
| 1.71 | -16.00 | 0.97 | -16.00 | -11.46 | 81.73 | -28.02 | 110.59 | 0.4938 | 780.5 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.18 | -10.74 | 81.25 | -28.51 | 108.92 | 0.4977 | 852.0 | 653.9 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -11.17 | 81.20 | -28.55 | 109.73 | 0.5002 | 172.0 | 135.9 | |
| 0.00 | 3.69 | 0.00 | 2.11 | -11.51 | 81.09 | -28.66 | 110.32 | 0.5032 | 469.0 | 574.1 | |
| 0.00 | 4.50 | 0.00 | 2.63 | -11.57 | 79.16 | -30.60 | 109.40 | 0.5307 | -909.0 | -779.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -11.11 | 78.92 | -30.83 | 108.43 | 0.5321 | -765.0 | -586.8 | |
| 0.00 | 1.98 | 0.00 | 1.16 | -10.89 | 78.48 | -31.27 | 107.82 | 0.5376 | -898.0 | -772.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -12.66 | 77.70 | -32.05 | 110.60 | 0.5553 | -715.0 | -581.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -12.66 | 77.59 | -32.16 | 110.54 | 0.5568 | -606.0 | -563.6 | |
| 8.56 | 60.53 | 5.07 | 35.95 | -10.99 | 77.56 | -32.20 | 107.61 | 0.5509 | -1068.5 | -523.8 | |
| 0.00 | 3.33 | 0.00 | 1.99 | -12.62 | 77.12 | -32.64 | 110.25 | 0.5631 | -477.0 | -334.0 | |
| 3.78 | -27.00 | 2.25 | -27.00 | -11.17 | 77.20 | -32.55 | 107.77 | 0.5564 | -981.7 | 999999 | |
| 4.59 | 65.67 | 2.76 | 39.65 | -12.31 | 76.57 | -33.18 | 109.45 | 0.5693 | -956.9 | -293.3 | |
| 1.71 | -30.00 | 1.03 | -30.00 | -12.06 | 76.57 | -33.19 | 109.02 | 0.5684 | -947.5 | 999999 | |
| 12.70 | -30.00 | 7.66 | -30.00 | -12.15 | 76.26 | -33.50 | 109.04 | 0.5729 | -905.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
