SDO HMI 2014-05-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.48 | 81.68 | 14.46 | 46.24 | -13.67 | 136.31 | 26.56 | 244.07 | 0.4848 | 172.0 | 190.3 | |
|
previous
or next observation for the same group /

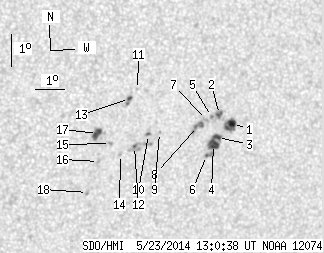

back to the solar disc SDO HMI 2014-05-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.59 | 12.34 | 2.64 | 7.09 | -13.31 | 138.20 | 28.45 | 246.16 | 0.5088 | 932.7 | 819.2 | |
| 1.89 | 4.50 | 1.08 | 2.57 | -13.04 | 137.71 | 27.96 | 246.34 | 0.5006 | 1017.0 | 774.9 | |
| 2.88 | 16.03 | 1.65 | 9.19 | -13.75 | 137.73 | 27.97 | 245.02 | 0.5046 | 1041.5 | 678.2 | |
| 7.75 | -3.00 | 4.44 | -3.00 | -13.97 | 137.61 | 27.86 | 244.54 | 0.5043 | 992.8 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -13.11 | 137.43 | 27.68 | 246.04 | 0.4971 | 970.0 | 915.1 | |
| 0.72 | 4.14 | 0.41 | 2.37 | -14.32 | 137.41 | 27.66 | 243.75 | 0.5035 | 858.2 | 656.9 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -13.20 | 137.27 | 27.52 | 245.74 | 0.4953 | 852.0 | 759.9 | |
| 0.00 | 7.21 | 0.00 | 4.10 | -13.42 | 136.98 | 27.23 | 245.12 | 0.4925 | 936.0 | 868.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -13.62 | 135.68 | 25.92 | 243.75 | 0.4756 | -455.0 | -428.7 | |
| 0.63 | 2.25 | 0.35 | 1.26 | -13.69 | 135.30 | 25.55 | 243.32 | 0.4709 | -566.4 | -423.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -12.30 | 134.77 | 25.02 | 245.68 | 0.4553 | -567.0 | -415.5 | |
| 0.63 | 12.25 | 0.35 | 6.87 | -14.07 | 134.86 | 25.11 | 242.21 | 0.4672 | -625.0 | -354.2 | |
| 1.26 | 4.05 | 0.70 | 2.25 | -12.58 | 134.53 | 24.77 | 244.91 | 0.4534 | -843.0 | -698.4 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -14.32 | 134.41 | 24.65 | 241.31 | 0.4626 | -714.0 | -559.0 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -13.98 | 134.02 | 24.27 | 241.64 | 0.4551 | -699.0 | -529.7 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -14.55 | 133.68 | 23.92 | 240.19 | 0.4542 | -822.0 | -712.2 | |
| 5.13 | 8.29 | 2.84 | 4.58 | -13.68 | 133.55 | 23.79 | 241.82 | 0.4465 | -1043.5 | -794.2 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -15.52 | 133.41 | 23.66 | 238.04 | 0.4576 | -685.0 | -586.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
