SDO HMI 2014-05-23 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.85 | 109.04 | 24.31 | 72.95 | -18.55 | 148.64 | 39.44 | 243.72 | 0.6731 | 475.6 | 304.5 | |
|
previous
or next observation for the same group /

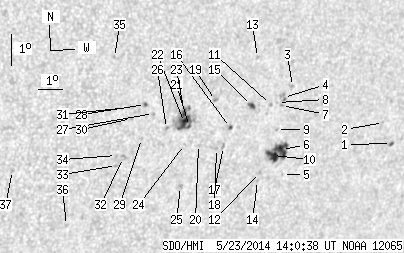

back to the solar disc SDO HMI 2014-05-23 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 2.07 | 0.68 | 1.56 | -18.73 | 155.96 | 46.76 | 246.37 | 0.7553 | 535.7 | 469.2 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -18.08 | 155.35 | 46.15 | 247.02 | 0.7470 | 684.0 | 517.5 | |
| 0.00 | 1.53 | 0.00 | 1.05 | -17.02 | 150.99 | 41.79 | 246.92 | 0.6949 | 541.0 | 502.1 | |
| 0.00 | 3.87 | 0.00 | 2.65 | -17.37 | 150.70 | 41.50 | 246.32 | 0.6928 | 623.0 | 580.9 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -19.81 | 151.39 | 42.19 | 243.28 | 0.7097 | 460.0 | 374.2 | |
| 11.44 | 30.80 | 7.95 | 21.37 | -19.02 | 151.10 | 41.90 | 244.23 | 0.7034 | 703.6 | 547.1 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -17.62 | 150.69 | 41.49 | 245.97 | 0.6936 | 602.0 | 484.5 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -17.53 | 150.49 | 41.29 | 246.02 | 0.6910 | 689.0 | 657.7 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -18.39 | 150.69 | 41.49 | 244.92 | 0.6964 | 730.0 | 656.7 | |
| 8.02 | -6.00 | 5.55 | -6.00 | -19.21 | 150.77 | 41.57 | 243.82 | 0.7005 | 859.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -17.60 | 150.21 | 41.01 | 245.81 | 0.6880 | 592.0 | 532.4 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -19.76 | 150.38 | 41.18 | 242.90 | 0.6983 | 498.0 | 428.7 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -16.14 | 149.29 | 40.09 | 247.52 | 0.6718 | 523.0 | 490.5 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -20.02 | 150.38 | 41.18 | 242.55 | 0.6993 | 514.0 | 461.1 | |
| 2.25 | 3.87 | 1.52 | 2.61 | -17.65 | 149.43 | 40.22 | 245.42 | 0.6790 | 848.6 | 583.1 | |
| 0.81 | 1.98 | 0.54 | 1.32 | -18.36 | 148.74 | 39.54 | 244.12 | 0.6739 | 806.2 | 723.4 | |
| 0.00 | 1.89 | 0.00 | 1.27 | -18.96 | 148.62 | 39.42 | 243.21 | 0.6750 | 694.0 | 581.7 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -19.03 | 148.35 | 39.15 | 242.99 | 0.6722 | 320.0 | 242.7 | |
| 0.00 | 1.89 | 0.00 | 1.24 | -17.51 | 147.90 | 38.70 | 244.94 | 0.6605 | -716.0 | -558.4 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -18.92 | 147.57 | 38.37 | 242.78 | 0.6627 | 91.0 | 69.6 | |
| 0.81 | 32.52 | 0.53 | 21.14 | -18.35 | 147.06 | 37.86 | 243.33 | 0.6541 | -339.1 | -214.6 | |
| 9.01 | -21.00 | 5.86 | -21.00 | -18.23 | 146.82 | 37.62 | 243.39 | 0.6507 | -222.2 | 999999 | |
| 2.07 | -21.00 | 1.34 | -21.00 | -17.94 | 146.75 | 37.55 | 243.77 | 0.6486 | -908.4 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -18.93 | 147.00 | 37.80 | 242.48 | 0.6561 | 235.0 | 213.2 | |
| 0.00 | 1.80 | 0.00 | 1.19 | -20.27 | 147.21 | 38.01 | 240.69 | 0.6648 | 730.0 | 614.0 | |
| 0.00 | 1.35 | 0.00 | 0.87 | -18.43 | 146.15 | 36.95 | 242.76 | 0.6436 | 791.0 | 688.1 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -17.96 | 145.52 | 36.31 | 243.12 | 0.6339 | 408.0 | 452.3 | |
| 0.54 | 2.07 | 0.34 | 1.32 | -17.69 | 145.13 | 35.93 | 243.33 | 0.6279 | 786.0 | 642.0 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -18.76 | 145.23 | 36.03 | 241.78 | 0.6343 | 621.0 | 572.8 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -18.14 | 144.69 | 35.49 | 242.41 | 0.6247 | 645.0 | 580.7 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -17.79 | 144.49 | 35.29 | 242.82 | 0.6206 | 527.0 | 459.5 | |
| 0.00 | 2.52 | 0.00 | 1.61 | -19.38 | 144.67 | 35.47 | 240.56 | 0.6308 | 666.0 | 679.5 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -19.64 | 144.46 | 35.26 | 240.06 | 0.6297 | 651.0 | 566.2 | |
| 0.00 | 1.35 | 0.00 | 0.86 | -19.32 | 144.38 | 35.18 | 240.48 | 0.6270 | 437.0 | 419.3 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -16.23 | 143.62 | 34.41 | 244.75 | 0.6022 | 730.0 | 708.9 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -21.59 | 142.99 | 33.79 | 236.30 | 0.6238 | 651.0 | 518.6 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -19.85 | 140.49 | 31.29 | 237.13 | 0.5838 | 610.0 | 469.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
