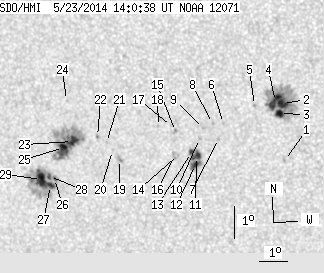

SDO HMI 2014-05-23 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.95 | 250.02 | 36.16 | 143.92 | -11.06 | 80.09 | -29.12 | 109.32 | 0.5067 | 99.9 | -27.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.65 | -11.69 | 84.93 | -24.28 | 113.64 | 0.4413 | 796.0 | 688.3 | |
| 7.30 | 79.62 | 4.00 | 43.68 | -9.94 | 85.01 | -24.19 | 109.89 | 0.4310 | 1294.2 | 507.4 | |
| 5.13 | -2.00 | 2.82 | -2.00 | -10.25 | 84.89 | -24.32 | 110.47 | 0.4343 | 835.0 | 999999 | |
| 10.00 | -2.00 | 5.49 | -2.00 | -9.88 | 84.78 | -24.42 | 109.59 | 0.4341 | 990.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -9.99 | 84.06 | -25.14 | 109.36 | 0.4454 | 718.0 | 608.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -10.53 | 82.95 | -26.25 | 109.80 | 0.4641 | 814.0 | 668.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -10.99 | 82.73 | -26.47 | 110.60 | 0.4694 | 626.0 | 589.6 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.52 | 82.57 | -26.63 | 109.56 | 0.4696 | 794.0 | 665.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -10.67 | 82.24 | -26.96 | 109.66 | 0.4750 | 865.0 | 688.8 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -10.98 | 82.07 | -27.13 | 110.18 | 0.4788 | 746.0 | 593.7 | |
| 5.13 | 19.73 | 2.90 | 11.16 | -11.53 | 81.91 | -27.29 | 111.18 | 0.4837 | 1056.2 | 729.6 | |
| 2.79 | -11.00 | 1.58 | -11.00 | -11.78 | 81.85 | -27.35 | 111.62 | 0.4858 | 901.8 | 999999 | |
| 1.98 | -11.00 | 1.12 | -11.00 | -11.40 | 81.75 | -27.45 | 110.83 | 0.4854 | 805.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -11.46 | 81.29 | -27.91 | 110.66 | 0.4923 | 469.0 | 382.0 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -10.75 | 81.26 | -27.94 | 109.25 | 0.4896 | 814.0 | 623.5 | |
| 0.00 | 2.97 | 0.00 | 1.69 | -11.49 | 81.15 | -28.06 | 110.63 | 0.4945 | 611.0 | 554.6 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -10.60 | 81.14 | -28.07 | 108.88 | 0.4907 | 643.0 | 487.4 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -10.59 | 80.68 | -28.52 | 108.62 | 0.4973 | 572.0 | 378.9 | |
| 0.00 | 2.88 | 0.00 | 1.67 | -11.58 | 79.18 | -30.02 | 109.71 | 0.5226 | -971.0 | -810.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -11.30 | 78.97 | -30.24 | 109.08 | 0.5246 | -634.0 | -504.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -11.05 | 78.78 | -30.42 | 108.53 | 0.5262 | -765.0 | -607.0 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -10.86 | 78.48 | -30.72 | 108.04 | 0.5297 | -850.0 | -791.1 | |
| 6.58 | 65.66 | 3.87 | 38.77 | -11.00 | 77.56 | -31.65 | 107.87 | 0.5432 | -1096.3 | -543.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -9.74 | 77.48 | -31.72 | 105.56 | 0.5400 | -632.0 | -487.8 | |
| 4.05 | -23.00 | 2.40 | -23.00 | -11.18 | 77.21 | -32.00 | 108.03 | 0.5488 | -938.7 | 999999 | |
| 0.99 | 62.33 | 0.59 | 37.39 | -12.13 | 76.75 | -32.45 | 109.49 | 0.5586 | -1040.0 | -304.1 | |
| 3.69 | -26.00 | 2.21 | -26.00 | -12.34 | 76.57 | -32.63 | 109.77 | 0.5619 | -982.9 | 999999 | |
| 1.71 | -26.00 | 1.02 | -26.00 | -12.07 | 76.58 | -32.63 | 109.29 | 0.5608 | -961.3 | 999999 | |
| 13.60 | -26.00 | 8.16 | -26.00 | -12.15 | 76.27 | -32.94 | 109.30 | 0.5653 | -907.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
