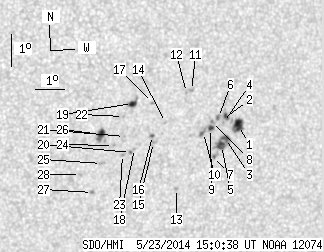

SDO HMI 2014-05-23 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.08 | 83.64 | 16.68 | 47.81 | -13.63 | 136.28 | 27.63 | 244.93 | 0.4993 | 149.1 | 140.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.83 | 13.42 | 5.13 | 7.80 | -13.36 | 138.28 | 29.63 | 246.83 | 0.5253 | 938.0 | 646.9 | |
| 1.80 | 3.06 | 1.04 | 1.77 | -13.08 | 137.82 | 29.17 | 247.04 | 0.5176 | 930.5 | 798.6 | |
| 2.97 | 15.31 | 1.72 | 8.88 | -13.77 | 137.87 | 29.22 | 245.83 | 0.5218 | 987.6 | 707.1 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.27 | 137.73 | 29.08 | 246.64 | 0.5174 | 962.0 | 835.4 | |
| 4.50 | -3.00 | 2.61 | -3.00 | -13.98 | 137.76 | 29.11 | 245.36 | 0.5214 | 973.9 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.30 | -13.12 | 137.54 | 28.89 | 246.80 | 0.5139 | 948.0 | 769.6 | |
| 0.36 | 2.88 | 0.21 | 1.67 | -14.33 | 137.52 | 28.87 | 244.58 | 0.5200 | 857.5 | 690.1 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -13.24 | 137.34 | 28.69 | 246.44 | 0.5118 | 983.0 | 820.6 | |
| 1.89 | 3.06 | 1.09 | 1.76 | -13.46 | 137.30 | 28.65 | 246.01 | 0.5123 | 1056.5 | 918.7 | |
| 0.00 | 3.42 | 0.00 | 1.97 | -13.59 | 137.06 | 28.41 | 245.62 | 0.5098 | 939.0 | 803.8 | |
| 0.00 | 2.07 | 0.00 | 1.18 | -12.30 | 136.48 | 27.83 | 247.67 | 0.4951 | 760.0 | 622.0 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -12.36 | 136.31 | 27.66 | 247.44 | 0.4930 | 706.0 | 585.8 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -15.34 | 136.34 | 27.69 | 241.91 | 0.5100 | 805.0 | 660.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -13.30 | 135.68 | 27.04 | 245.22 | 0.4892 | 558.0 | 447.7 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -13.92 | 135.34 | 26.69 | 243.77 | 0.4880 | -732.0 | -540.5 | |
| 0.45 | 1.53 | 0.25 | 0.87 | -13.70 | 135.28 | 26.63 | 244.13 | 0.4859 | -707.8 | -481.2 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -12.68 | 135.16 | 26.51 | 246.03 | 0.4785 | -628.0 | -470.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -14.11 | 134.70 | 26.05 | 242.89 | 0.4804 | -565.0 | -319.4 | |
| 3.33 | 6.84 | 1.87 | 3.84 | -12.72 | 134.47 | 25.82 | 245.44 | 0.4690 | -912.6 | -583.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -14.24 | 134.58 | 25.93 | 242.55 | 0.4795 | -754.0 | -647.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -13.75 | 134.31 | 25.66 | 243.29 | 0.4728 | -723.0 | -602.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -13.13 | 134.20 | 25.55 | 244.43 | 0.4676 | -539.0 | -378.8 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -14.31 | 134.31 | 25.66 | 242.20 | 0.4762 | -662.0 | -601.4 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -14.03 | 133.96 | 25.31 | 242.45 | 0.4697 | -807.0 | -638.8 | |
| 0.00 | 2.25 | 0.00 | 1.26 | -14.59 | 133.61 | 24.96 | 241.05 | 0.4686 | -811.0 | -621.8 | |
| 4.95 | 9.46 | 2.76 | 5.28 | -13.69 | 133.47 | 24.82 | 242.70 | 0.4609 | -1020.6 | -706.0 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -15.50 | 133.41 | 24.76 | 239.13 | 0.4721 | -893.0 | -676.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -14.94 | 132.93 | 24.28 | 239.74 | 0.4618 | -730.0 | -564.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
