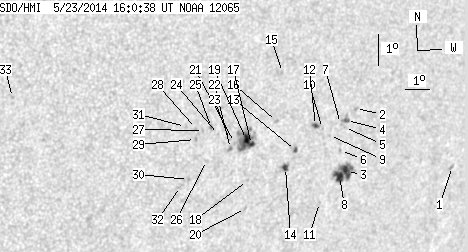

SDO HMI 2014-05-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.54 | 104.44 | 19.01 | 70.77 | -18.43 | 148.48 | 40.38 | 244.32 | 0.6834 | 456.3 | 292.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 1.11 | -18.77 | 156.05 | 47.95 | 246.69 | 0.7678 | 455.0 | 350.2 | |
| 0.00 | 1.98 | 0.00 | 1.39 | -17.03 | 151.05 | 42.95 | 247.34 | 0.7083 | 661.0 | 539.8 | |
| 6.66 | 27.20 | 4.72 | 19.25 | -19.02 | 151.26 | 43.16 | 244.72 | 0.7175 | 721.3 | 576.1 | |
| 1.44 | 4.41 | 1.01 | 3.08 | -17.41 | 150.77 | 42.67 | 246.71 | 0.7064 | 706.2 | 615.9 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -17.63 | 150.74 | 42.65 | 246.40 | 0.7069 | 556.0 | 502.1 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -18.36 | 150.79 | 42.69 | 245.43 | 0.7099 | 804.0 | 621.1 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -17.51 | 150.53 | 42.44 | 246.49 | 0.7041 | 235.0 | 273.0 | |
| 6.93 | -3.00 | 4.90 | -3.00 | -19.19 | 151.00 | 42.91 | 244.40 | 0.7153 | 846.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -17.90 | 150.17 | 42.07 | 245.82 | 0.7013 | 633.0 | 524.0 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -17.68 | 149.81 | 41.71 | 245.98 | 0.6964 | 524.0 | 523.0 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -20.03 | 150.40 | 42.30 | 243.03 | 0.7118 | 600.0 | 556.3 | |
| 1.53 | 3.24 | 1.05 | 2.22 | -17.59 | 149.48 | 41.39 | 245.97 | 0.6923 | 895.9 | 707.8 | |
| 0.99 | 2.16 | 0.67 | 1.47 | -18.40 | 148.86 | 40.77 | 244.60 | 0.6882 | 818.2 | 699.9 | |
| 2.79 | 5.76 | 1.90 | 3.92 | -18.94 | 148.60 | 40.50 | 243.73 | 0.6873 | 776.9 | 474.9 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -15.95 | 147.68 | 39.59 | 247.58 | 0.6651 | 425.0 | 390.9 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -17.49 | 147.82 | 39.72 | 245.42 | 0.6725 | -647.0 | -481.0 | |
| 2.34 | 31.70 | 1.55 | 20.90 | -18.24 | 146.98 | 38.88 | 243.99 | 0.6657 | -504.9 | -155.1 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -19.38 | 147.13 | 39.03 | 242.44 | 0.6724 | -255.0 | -317.6 | |
| 4.86 | -17.00 | 3.21 | -17.00 | -18.08 | 146.74 | 38.64 | 244.09 | 0.6622 | -733.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -20.28 | 147.31 | 39.21 | 241.28 | 0.6785 | 708.0 | 580.0 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -18.19 | 146.27 | 38.17 | 243.72 | 0.6571 | 570.0 | 485.2 | |
| 0.00 | 2.43 | 0.00 | 1.59 | -18.38 | 146.16 | 38.06 | 243.39 | 0.6566 | 914.0 | 710.7 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -18.09 | 146.04 | 37.95 | 243.75 | 0.6540 | 580.0 | 547.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -17.94 | 145.56 | 37.46 | 243.73 | 0.6476 | 673.0 | 487.3 | |
| 0.00 | 1.89 | 0.00 | 1.22 | -17.73 | 145.23 | 37.13 | 243.88 | 0.6426 | 816.0 | 693.9 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -18.77 | 145.29 | 37.19 | 242.38 | 0.6482 | 430.0 | 401.1 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -17.83 | 144.93 | 36.83 | 243.59 | 0.6395 | 672.0 | 538.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -17.77 | 144.64 | 36.54 | 243.52 | 0.6357 | 820.0 | 660.0 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -18.12 | 144.68 | 36.59 | 243.03 | 0.6379 | 599.0 | 559.8 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -19.39 | 144.72 | 36.63 | 241.19 | 0.6445 | 815.0 | 704.7 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -17.71 | 144.19 | 36.09 | 243.37 | 0.6300 | 471.0 | 497.1 | |
| 0.00 | 2.61 | 0.00 | 1.68 | -19.62 | 144.46 | 36.36 | 240.72 | 0.6426 | 672.0 | 552.6 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -16.89 | 137.47 | 29.37 | 240.48 | 0.5415 | -744.0 | -636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
