SDO HMI 2014-05-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.12 | 0.00 | 3.30 | -24.76 | 106.69 | -1.41 | 177.04 | 0.3962 | 73.0 | 183.1 | |
|
previous
or next observation for the same group /

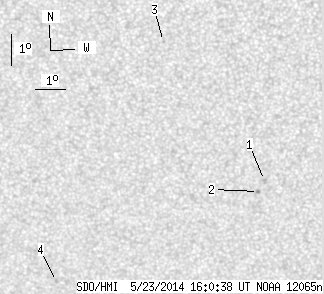

back to the solar disc SDO HMI 2014-05-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.70 | 0.00 | 1.45 | -24.52 | 108.92 | 0.82 | 181.92 | 0.3899 | 923.0 | 680.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -24.89 | 108.72 | 0.62 | 181.43 | 0.3956 | 937.0 | 742.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -20.01 | 105.63 | -2.46 | 172.67 | 0.3183 | -681.0 | -513.6 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -27.88 | 101.78 | -6.32 | 167.58 | 0.4539 | -887.0 | -717.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
