SDO HMI 2014-05-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.52 | 244.31 | 39.28 | 139.38 | -11.11 | 79.95 | -28.14 | 109.98 | 0.4931 | -119.5 | 44.7 | |
|
previous
or next observation for the same group /

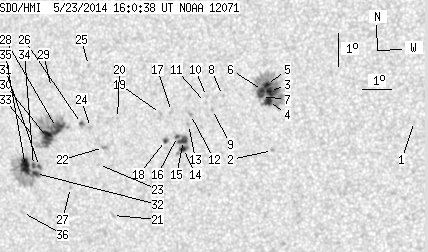

back to the solar disc SDO HMI 2014-05-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.14 | -10.93 | 89.74 | -18.36 | 117.64 | 0.3506 | 17.0 | 5.7 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -11.77 | 84.97 | -23.13 | 114.75 | 0.4252 | 929.0 | 631.2 | |
| 4.05 | 74.21 | 2.20 | 40.37 | -9.95 | 85.02 | -23.08 | 110.71 | 0.4145 | 1315.1 | 595.1 | |
| 4.68 | -3.00 | 2.55 | -3.00 | -10.26 | 84.96 | -23.14 | 111.37 | 0.4169 | 946.5 | 999999 | |
| 2.70 | -3.00 | 1.47 | -3.00 | -9.74 | 84.93 | -23.16 | 110.16 | 0.4147 | 1156.3 | 999999 | |
| 4.50 | -3.00 | 2.45 | -3.00 | -9.92 | 84.79 | -23.31 | 110.47 | 0.4178 | 938.7 | 999999 | |
| 0.27 | -3.00 | 0.15 | -3.00 | -10.10 | 84.74 | -23.36 | 110.85 | 0.4194 | 865.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -10.06 | 83.42 | -24.67 | 109.82 | 0.4387 | 704.0 | 529.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -10.48 | 83.05 | -25.05 | 110.48 | 0.4463 | 783.0 | 665.6 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -10.08 | 82.88 | -25.22 | 109.51 | 0.4469 | 701.0 | 447.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -10.26 | 82.83 | -25.27 | 109.87 | 0.4485 | 664.0 | 472.4 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -10.62 | 82.28 | -25.81 | 110.28 | 0.4582 | 782.0 | 577.8 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -10.93 | 82.18 | -25.91 | 110.85 | 0.4610 | 783.0 | 604.3 | |
| 2.88 | 14.86 | 1.61 | 8.32 | -11.67 | 81.94 | -26.16 | 112.20 | 0.4682 | 901.3 | 751.3 | |
| 4.32 | -14.00 | 2.42 | -14.00 | -11.42 | 81.96 | -26.13 | 111.71 | 0.4666 | 1084.6 | 999999 | |
| 1.08 | -14.00 | 0.61 | -14.00 | -11.29 | 81.77 | -26.33 | 111.33 | 0.4688 | 895.3 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.21 | -10.52 | 81.64 | -26.46 | 109.67 | 0.4671 | 745.0 | 546.6 | |
| 1.35 | 2.79 | 0.76 | 1.57 | -11.41 | 81.34 | -26.75 | 111.29 | 0.4755 | 845.7 | 657.1 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -10.58 | 81.25 | -26.84 | 109.55 | 0.4730 | 808.0 | 574.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -10.71 | 79.74 | -28.36 | 108.95 | 0.4954 | -785.0 | -707.0 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -13.70 | 79.20 | -28.89 | 114.27 | 0.5170 | 571.0 | 455.3 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -11.60 | 79.15 | -28.95 | 110.32 | 0.5076 | -868.0 | -736.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -12.12 | 78.91 | -29.19 | 111.16 | 0.5133 | -663.0 | -546.5 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -10.97 | 78.76 | -29.34 | 108.93 | 0.5106 | -960.0 | -639.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -9.07 | 78.88 | -29.22 | 105.33 | 0.5018 | -717.0 | -627.6 | |
| 0.90 | 2.43 | 0.52 | 1.40 | -10.85 | 78.45 | -29.65 | 108.53 | 0.5144 | -879.5 | -781.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -12.81 | 77.81 | -30.28 | 111.81 | 0.5317 | -695.0 | -648.2 | |
| 10.90 | 60.88 | 6.35 | 35.56 | -10.95 | 77.54 | -30.55 | 108.29 | 0.5277 | -1041.4 | -439.9 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -9.72 | 77.50 | -30.60 | 105.99 | 0.5239 | -663.0 | -561.0 | |
| 12.88 | -28.00 | 7.54 | -28.00 | -11.26 | 77.18 | -30.91 | 108.67 | 0.5339 | -882.2 | 999999 | |
| 1.17 | 62.50 | 0.69 | 37.04 | -12.15 | 76.78 | -31.32 | 110.07 | 0.5431 | -1023.8 | -323.7 | |
| 2.88 | -31.00 | 1.70 | -31.00 | -12.36 | 76.61 | -31.49 | 110.36 | 0.5464 | -970.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -11.25 | 76.71 | -31.38 | 108.44 | 0.5405 | -328.0 | -308.8 | |
| 1.44 | -31.00 | 0.85 | -31.00 | -12.11 | 76.57 | -31.53 | 109.90 | 0.5459 | -1036.9 | 999999 | |
| 12.52 | -31.00 | 7.41 | -31.00 | -12.14 | 76.27 | -31.83 | 109.80 | 0.5501 | -935.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.08 | -13.56 | 75.95 | -32.14 | 112.10 | 0.5603 | -685.0 | -533.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
