SDO HMI 2014-05-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.41 | 83.20 | 13.50 | 47.82 | -13.63 | 136.44 | 28.34 | 245.42 | 0.5091 | 74.1 | 201.8 | |
|
previous
or next observation for the same group /

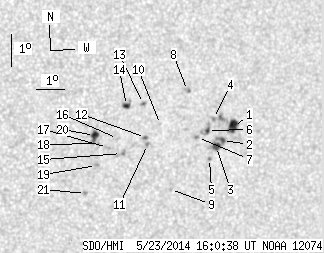

back to the solar disc SDO HMI 2014-05-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.38 | 18.19 | 4.90 | 10.62 | -13.35 | 138.34 | 30.24 | 247.21 | 0.5337 | 897.5 | 704.4 | |
| 1.71 | 14.14 | 1.00 | 8.24 | -13.79 | 138.00 | 29.91 | 246.22 | 0.5312 | 913.2 | 759.3 | |
| 3.87 | -2.00 | 2.26 | -2.00 | -13.98 | 137.81 | 29.72 | 245.77 | 0.5296 | 934.5 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.51 | -13.11 | 137.59 | 29.49 | 247.19 | 0.5222 | 932.0 | 748.4 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -14.35 | 137.62 | 29.52 | 244.97 | 0.5289 | 849.0 | 730.6 | |
| 1.53 | 8.56 | 0.89 | 4.96 | -13.48 | 137.42 | 29.33 | 246.41 | 0.5218 | 1043.2 | 829.9 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -13.71 | 137.10 | 29.00 | 245.79 | 0.5184 | 934.0 | 790.6 | |
| 0.00 | 2.70 | 0.00 | 1.55 | -12.26 | 136.56 | 28.46 | 248.14 | 0.5038 | 765.0 | 694.3 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -15.34 | 136.36 | 28.26 | 242.35 | 0.5176 | 724.0 | 553.6 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -13.32 | 135.73 | 27.63 | 245.59 | 0.4976 | 620.0 | 507.3 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -13.94 | 135.35 | 27.26 | 244.14 | 0.4959 | -759.0 | -607.9 | |
| 0.54 | 1.89 | 0.31 | 1.08 | -13.73 | 135.25 | 27.16 | 244.48 | 0.4933 | -725.5 | -494.2 | |
| 0.45 | 1.98 | 0.25 | 1.12 | -12.68 | 135.06 | 26.96 | 246.36 | 0.4848 | -626.2 | -468.6 | |
| 2.25 | 5.49 | 1.27 | 3.09 | -12.75 | 134.47 | 26.38 | 245.80 | 0.4770 | -951.6 | -699.2 | |
| 0.00 | 4.41 | 0.00 | 2.50 | -14.23 | 134.48 | 26.38 | 242.93 | 0.4856 | -766.0 | -645.6 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -13.77 | 134.28 | 26.18 | 243.66 | 0.4801 | -657.0 | -557.9 | |
| 0.00 | 2.52 | 0.00 | 1.42 | -14.05 | 133.97 | 25.87 | 242.86 | 0.4775 | -758.0 | -622.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -13.93 | 133.64 | 25.54 | 242.83 | 0.4723 | -738.0 | -612.7 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -14.62 | 133.65 | 25.55 | 241.52 | 0.4768 | -823.0 | -683.5 | |
| 4.68 | 7.66 | 2.62 | 4.29 | -13.69 | 133.47 | 25.37 | 243.17 | 0.4685 | -1005.6 | -758.6 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -15.50 | 133.38 | 25.28 | 239.62 | 0.4790 | -986.0 | -779.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
