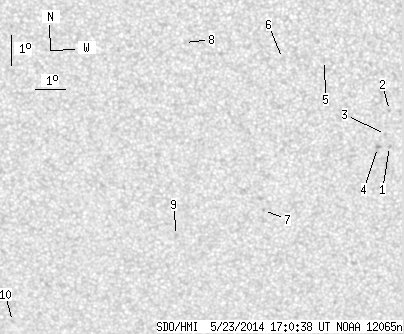

SDO HMI 2014-05-23 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.87 | 0.00 | 7.00 | -25.38 | 104.87 | -2.68 | 174.92 | 0.4098 | 265.4 | 169.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.58 | -24.89 | 109.07 | 1.52 | 183.50 | 0.3963 | 783.0 | 669.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -23.70 | 109.05 | 1.51 | 183.68 | 0.3772 | 782.0 | 607.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -24.49 | 108.93 | 1.38 | 183.25 | 0.3898 | 979.0 | 683.8 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -24.92 | 108.66 | 1.12 | 182.58 | 0.3965 | 999.0 | 774.1 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -22.07 | 106.91 | -0.64 | 178.31 | 0.3499 | 5.0 | -8.8 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -22.00 | 105.53 | -2.01 | 174.65 | 0.3502 | -2.0 | 4.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -27.01 | 104.80 | -2.75 | 174.30 | 0.4316 | 715.0 | 577.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -21.48 | 102.34 | -5.20 | 166.00 | 0.3505 | -12.0 | -1.9 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -27.85 | 101.78 | -5.76 | 168.62 | 0.4516 | -846.0 | -562.2 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -30.76 | 95.74 | -11.80 | 160.14 | 0.5193 | -749.0 | -563.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
