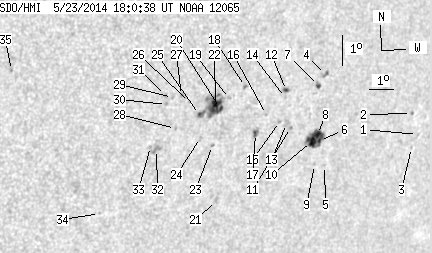

SDO HMI 2014-05-23 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.01 | 109.39 | 25.88 | 75.53 | -18.54 | 148.56 | 41.58 | 244.65 | 0.6975 | 369.8 | 295.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 1.06 | -18.81 | 156.03 | 49.04 | 246.96 | 0.7790 | 345.0 | 373.1 | |
| 0.00 | 1.26 | 0.00 | 0.98 | -18.15 | 155.48 | 48.49 | 247.63 | 0.7718 | 656.0 | 618.0 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -19.23 | 155.90 | 48.91 | 246.40 | 0.7788 | 254.0 | 284.9 | |
| 0.00 | 3.51 | 0.00 | 2.50 | -17.00 | 151.12 | 44.13 | 247.78 | 0.7216 | 633.0 | 520.6 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -19.88 | 152.02 | 45.03 | 244.29 | 0.7407 | 439.0 | 336.9 | |
| 3.78 | 24.77 | 2.74 | 17.89 | -19.09 | 151.51 | 44.52 | 245.14 | 0.7326 | 493.4 | 471.0 | |
| 1.35 | 3.06 | 0.96 | 2.18 | -17.35 | 150.91 | 43.92 | 247.24 | 0.7204 | 661.0 | 562.0 | |
| 5.58 | -6.00 | 4.04 | -6.00 | -18.90 | 151.36 | 44.37 | 245.33 | 0.7303 | 724.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -19.86 | 151.55 | 44.57 | 244.15 | 0.7357 | 452.0 | 348.2 | |
| 8.92 | -6.00 | 6.43 | -6.00 | -19.13 | 151.17 | 44.18 | 244.96 | 0.7290 | 844.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -18.70 | 150.09 | 43.10 | 245.12 | 0.7157 | 580.0 | 543.5 | |
| 1.26 | 2.25 | 0.88 | 1.57 | -17.53 | 149.56 | 42.57 | 246.50 | 0.7057 | 829.1 | 665.6 | |
| 0.00 | 4.32 | 0.00 | 3.04 | -18.58 | 149.88 | 42.89 | 245.21 | 0.7129 | 310.0 | 318.0 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -17.76 | 149.58 | 42.60 | 246.21 | 0.7067 | 514.0 | 478.8 | |
| 0.00 | 1.71 | 0.00 | 1.20 | -18.52 | 149.55 | 42.56 | 245.16 | 0.7091 | 589.0 | 496.0 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -18.31 | 148.92 | 41.94 | 245.20 | 0.7012 | 719.0 | 590.2 | |
| 1.53 | 3.87 | 1.06 | 2.68 | -18.92 | 148.63 | 41.65 | 244.25 | 0.7003 | 830.1 | 636.6 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -17.44 | 147.78 | 40.79 | 245.94 | 0.6849 | -509.0 | -408.2 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -17.83 | 147.22 | 40.23 | 245.16 | 0.6798 | -589.0 | -500.6 | |
| 1.80 | 35.21 | 1.21 | 23.53 | -18.15 | 146.93 | 39.94 | 244.58 | 0.6777 | -458.8 | -29.6 | |
| 0.00 | 2.52 | 0.00 | 1.74 | -21.08 | 147.65 | 40.66 | 240.87 | 0.6982 | 539.0 | 384.4 | |
| 11.71 | -20.00 | 7.84 | -20.00 | -18.09 | 146.70 | 39.72 | 244.56 | 0.6749 | -400.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -19.33 | 146.93 | 39.94 | 242.93 | 0.6826 | -548.0 | -483.4 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -19.08 | 146.35 | 39.37 | 243.01 | 0.6750 | 586.0 | 504.3 | |
| 1.08 | -20.00 | 0.72 | -20.00 | -18.36 | 146.11 | 39.12 | 243.92 | 0.6690 | 808.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -17.98 | 145.60 | 38.61 | 244.22 | 0.6615 | 620.0 | 532.4 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -17.77 | 145.22 | 38.23 | 244.35 | 0.6560 | 682.0 | 643.7 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -18.82 | 145.25 | 38.26 | 242.86 | 0.6609 | 547.0 | 442.0 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -17.84 | 144.87 | 37.88 | 244.08 | 0.6522 | 463.0 | 484.8 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -18.06 | 144.69 | 37.70 | 243.67 | 0.6509 | 784.0 | 653.9 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -17.78 | 144.57 | 37.59 | 244.03 | 0.6484 | 775.0 | 620.5 | |
| 0.00 | 5.04 | 0.00 | 3.31 | -19.49 | 144.66 | 37.67 | 241.59 | 0.6572 | 844.0 | 708.0 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -19.40 | 144.39 | 37.40 | 241.58 | 0.6536 | 564.0 | 504.3 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -21.58 | 142.93 | 35.94 | 237.67 | 0.6482 | 674.0 | 447.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -17.08 | 138.46 | 31.47 | 241.63 | 0.5694 | -581.0 | -465.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
