SDO HMI 2014-05-23 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.89 | 8.91 | 1.00 | 4.82 | -24.60 | 108.52 | 1.53 | 183.58 | 0.3952 | 264.1 | 271.3 | |
|
previous
or next observation for the same group /

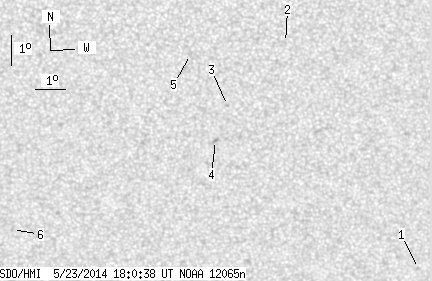

back to the solar disc SDO HMI 2014-05-23 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.56 | -29.21 | 115.84 | 8.85 | 196.19 | 0.4834 | 586.0 | 430.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.71 | 110.93 | 3.94 | 190.57 | 0.3499 | -12.0 | 0.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -23.76 | 109.06 | 2.08 | 185.04 | 0.3789 | 838.0 | 655.7 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -24.91 | 108.68 | 1.69 | 183.88 | 0.3970 | 939.0 | 768.0 | |
| 1.89 | 2.43 | 1.00 | 1.29 | -22.10 | 107.83 | 0.84 | 182.23 | 0.3506 | -16.5 | 0.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -27.88 | 101.74 | -5.25 | 169.63 | 0.4506 | -750.0 | -544.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
