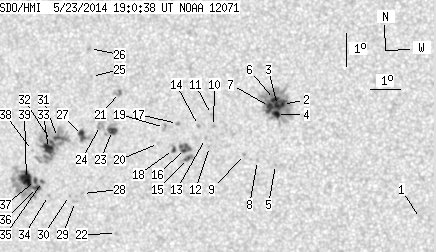

SDO HMI 2014-05-23 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.47 | 290.67 | 35.12 | 163.06 | -11.00 | 80.12 | -26.31 | 110.95 | 0.4665 | -31.9 | -21.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.90 | -13.50 | 89.56 | -16.87 | 126.12 | 0.3509 | -27.0 | -7.8 | |
| 1.98 | 85.73 | 1.06 | 46.06 | -9.94 | 85.29 | -21.14 | 112.27 | 0.3856 | 1455.6 | 512.5 | |
| 4.68 | -2.00 | 2.51 | -2.00 | -9.97 | 85.12 | -21.31 | 112.19 | 0.3882 | 1364.2 | 999999 | |
| 3.87 | -2.00 | 2.08 | -2.00 | -10.24 | 85.07 | -21.36 | 112.81 | 0.3906 | 1028.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -11.78 | 84.92 | -21.52 | 116.28 | 0.4021 | 759.0 | 556.9 | |
| 2.61 | -2.00 | 1.40 | -2.00 | -9.78 | 85.04 | -21.40 | 111.67 | 0.3885 | 1193.9 | 999999 | |
| 4.95 | -2.00 | 2.67 | -2.00 | -9.99 | 84.86 | -21.58 | 112.03 | 0.3924 | 918.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -11.65 | 84.33 | -22.11 | 115.42 | 0.4098 | 749.0 | 572.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -11.46 | 83.91 | -22.53 | 114.61 | 0.4147 | 872.0 | 760.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -10.59 | 82.94 | -23.49 | 111.85 | 0.4240 | 874.0 | 669.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -10.22 | 82.90 | -23.53 | 110.99 | 0.4226 | 829.0 | 713.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.20 | 82.75 | -23.68 | 113.06 | 0.4300 | 656.0 | 438.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -10.95 | 82.64 | -23.80 | 112.43 | 0.4303 | 736.0 | 607.6 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -10.55 | 82.44 | -24.00 | 111.39 | 0.4312 | 807.0 | 660.3 | |
| 1.53 | 5.94 | 0.85 | 3.28 | -11.56 | 81.97 | -24.46 | 113.22 | 0.4433 | 930.2 | 707.6 | |
| 4.23 | 9.19 | 2.34 | 5.07 | -11.25 | 81.93 | -24.50 | 112.53 | 0.4422 | 1061.5 | 848.4 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -10.48 | 81.73 | -24.70 | 110.73 | 0.4412 | 891.0 | 730.4 | |
| 1.35 | 3.60 | 0.75 | 1.99 | -11.28 | 81.52 | -24.91 | 112.28 | 0.4483 | 737.9 | 526.8 | |
| 0.00 | 3.15 | 0.00 | 1.75 | -10.60 | 81.28 | -25.16 | 110.67 | 0.4484 | 706.0 | 522.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -11.08 | 81.03 | -25.41 | 111.53 | 0.4545 | 418.0 | 345.2 | |
| 0.63 | 4.77 | 0.35 | 2.67 | -9.50 | 79.83 | -26.60 | 107.48 | 0.4650 | 854.4 | 628.7 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -13.84 | 79.26 | -27.17 | 115.74 | 0.4942 | 723.0 | 520.9 | |
| 4.32 | 10.63 | 2.43 | 5.98 | -10.66 | 79.48 | -26.95 | 109.67 | 0.4749 | -1032.6 | -486.8 | |
| 0.00 | 5.67 | 0.00 | 3.20 | -10.50 | 79.08 | -27.35 | 109.11 | 0.4801 | -448.0 | -473.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -9.00 | 78.90 | -27.53 | 105.96 | 0.4768 | -557.0 | -454.4 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -8.14 | 78.90 | -27.53 | 104.20 | 0.4739 | -733.0 | -675.2 | |
| 4.41 | 7.29 | 2.51 | 4.14 | -10.80 | 78.42 | -28.01 | 109.33 | 0.4909 | -979.0 | -766.3 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -12.59 | 78.22 | -28.21 | 112.65 | 0.5020 | -725.0 | -578.9 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -12.83 | 77.94 | -28.49 | 112.93 | 0.5071 | -736.0 | -568.5 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -12.64 | 77.75 | -28.68 | 112.46 | 0.5088 | -661.0 | -586.1 | |
| 2.34 | 69.16 | 1.34 | 39.72 | -10.85 | 77.54 | -28.90 | 108.94 | 0.5038 | -1000.5 | -542.2 | |
| 0.90 | -31.00 | 0.52 | -31.00 | -10.97 | 77.31 | -29.12 | 109.05 | 0.5075 | -913.9 | 999999 | |
| 7.38 | -31.00 | 4.25 | -31.00 | -11.18 | 77.18 | -29.25 | 109.39 | 0.5102 | -966.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -12.63 | 77.01 | -29.43 | 111.99 | 0.5191 | -756.0 | -604.6 | |
| 0.81 | 61.96 | 0.47 | 36.09 | -12.20 | 76.85 | -29.59 | 111.10 | 0.5193 | -993.9 | -293.2 | |
| 2.97 | -35.00 | 1.73 | -35.00 | -12.38 | 76.61 | -29.83 | 111.30 | 0.5234 | -981.4 | 999999 | |
| 1.35 | -35.00 | 0.78 | -35.00 | -12.16 | 76.60 | -29.83 | 110.89 | 0.5226 | -1111.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -11.24 | 76.60 | -29.83 | 109.19 | 0.5186 | -561.0 | -436.6 | |
| 12.16 | -35.00 | 7.08 | -35.00 | -12.13 | 76.28 | -30.15 | 110.65 | 0.5269 | -983.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
