SDO HMI 2014-05-23 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.26 | 231.42 | 38.61 | 157.74 | -11.15 | 63.92 | -42.52 | 104.54 | 0.6862 | 334.9 | 162.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

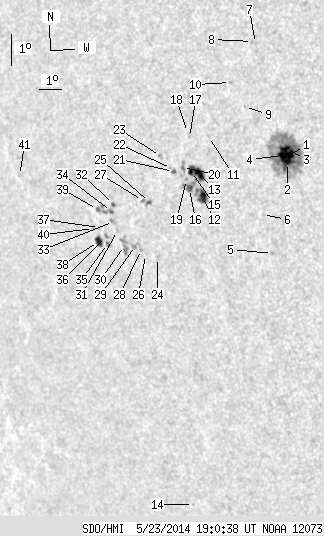

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.66 | 115.99 | 4.32 | 75.41 | -10.46 | 66.99 | -39.45 | 104.28 | 0.6470 | 1262.4 | 381.5 | |
| 4.50 | -1.00 | 2.93 | -1.00 | -10.70 | 66.83 | -39.61 | 104.61 | 0.6496 | 906.0 | 999999 | |
| 4.50 | -1.00 | 2.92 | -1.00 | -10.27 | 66.81 | -39.62 | 103.95 | 0.6488 | 1087.4 | 999999 | |
| 5.22 | -1.00 | 3.40 | -1.00 | -10.48 | 66.66 | -39.77 | 104.23 | 0.6513 | 933.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -13.49 | 65.70 | -40.73 | 108.44 | 0.6711 | 796.0 | 664.5 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -12.28 | 65.53 | -40.90 | 106.61 | 0.6699 | 561.0 | 461.1 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -7.04 | 66.03 | -40.41 | 98.85 | 0.6534 | -728.0 | -505.8 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -6.97 | 65.91 | -40.52 | 98.74 | 0.6548 | -561.0 | -512.4 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -8.95 | 65.34 | -41.09 | 101.63 | 0.6651 | 622.0 | 469.6 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -8.20 | 64.87 | -41.56 | 100.43 | 0.6700 | -704.0 | -586.2 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -9.84 | 63.72 | -42.72 | 102.61 | 0.6872 | -590.0 | -478.8 | |
| 7.74 | 14.50 | 5.34 | 10.01 | -11.67 | 63.13 | -43.30 | 105.11 | 0.6980 | 749.5 | 536.6 | |
| 9.19 | 27.47 | 6.33 | 18.99 | -10.96 | 63.10 | -43.34 | 104.09 | 0.6969 | 1032.5 | 566.1 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -21.33 | 59.83 | -46.60 | 116.99 | 0.7618 | 597.0 | 518.5 | |
| 3.96 | -13.00 | 2.74 | -13.00 | -10.90 | 62.81 | -43.62 | 103.93 | 0.7003 | 794.5 | 999999 | |
| 2.88 | -13.00 | 2.00 | -13.00 | -11.42 | 62.63 | -43.81 | 104.62 | 0.7036 | 616.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -9.85 | 62.91 | -43.52 | 102.47 | 0.6972 | -426.0 | -348.2 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -9.70 | 62.85 | -43.58 | 102.24 | 0.6976 | -471.0 | -487.0 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -11.14 | 62.55 | -43.88 | 104.21 | 0.7039 | 566.0 | 440.3 | |
| 0.54 | 6.12 | 0.38 | 4.26 | -10.77 | 62.45 | -43.98 | 103.67 | 0.7044 | 616.0 | 460.0 | |
| 0.81 | 2.16 | 0.57 | 1.51 | -10.88 | 62.04 | -44.40 | 103.74 | 0.7096 | 565.8 | 420.7 | |
| 0.00 | 1.71 | 0.00 | 1.20 | -10.79 | 61.97 | -44.46 | 103.60 | 0.7102 | 396.0 | 322.4 | |
| 0.00 | 2.34 | 0.00 | 1.65 | -10.41 | 61.56 | -44.87 | 102.99 | 0.7145 | 541.0 | 429.6 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -13.52 | 60.75 | -45.68 | 107.07 | 0.7300 | -425.0 | -303.5 | |
| 0.99 | 2.79 | 0.71 | 2.01 | -11.81 | 60.79 | -45.64 | 104.77 | 0.7260 | 585.5 | 396.0 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -13.41 | 60.24 | -46.20 | 106.81 | 0.7356 | -518.0 | -491.2 | |
| 0.00 | 2.16 | 0.00 | 1.56 | -11.74 | 60.49 | -45.94 | 104.61 | 0.7294 | 646.0 | 447.3 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -13.25 | 60.10 | -46.34 | 106.56 | 0.7369 | -680.0 | -595.4 | |
| 0.00 | 4.14 | 0.00 | 3.04 | -13.12 | 59.86 | -46.58 | 106.33 | 0.7394 | -680.0 | -690.4 | |
| 0.00 | 9.28 | 0.00 | 6.86 | -13.11 | 59.36 | -47.08 | 106.21 | 0.7450 | -687.0 | -642.2 | |
| 0.00 | 1.53 | 0.00 | 1.14 | -12.64 | 59.15 | -47.28 | 105.54 | 0.7464 | -723.0 | -589.7 | |
| 0.90 | 2.16 | 0.67 | 1.60 | -11.84 | 59.16 | -47.27 | 104.47 | 0.7448 | -840.5 | -707.3 | |
| 0.00 | 2.79 | 0.00 | 2.07 | -12.36 | 59.04 | -47.40 | 105.14 | 0.7472 | -623.0 | -622.5 | |
| 0.81 | 8.74 | 0.60 | 6.52 | -12.05 | 59.02 | -47.42 | 104.73 | 0.7468 | -845.7 | -645.4 | |
| 0.90 | 3.15 | 0.68 | 2.36 | -13.03 | 58.59 | -47.84 | 105.94 | 0.7534 | -619.4 | -449.6 | |
| 0.63 | 1.71 | 0.47 | 1.28 | -12.82 | 58.60 | -47.84 | 105.65 | 0.7529 | -687.9 | -573.5 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -12.53 | 58.34 | -48.09 | 105.23 | 0.7552 | -300.0 | -387.2 | |
| 4.95 | 7.38 | 3.74 | 5.58 | -12.96 | 58.19 | -48.25 | 105.76 | 0.7577 | -539.7 | -245.4 | |
| 1.08 | -34.00 | 0.81 | -34.00 | -11.98 | 58.39 | -48.05 | 104.50 | 0.7537 | -555.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -12.56 | 58.06 | -48.38 | 105.20 | 0.7584 | -314.0 | -293.4 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -10.85 | 54.90 | -51.54 | 102.48 | 0.7898 | 322.0 | 415.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
