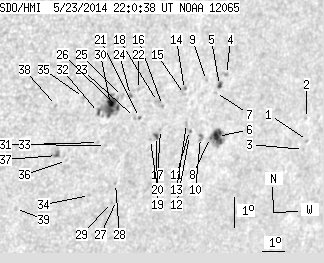

SDO HMI 2014-05-23 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.89 | 101.66 | 15.18 | 72.87 | -18.48 | 148.65 | 43.88 | 245.63 | 0.7232 | 348.2 | 218.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.74 | -18.95 | 156.03 | 51.26 | 247.39 | 0.8014 | 397.0 | 353.7 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -18.25 | 155.69 | 50.92 | 248.15 | 0.7965 | 607.0 | 446.4 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -19.24 | 155.95 | 51.18 | 247.01 | 0.8013 | 336.0 | 307.0 | |
| 0.00 | 1.80 | 0.00 | 1.34 | -16.95 | 151.33 | 46.57 | 248.60 | 0.7483 | 522.0 | 453.0 | |
| 1.80 | 3.42 | 1.34 | 2.54 | -17.30 | 151.12 | 46.35 | 248.08 | 0.7470 | 485.0 | 363.4 | |
| 9.73 | 20.81 | 7.34 | 15.72 | -18.91 | 151.59 | 46.82 | 246.14 | 0.7566 | 725.4 | 370.6 | |
| 0.00 | 1.35 | 0.00 | 1.00 | -17.52 | 151.01 | 46.24 | 247.76 | 0.7464 | 561.0 | 406.5 | |
| 0.36 | -6.00 | 0.27 | -6.00 | -18.95 | 151.27 | 46.50 | 245.99 | 0.7534 | 774.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -17.15 | 150.48 | 45.71 | 248.07 | 0.7396 | 576.0 | 529.4 | |
| 0.00 | 3.51 | 0.00 | 2.62 | -18.96 | 150.81 | 46.04 | 245.83 | 0.7485 | 635.0 | 544.0 | |
| 0.00 | 1.53 | 0.00 | 1.13 | -18.74 | 150.23 | 45.46 | 245.91 | 0.7417 | 698.0 | 636.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -18.90 | 150.28 | 45.51 | 245.72 | 0.7427 | 307.0 | 282.7 | |
| 0.00 | 1.44 | 0.00 | 1.06 | -18.52 | 150.01 | 45.25 | 246.12 | 0.7387 | 779.0 | 660.8 | |
| 0.00 | 2.25 | 0.00 | 1.63 | -17.45 | 149.58 | 44.81 | 247.38 | 0.7306 | 804.0 | 688.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -17.61 | 149.63 | 44.86 | 247.19 | 0.7316 | 630.0 | 625.0 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -17.98 | 148.75 | 43.99 | 246.40 | 0.7231 | 634.0 | 575.9 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -18.74 | 148.91 | 44.14 | 245.45 | 0.7274 | -143.0 | -22.8 | |
| 0.00 | 2.52 | 0.00 | 1.79 | -17.85 | 148.49 | 43.73 | 246.48 | 0.7199 | 539.0 | 464.5 | |
| 1.35 | 2.97 | 0.97 | 2.14 | -18.96 | 148.80 | 44.04 | 245.11 | 0.7270 | 686.3 | 529.4 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -19.06 | 148.57 | 43.80 | 244.89 | 0.7248 | 704.0 | 601.2 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -18.37 | 147.86 | 43.09 | 245.54 | 0.7146 | -381.0 | -321.4 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -17.49 | 147.55 | 42.78 | 246.62 | 0.7081 | -393.0 | -410.8 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -18.38 | 147.64 | 42.87 | 245.46 | 0.7121 | -510.0 | -479.0 | |
| 0.36 | 1.62 | 0.25 | 1.13 | -17.69 | 147.26 | 42.49 | 246.25 | 0.7054 | -611.8 | -504.3 | |
| 0.00 | 2.25 | 0.00 | 1.56 | -17.72 | 146.93 | 42.16 | 246.07 | 0.7017 | -661.0 | -475.1 | |
| 0.90 | 33.78 | 0.62 | 23.28 | -18.07 | 146.81 | 42.04 | 245.54 | 0.7017 | -412.7 | -51.6 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -21.04 | 147.73 | 42.96 | 241.95 | 0.7231 | 461.0 | 397.1 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -20.49 | 147.50 | 42.73 | 242.57 | 0.7184 | 530.0 | 372.4 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -21.10 | 147.53 | 42.77 | 241.78 | 0.7212 | 380.0 | 333.0 | |
| 4.32 | -26.00 | 2.98 | -26.00 | -17.95 | 146.48 | 41.71 | 245.58 | 0.6974 | -748.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -19.29 | 146.66 | 41.89 | 243.83 | 0.7045 | -124.0 | -128.9 | |
| 1.17 | -26.00 | 0.80 | -26.00 | -18.25 | 146.05 | 41.28 | 245.00 | 0.6936 | 711.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -19.20 | 146.33 | 41.56 | 243.82 | 0.7005 | 514.0 | 382.3 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -20.90 | 146.49 | 41.72 | 241.60 | 0.7091 | 489.0 | 374.7 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -17.78 | 145.28 | 40.51 | 245.32 | 0.6830 | 647.0 | 557.5 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -19.79 | 145.15 | 40.38 | 242.48 | 0.6896 | 503.0 | 424.7 | |
| 0.90 | 4.14 | 0.61 | 2.80 | -19.64 | 144.68 | 39.91 | 242.47 | 0.6837 | 803.1 | 714.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -18.06 | 144.23 | 39.46 | 244.48 | 0.6718 | 632.0 | 572.0 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -21.37 | 143.48 | 38.71 | 239.51 | 0.6782 | 322.0 | 315.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
