SDO HMI 2014-05-23 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.48 | 250.19 | 43.88 | 166.23 | -11.23 | 63.93 | -40.84 | 105.10 | 0.6656 | 401.4 | 212.7 | |
|
previous
or next observation for the same group /

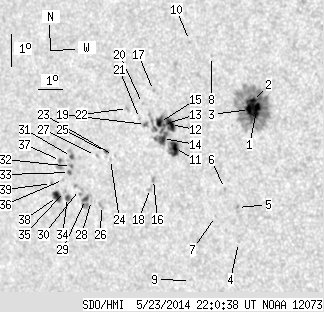

back to the solar disc SDO HMI 2014-05-23 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.19 | 120.43 | 5.82 | 76.47 | -10.54 | 66.96 | -37.80 | 104.89 | 0.6258 | 1167.5 | 391.0 | |
| 4.77 | -1.00 | 3.03 | -1.00 | -10.26 | 66.85 | -37.92 | 104.41 | 0.6266 | 1032.1 | 999999 | |
| 7.93 | -1.00 | 5.04 | -1.00 | -10.50 | 66.69 | -38.07 | 104.75 | 0.6293 | 915.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -14.60 | 65.51 | -39.25 | 110.60 | 0.6564 | 537.0 | 476.8 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -13.52 | 65.70 | -39.07 | 109.05 | 0.6506 | 795.0 | 681.5 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -12.92 | 65.29 | -39.48 | 108.02 | 0.6539 | 518.0 | 425.6 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -13.78 | 64.75 | -40.02 | 109.11 | 0.6632 | 542.0 | 430.8 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -8.85 | 65.42 | -39.35 | 101.86 | 0.6424 | 793.0 | 622.6 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -15.75 | 63.26 | -41.51 | 111.43 | 0.6875 | 357.0 | 300.0 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -8.35 | 64.60 | -40.16 | 100.91 | 0.6522 | -330.0 | -414.5 | |
| 9.01 | 14.59 | 6.02 | 9.76 | -11.65 | 63.48 | -41.29 | 105.59 | 0.6732 | 771.1 | 438.4 | |
| 7.39 | 45.04 | 4.93 | 30.22 | -10.90 | 63.45 | -41.32 | 104.49 | 0.6719 | 990.2 | 543.1 | |
| 0.90 | -12.00 | 0.60 | -12.00 | -10.90 | 63.16 | -41.61 | 104.41 | 0.6755 | 1017.4 | 999999 | |
| 7.12 | -12.00 | 4.78 | -12.00 | -11.33 | 63.04 | -41.73 | 105.01 | 0.6780 | 717.9 | 999999 | |
| 4.14 | -12.00 | 2.78 | -12.00 | -10.83 | 63.01 | -41.76 | 104.28 | 0.6773 | 851.5 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.47 | -12.58 | 62.42 | -42.35 | 106.66 | 0.6885 | 566.0 | 455.0 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -9.85 | 62.92 | -41.85 | 102.82 | 0.6764 | -561.0 | -391.2 | |
| 0.00 | 2.79 | 0.00 | 1.91 | -12.86 | 62.24 | -42.53 | 107.00 | 0.6915 | 511.0 | 322.7 | |
| 0.81 | 2.52 | 0.55 | 1.71 | -10.88 | 62.41 | -42.36 | 104.21 | 0.6848 | 623.3 | 446.8 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -10.24 | 62.40 | -42.37 | 103.27 | 0.6837 | 636.0 | 552.6 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -10.69 | 62.19 | -42.58 | 103.89 | 0.6871 | 472.0 | 368.4 | |
| 0.00 | 2.07 | 0.00 | 1.42 | -10.38 | 61.74 | -43.03 | 103.33 | 0.6921 | 431.0 | 380.6 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -11.81 | 60.87 | -43.90 | 105.17 | 0.7055 | 558.0 | 597.8 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -11.93 | 60.72 | -44.05 | 105.30 | 0.7076 | 364.0 | 199.9 | |
| 0.81 | 1.98 | 0.57 | 1.39 | -11.68 | 60.55 | -44.22 | 104.91 | 0.7090 | 663.6 | 492.9 | |
| 0.00 | 2.88 | 0.00 | 2.05 | -13.34 | 60.01 | -44.76 | 107.08 | 0.7190 | -497.0 | -624.3 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -11.79 | 60.09 | -44.68 | 104.97 | 0.7147 | 374.0 | 357.4 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -13.18 | 59.61 | -45.16 | 106.76 | 0.7233 | -686.0 | -601.6 | |
| 2.16 | 7.75 | 1.55 | 5.57 | -13.14 | 59.35 | -45.42 | 106.64 | 0.7262 | -830.7 | -600.3 | |
| 0.00 | 5.85 | 0.00 | 4.21 | -12.83 | 59.16 | -45.61 | 106.17 | 0.7278 | -684.0 | -673.0 | |
| 1.26 | 4.68 | 0.91 | 3.37 | -11.80 | 59.03 | -45.74 | 104.75 | 0.7272 | -897.6 | -684.3 | |
| 0.63 | 2.07 | 0.45 | 1.49 | -12.11 | 58.96 | -45.81 | 105.15 | 0.7286 | -849.9 | -752.7 | |
| 0.81 | 2.07 | 0.59 | 1.50 | -12.29 | 58.83 | -45.94 | 105.37 | 0.7304 | -827.1 | -716.5 | |
| 1.98 | 3.42 | 1.44 | 2.49 | -13.06 | 58.56 | -46.21 | 106.35 | 0.7351 | -665.8 | -493.0 | |
| 0.00 | 1.53 | 0.00 | 1.12 | -12.87 | 58.47 | -46.30 | 106.08 | 0.7358 | -748.0 | -550.8 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -12.50 | 58.51 | -46.26 | 105.59 | 0.7345 | -613.0 | -538.1 | |
| 0.72 | 5.94 | 0.52 | 4.32 | -11.91 | 58.51 | -46.26 | 104.79 | 0.7334 | -670.4 | -554.7 | |
| 5.85 | 8.74 | 4.30 | 6.41 | -13.02 | 58.11 | -46.65 | 106.19 | 0.7401 | -483.7 | -148.2 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -12.62 | 57.94 | -46.83 | 105.61 | 0.7412 | -467.0 | -381.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
