SDO HMI 2014-05-23 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.20 | 112.55 | 19.01 | 81.14 | -18.33 | 148.50 | 44.29 | 245.98 | 0.7272 | 276.4 | 235.5 | |
|
previous
or next observation for the same group /

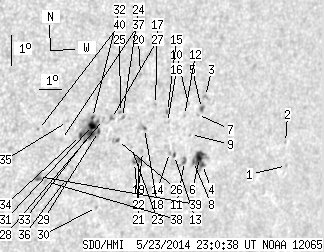

back to the solar disc SDO HMI 2014-05-23 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.90 | -19.00 | 156.02 | 51.81 | 247.46 | 0.8068 | 450.0 | 384.2 | |
| 0.00 | 0.99 | 0.00 | 0.82 | -18.27 | 155.66 | 51.45 | 248.25 | 0.8017 | 545.0 | 438.4 | |
| 0.00 | 1.98 | 0.00 | 1.49 | -16.90 | 151.24 | 47.02 | 248.79 | 0.7532 | 571.0 | 482.7 | |
| 0.99 | 19.19 | 0.76 | 14.66 | -19.05 | 151.85 | 47.64 | 246.22 | 0.7655 | 500.7 | 399.2 | |
| 0.99 | 2.34 | 0.74 | 1.76 | -17.28 | 151.17 | 46.96 | 248.28 | 0.7535 | 586.8 | 384.1 | |
| 6.31 | -4.00 | 4.81 | -4.00 | -18.83 | 151.63 | 47.41 | 246.43 | 0.7625 | 750.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.95 | -17.47 | 151.05 | 46.84 | 247.99 | 0.7527 | 456.0 | 365.7 | |
| 0.99 | -4.00 | 0.75 | -4.00 | -18.96 | 151.39 | 47.18 | 246.18 | 0.7605 | 725.0 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -18.11 | 150.94 | 46.73 | 247.14 | 0.7533 | 444.0 | 373.8 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -17.14 | 150.52 | 46.31 | 248.27 | 0.7461 | 515.0 | 510.2 | |
| 1.08 | 4.50 | 0.81 | 3.39 | -18.97 | 150.97 | 46.75 | 246.04 | 0.7561 | 671.3 | 557.0 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -17.52 | 150.46 | 46.25 | 247.76 | 0.7465 | 458.0 | 421.1 | |
| 0.63 | 1.80 | 0.47 | 1.34 | -18.79 | 150.43 | 46.22 | 246.10 | 0.7499 | 483.1 | 486.4 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -18.70 | 150.17 | 45.96 | 246.13 | 0.7469 | 612.0 | 608.5 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -17.41 | 149.65 | 45.43 | 247.64 | 0.7373 | 745.0 | 657.9 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -17.75 | 149.76 | 45.54 | 247.22 | 0.7396 | 314.0 | 336.8 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -17.20 | 149.04 | 44.82 | 247.72 | 0.7300 | 695.0 | 610.7 | |
| 0.45 | 4.05 | 0.33 | 2.92 | -17.96 | 148.78 | 44.57 | 246.62 | 0.7296 | 602.8 | 485.5 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -18.69 | 148.93 | 44.72 | 245.71 | 0.7335 | -111.0 | -36.6 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -16.27 | 148.10 | 43.88 | 248.66 | 0.7167 | 543.0 | 497.3 | |
| 1.17 | 5.04 | 0.85 | 3.66 | -18.95 | 148.84 | 44.62 | 245.34 | 0.7333 | 709.1 | 572.4 | |
| 0.45 | -21.00 | 0.33 | -21.00 | -19.05 | 148.69 | 44.47 | 245.16 | 0.7321 | 652.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -18.57 | 148.40 | 44.18 | 245.68 | 0.7273 | -167.0 | -106.9 | |
| 0.00 | 2.07 | 0.00 | 1.47 | -17.63 | 147.70 | 43.49 | 246.68 | 0.7165 | -204.0 | -252.3 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -17.48 | 147.57 | 43.35 | 246.84 | 0.7145 | -502.0 | -370.1 | |
| 0.63 | 3.51 | 0.45 | 2.49 | -18.36 | 147.71 | 43.49 | 245.70 | 0.7190 | -490.9 | -394.7 | |
| 0.00 | 2.52 | 0.00 | 1.77 | -17.67 | 147.23 | 43.02 | 246.46 | 0.7113 | -640.0 | -508.7 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -17.71 | 146.89 | 42.68 | 246.28 | 0.7076 | -558.0 | -466.0 | |
| 1.08 | 36.66 | 0.76 | 25.46 | -18.09 | 146.79 | 42.57 | 245.72 | 0.7078 | -271.1 | -5.4 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -20.51 | 147.49 | 43.27 | 242.77 | 0.7244 | 480.0 | 365.1 | |
| 5.13 | -29.00 | 3.57 | -29.00 | -17.91 | 146.47 | 42.26 | 245.85 | 0.7036 | -754.9 | 999999 | |
| 0.63 | -29.00 | 0.44 | -29.00 | -17.66 | 146.40 | 42.19 | 246.17 | 0.7019 | -632.6 | 999999 | |
| 4.32 | -29.00 | 3.01 | -29.00 | -18.16 | 146.46 | 42.25 | 245.50 | 0.7044 | 218.4 | 999999 | |
| 1.35 | -29.00 | 0.93 | -29.00 | -18.23 | 146.05 | 41.84 | 245.24 | 0.7000 | 712.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -17.80 | 145.37 | 41.16 | 245.56 | 0.6906 | 631.0 | 523.3 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -19.61 | 145.87 | 41.65 | 243.29 | 0.7032 | 556.0 | 431.7 | |
| 0.00 | 1.53 | 0.00 | 1.05 | -18.37 | 145.28 | 41.07 | 244.73 | 0.6917 | 448.0 | 308.9 | |
| 0.00 | 1.80 | 0.00 | 1.24 | -19.72 | 145.00 | 40.79 | 242.76 | 0.6939 | 516.0 | 446.1 | |
| 0.00 | 5.40 | 0.00 | 3.69 | -19.56 | 144.65 | 40.44 | 242.82 | 0.6894 | 826.0 | 693.8 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -18.07 | 144.22 | 40.01 | 244.70 | 0.6784 | 630.0 | 491.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
