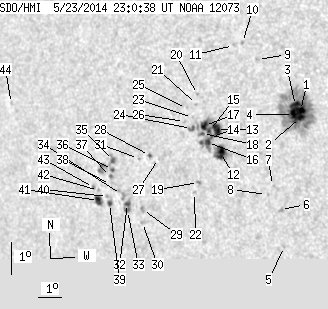

SDO HMI 2014-05-23 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.74 | 264.44 | 44.26 | 174.29 | -11.17 | 63.90 | -40.31 | 105.17 | 0.6588 | 399.5 | 192.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.67 | 123.14 | 4.19 | 77.60 | -10.42 | 66.97 | -37.24 | 104.87 | 0.6181 | 1262.9 | 382.9 | |
| 3.78 | -1.00 | 2.38 | -1.00 | -10.64 | 66.94 | -37.27 | 105.21 | 0.6190 | 1036.4 | 999999 | |
| 5.68 | -1.00 | 3.58 | -1.00 | -10.26 | 66.80 | -37.41 | 104.57 | 0.6199 | 988.2 | 999999 | |
| 7.03 | -1.00 | 4.44 | -1.00 | -10.54 | 66.68 | -37.53 | 104.98 | 0.6222 | 897.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -14.61 | 65.61 | -38.61 | 110.87 | 0.6485 | 541.0 | 419.4 | |
| 0.00 | 1.80 | 0.00 | 1.16 | -13.46 | 65.68 | -38.54 | 109.16 | 0.6437 | 712.0 | 645.7 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -12.71 | 65.50 | -38.72 | 107.97 | 0.6437 | 531.0 | 532.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -12.98 | 65.21 | -39.01 | 108.28 | 0.6482 | 442.0 | 487.2 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -8.83 | 65.50 | -38.71 | 101.97 | 0.6340 | 709.0 | 641.2 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -8.30 | 64.98 | -39.24 | 101.03 | 0.6400 | -715.0 | -561.1 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -8.38 | 64.61 | -39.61 | 101.09 | 0.6450 | -508.0 | -428.7 | |
| 10.72 | 18.29 | 7.09 | 12.10 | -11.65 | 63.59 | -40.63 | 105.79 | 0.6650 | 710.1 | 170.7 | |
| 8.02 | 48.46 | 5.30 | 32.19 | -10.94 | 63.55 | -40.67 | 104.72 | 0.6638 | 1071.9 | 523.8 | |
| 0.27 | -13.00 | 0.18 | -13.00 | -11.15 | 63.30 | -40.91 | 104.97 | 0.6674 | 922.7 | 999999 | |
| 1.44 | -13.00 | 0.96 | -13.00 | -10.97 | 63.25 | -40.96 | 104.69 | 0.6676 | 958.4 | 999999 | |
| 3.42 | -13.00 | 2.28 | -13.00 | -11.34 | 63.11 | -41.11 | 105.19 | 0.6703 | 786.6 | 999999 | |
| 4.68 | -13.00 | 3.12 | -13.00 | -10.81 | 63.08 | -41.14 | 104.41 | 0.6695 | 844.8 | 999999 | |
| 1.08 | -13.00 | 0.72 | -13.00 | -11.05 | 62.95 | -41.26 | 104.74 | 0.6716 | 534.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.15 | -12.56 | 62.50 | -41.71 | 106.81 | 0.6807 | 774.0 | 564.0 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -9.85 | 62.94 | -41.27 | 102.96 | 0.6692 | -515.0 | -409.3 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -10.16 | 62.85 | -41.36 | 103.39 | 0.6709 | 693.0 | 549.0 | |
| 0.00 | 1.35 | 0.00 | 0.92 | -12.87 | 62.27 | -41.94 | 107.19 | 0.6843 | 602.0 | 437.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -10.56 | 62.62 | -41.59 | 103.92 | 0.6746 | 379.0 | 314.0 | |
| 0.00 | 3.60 | 0.00 | 2.42 | -10.89 | 62.52 | -41.69 | 104.39 | 0.6766 | 584.0 | 454.5 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -10.27 | 62.42 | -41.79 | 103.46 | 0.6766 | 633.0 | 563.9 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -10.67 | 62.27 | -41.94 | 104.01 | 0.6793 | 519.0 | 359.1 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -11.79 | 60.97 | -43.25 | 105.30 | 0.6976 | 617.0 | 449.1 | |
| 0.72 | 2.25 | 0.50 | 1.56 | -11.69 | 60.60 | -43.61 | 105.07 | 0.7018 | 671.1 | 540.8 | |
| 0.00 | 2.61 | 0.00 | 1.84 | -13.35 | 59.94 | -44.28 | 107.22 | 0.7134 | -768.0 | -686.4 | |
| 0.00 | 1.98 | 0.00 | 1.40 | -13.75 | 59.84 | -44.37 | 107.75 | 0.7155 | -394.0 | -341.5 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -11.77 | 60.11 | -44.10 | 105.07 | 0.7079 | 392.0 | 298.1 | |
| 1.89 | 8.38 | 1.35 | 5.96 | -13.15 | 59.32 | -44.89 | 106.79 | 0.7201 | -873.3 | -651.0 | |
| 1.80 | -32.00 | 1.28 | -32.00 | -13.37 | 59.27 | -44.94 | 107.07 | 0.7212 | -634.3 | 999999 | |
| 0.00 | 4.86 | 0.00 | 3.47 | -12.86 | 59.13 | -45.09 | 106.35 | 0.7218 | -746.0 | -701.3 | |
| 1.71 | 15.67 | 1.22 | 11.23 | -11.81 | 59.01 | -45.21 | 104.88 | 0.7210 | -921.8 | -638.7 | |
| 0.90 | -35.00 | 0.64 | -35.00 | -12.09 | 58.90 | -45.31 | 105.23 | 0.7228 | -865.4 | 999999 | |
| 0.54 | 1.80 | 0.39 | 1.29 | -12.30 | 58.77 | -45.45 | 105.50 | 0.7248 | -911.2 | -790.0 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -12.55 | 58.71 | -45.50 | 105.82 | 0.7260 | -691.0 | -719.2 | |
| 1.44 | 3.96 | 1.04 | 2.86 | -13.13 | 58.53 | -45.69 | 106.57 | 0.7293 | -625.8 | -412.1 | |
| 0.00 | 1.26 | 0.00 | 0.91 | -12.91 | 58.49 | -45.72 | 106.27 | 0.7293 | -661.0 | -563.9 | |
| 4.95 | 6.94 | 3.60 | 5.04 | -13.03 | 58.06 | -46.16 | 106.32 | 0.7345 | -549.9 | -305.0 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -12.72 | 58.13 | -46.08 | 105.92 | 0.7330 | -583.0 | -434.8 | |
| 0.00 | 1.62 | 0.00 | 1.18 | -12.62 | 57.93 | -46.28 | 105.75 | 0.7351 | -440.0 | -354.4 | |
| 0.00 | 1.26 | 0.00 | 0.97 | -9.96 | 54.72 | -49.49 | 101.64 | 0.7669 | 502.0 | 411.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
