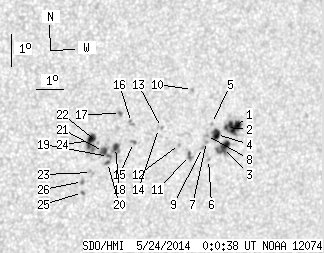

SDO HMI 2014-05-24 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.03 | 114.74 | 27.85 | 68.92 | -13.80 | 136.13 | 32.47 | 247.53 | 0.5659 | 111.8 | -129.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.25 | 19.46 | 7.56 | 12.00 | -13.29 | 138.73 | 35.07 | 249.72 | 0.5984 | 820.6 | 531.9 | |
| 1.53 | -1.00 | 0.94 | -1.00 | -13.29 | 138.43 | 34.77 | 249.57 | 0.5944 | 930.5 | 999999 | |
| 9.01 | 14.59 | 5.55 | 8.99 | -13.91 | 138.42 | 34.75 | 248.56 | 0.5967 | 798.7 | 409.1 | |
| 5.59 | 8.20 | 3.42 | 5.02 | -13.51 | 138.08 | 34.42 | 249.06 | 0.5907 | 895.9 | 681.2 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -13.17 | 137.84 | 34.18 | 249.50 | 0.5862 | 477.0 | 519.7 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -14.29 | 137.91 | 34.25 | 247.70 | 0.5916 | 661.0 | 592.7 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -13.74 | 137.74 | 34.08 | 248.53 | 0.5871 | 824.0 | 735.9 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -13.55 | 137.71 | 34.05 | 248.82 | 0.5859 | 922.0 | 831.8 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -13.92 | 137.62 | 33.96 | 248.16 | 0.5863 | 675.0 | 669.9 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -12.13 | 136.97 | 33.31 | 250.85 | 0.5705 | 785.0 | 728.4 | |
| 1.44 | 4.41 | 0.88 | 2.68 | -14.18 | 137.17 | 33.51 | 247.52 | 0.5815 | 801.0 | 646.9 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -13.84 | 136.74 | 33.08 | 247.86 | 0.5743 | 664.0 | 530.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -13.33 | 135.99 | 32.33 | 248.35 | 0.5621 | -641.0 | -548.8 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -13.36 | 135.89 | 32.23 | 248.24 | 0.5608 | -694.0 | -483.0 | |
| 0.00 | 2.52 | 0.00 | 1.50 | -13.80 | 135.03 | 31.37 | 247.01 | 0.5513 | -686.0 | -566.5 | |
| 0.00 | 2.79 | 0.00 | 1.65 | -13.19 | 134.87 | 31.21 | 247.99 | 0.5463 | -481.0 | -477.7 | |
| 0.54 | 1.62 | 0.32 | 0.95 | -12.91 | 134.43 | 30.77 | 248.23 | 0.5391 | -895.8 | -727.9 | |
| 3.06 | 24.14 | 1.81 | 14.21 | -13.97 | 134.40 | 30.74 | 246.36 | 0.5436 | -741.4 | -546.2 | |
| 0.63 | -18.00 | 0.37 | -18.00 | -14.25 | 134.19 | 30.53 | 245.73 | 0.5421 | -769.4 | 999999 | |
| 0.90 | -18.00 | 0.53 | -18.00 | -14.44 | 134.18 | 30.52 | 245.40 | 0.5429 | -670.8 | 999999 | |
| 3.42 | -18.00 | 2.01 | -18.00 | -14.10 | 133.98 | 30.32 | 245.88 | 0.5386 | -891.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -13.82 | 133.72 | 30.06 | 246.21 | 0.5337 | -540.0 | -587.0 | |
| 0.00 | 3.69 | 0.00 | 2.17 | -14.76 | 133.64 | 29.98 | 244.51 | 0.5375 | -771.0 | -622.6 | |
| 7.21 | 16.22 | 4.20 | 9.47 | -13.76 | 133.46 | 29.80 | 246.15 | 0.5299 | -934.2 | -663.4 | |
| 0.45 | 1.62 | 0.26 | 0.95 | -15.38 | 133.41 | 29.75 | 243.27 | 0.5378 | -756.2 | -629.2 | |
| 0.00 | 2.34 | 0.00 | 1.37 | -15.04 | 133.36 | 29.70 | 243.83 | 0.5352 | -860.0 | -752.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
