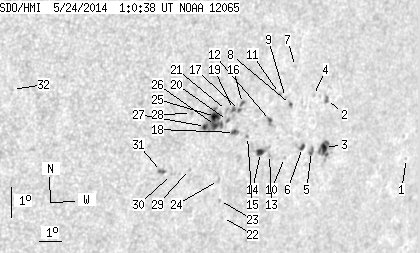

SDO HMI 2014-05-24 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.16 | 109.44 | 22.11 | 80.11 | -18.33 | 148.30 | 45.19 | 246.30 | 0.7371 | 243.2 | 193.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.31 | -19.03 | 156.04 | 52.94 | 247.69 | 0.8176 | 378.0 | 328.2 | |
| 1.08 | 2.97 | 0.83 | 2.28 | -17.25 | 151.29 | 48.18 | 248.66 | 0.7664 | 549.1 | 406.2 | |
| 3.87 | 15.86 | 3.02 | 12.39 | -18.77 | 151.75 | 48.64 | 246.87 | 0.7750 | 743.2 | 468.1 | |
| 0.00 | 1.26 | 0.00 | 0.96 | -17.14 | 150.63 | 47.52 | 248.62 | 0.7592 | 343.0 | 425.1 | |
| 1.44 | 3.87 | 1.11 | 2.99 | -18.90 | 151.17 | 48.06 | 246.52 | 0.7695 | 659.9 | 554.6 | |
| 1.80 | 3.33 | 1.38 | 2.55 | -18.79 | 150.69 | 47.59 | 246.53 | 0.7643 | 656.8 | 533.4 | |
| 0.00 | 1.35 | 0.00 | 1.00 | -16.24 | 149.50 | 46.40 | 249.46 | 0.7447 | 84.0 | 129.0 | |
| 0.63 | 1.71 | 0.47 | 1.28 | -17.44 | 149.65 | 46.55 | 247.94 | 0.7496 | 747.6 | 665.5 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -17.22 | 149.35 | 46.24 | 248.13 | 0.7457 | 573.0 | 538.0 | |
| 0.00 | 1.17 | 0.00 | 0.89 | -19.12 | 149.96 | 46.86 | 245.87 | 0.7577 | 425.0 | 412.6 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -17.10 | 149.04 | 45.93 | 248.19 | 0.7420 | 661.0 | 624.3 | |
| 1.35 | 4.41 | 1.00 | 3.26 | -17.96 | 148.90 | 45.80 | 247.02 | 0.7430 | 584.9 | 384.2 | |
| 0.00 | 1.35 | 0.00 | 1.01 | -19.04 | 149.23 | 46.12 | 245.73 | 0.7497 | 544.0 | 438.0 | |
| 3.60 | 8.02 | 2.67 | 5.94 | -18.98 | 148.79 | 45.69 | 245.66 | 0.7449 | 627.3 | 440.8 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -18.49 | 148.03 | 44.92 | 246.04 | 0.7351 | -449.0 | -323.1 | |
| 1.26 | 2.97 | 0.91 | 2.13 | -17.45 | 147.47 | 44.36 | 247.22 | 0.7257 | -368.9 | -237.2 | |
| 0.72 | 8.56 | 0.52 | 6.12 | -17.67 | 147.41 | 44.30 | 246.90 | 0.7257 | -366.5 | -253.6 | |
| 1.71 | 4.51 | 1.23 | 3.24 | -18.37 | 147.40 | 44.30 | 245.97 | 0.7279 | -630.5 | -397.9 | |
| 0.99 | -17.00 | 0.71 | -17.00 | -17.64 | 147.13 | 44.02 | 246.84 | 0.7226 | -590.8 | 999999 | |
| 0.63 | -17.00 | 0.45 | -17.00 | -18.00 | 146.97 | 43.86 | 246.32 | 0.7220 | -545.1 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.60 | -17.68 | 146.83 | 43.72 | 246.69 | 0.7194 | -485.0 | -448.0 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -21.09 | 147.82 | 44.71 | 242.58 | 0.7418 | 571.0 | 549.7 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -20.55 | 147.48 | 44.37 | 243.15 | 0.7362 | 439.0 | 408.1 | |
| 0.00 | 1.89 | 0.00 | 1.37 | -19.91 | 147.20 | 44.09 | 243.87 | 0.7310 | 589.0 | 498.7 | |
| 5.32 | 31.18 | 3.76 | 22.02 | -17.88 | 146.41 | 43.30 | 246.27 | 0.7153 | -656.6 | -5.6 | |
| 1.98 | -25.00 | 1.40 | -25.00 | -18.16 | 146.49 | 43.38 | 245.92 | 0.7172 | 411.3 | 999999 | |
| 2.25 | -25.00 | 1.59 | -25.00 | -18.20 | 146.07 | 42.96 | 245.70 | 0.7126 | 612.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -17.80 | 145.34 | 42.23 | 245.97 | 0.7029 | 558.0 | 471.9 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -19.58 | 145.80 | 42.69 | 243.75 | 0.7146 | 464.0 | 438.9 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -19.75 | 145.07 | 41.96 | 243.21 | 0.7072 | 543.0 | 481.0 | |
| 1.53 | 3.06 | 1.06 | 2.12 | -19.66 | 144.61 | 41.50 | 243.14 | 0.7017 | 772.8 | 664.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -17.16 | 137.87 | 34.76 | 243.44 | 0.6113 | -570.0 | -491.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
