SDO HMI 2014-05-24 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.86 | 0.00 | 2.70 | -26.97 | 103.69 | 0.58 | 182.71 | 0.4383 | 81.2 | 85.4 | |
|
previous
or next observation for the same group /

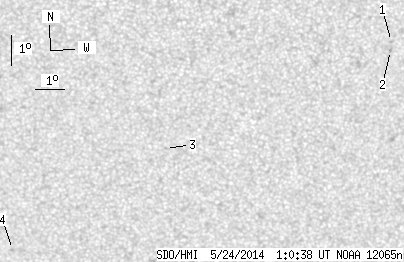

back to the solar disc SDO HMI 2014-05-24 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.49 | -24.12 | 109.02 | 5.91 | 193.81 | 0.3955 | 766.0 | 635.9 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -24.42 | 109.00 | 5.89 | 193.57 | 0.4000 | 946.0 | 756.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -27.69 | 101.44 | -1.67 | 176.64 | 0.4416 | -725.0 | -567.5 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -31.14 | 95.93 | -7.18 | 167.75 | 0.5060 | -662.0 | -556.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
