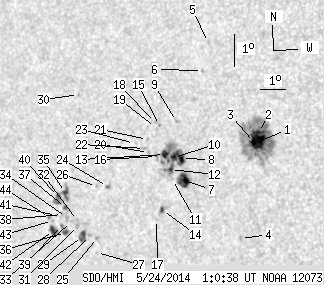

SDO HMI 2014-05-24 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.76 | 248.82 | 42.35 | 161.82 | -11.18 | 63.72 | -39.39 | 105.45 | 0.6470 | 219.8 | 188.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.45 | 111.91 | 6.48 | 69.50 | -10.46 | 66.97 | -36.14 | 105.30 | 0.6034 | 1209.2 | 410.8 | |
| 5.05 | -1.00 | 3.13 | -1.00 | -10.21 | 66.93 | -36.18 | 104.88 | 0.6034 | 1114.9 | 999999 | |
| 8.11 | -1.00 | 5.04 | -1.00 | -10.52 | 66.73 | -36.38 | 105.31 | 0.6068 | 886.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -13.47 | 65.71 | -37.40 | 109.62 | 0.6293 | 748.0 | 581.0 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -7.43 | 65.33 | -37.78 | 99.96 | 0.6190 | -536.0 | -455.1 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -8.28 | 65.00 | -38.10 | 101.25 | 0.6249 | -650.0 | -556.7 | |
| 11.62 | 14.60 | 7.55 | 9.48 | -11.64 | 63.77 | -39.34 | 106.15 | 0.6487 | 781.5 | 403.3 | |
| 3.78 | 42.53 | 2.45 | 27.69 | -10.96 | 63.80 | -39.31 | 105.13 | 0.6465 | 1076.4 | 648.7 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -9.82 | 63.78 | -39.33 | 103.38 | 0.6442 | -597.0 | -451.4 | |
| 2.07 | -8.00 | 1.35 | -8.00 | -10.92 | 63.49 | -39.62 | 104.99 | 0.6505 | 1008.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -11.60 | 63.33 | -39.77 | 105.96 | 0.6541 | 439.0 | 311.7 | |
| 1.44 | -8.00 | 0.94 | -8.00 | -11.29 | 63.31 | -39.80 | 105.49 | 0.6537 | 839.3 | 999999 | |
| 4.14 | -8.00 | 2.71 | -8.00 | -10.82 | 63.14 | -39.97 | 104.74 | 0.6547 | 795.0 | 999999 | |
| 1.62 | 3.69 | 1.07 | 2.44 | -12.54 | 62.75 | -40.35 | 107.20 | 0.6640 | 593.3 | 445.3 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -9.93 | 63.08 | -40.03 | 103.37 | 0.6535 | -223.0 | -184.0 | |
| 0.00 | 2.34 | 0.00 | 1.54 | -10.88 | 62.81 | -40.30 | 104.74 | 0.6591 | 597.0 | 395.6 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -12.82 | 62.45 | -40.65 | 107.51 | 0.6684 | 465.0 | 428.0 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -9.83 | 62.93 | -40.18 | 103.19 | 0.6552 | -550.0 | -425.6 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -9.99 | 62.91 | -40.20 | 103.42 | 0.6558 | -40.0 | 16.5 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -10.75 | 62.50 | -40.61 | 104.46 | 0.6627 | 544.0 | 441.5 | |
| 0.00 | 1.35 | 0.00 | 0.89 | -10.35 | 62.53 | -40.58 | 103.87 | 0.6615 | 588.0 | 471.7 | |
| 0.00 | 2.34 | 0.00 | 1.55 | -10.62 | 62.36 | -40.75 | 104.24 | 0.6642 | 604.0 | 462.9 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -10.46 | 61.98 | -41.13 | 103.91 | 0.6687 | 449.0 | 479.2 | |
| 0.45 | 1.71 | 0.31 | 1.17 | -11.76 | 60.62 | -42.49 | 105.47 | 0.6884 | 711.4 | 566.3 | |
| 0.00 | 1.44 | 0.00 | 1.00 | -13.33 | 59.86 | -43.24 | 107.49 | 0.7012 | -817.0 | -742.2 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -11.75 | 60.15 | -42.95 | 105.34 | 0.6941 | 557.0 | 404.7 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -13.79 | 59.71 | -43.39 | 108.09 | 0.7042 | -507.0 | -413.4 | |
| 0.00 | 1.53 | 0.00 | 1.07 | -13.26 | 59.58 | -43.53 | 107.31 | 0.7045 | -821.0 | -666.2 | |
| 4.96 | 7.66 | 3.47 | 5.36 | -13.28 | 59.23 | -43.88 | 107.25 | 0.7087 | -768.7 | -576.8 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -8.91 | 59.88 | -43.23 | 101.22 | 0.6921 | -542.0 | -475.7 | |
| 0.00 | 2.07 | 0.00 | 1.45 | -12.94 | 59.09 | -44.02 | 106.74 | 0.7095 | -851.0 | -779.3 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -12.78 | 59.12 | -43.99 | 106.53 | 0.7088 | -756.0 | -623.2 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -12.81 | 58.86 | -44.25 | 106.50 | 0.7120 | -763.0 | -693.5 | |
| 0.00 | 3.15 | 0.00 | 2.22 | -12.68 | 58.67 | -44.44 | 106.27 | 0.7139 | -848.0 | -652.5 | |
| 1.89 | 16.85 | 1.33 | 11.87 | -11.91 | 58.79 | -44.32 | 105.23 | 0.7108 | -934.7 | -657.5 | |
| 1.89 | 3.42 | 1.34 | 2.42 | -13.14 | 58.52 | -44.59 | 106.87 | 0.7167 | -682.7 | -474.3 | |
| 0.90 | 2.70 | 0.63 | 1.90 | -12.37 | 58.69 | -44.42 | 105.85 | 0.7130 | -818.2 | -680.8 | |
| 0.00 | 1.44 | 0.00 | 1.02 | -12.59 | 58.51 | -44.60 | 106.10 | 0.7155 | -702.0 | -594.4 | |
| 0.54 | 1.80 | 0.38 | 1.28 | -12.92 | 58.39 | -44.72 | 106.54 | 0.7177 | -632.7 | -478.3 | |
| 1.44 | -35.00 | 1.02 | -35.00 | -12.03 | 58.46 | -44.65 | 105.32 | 0.7150 | -664.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -12.61 | 58.24 | -44.87 | 106.07 | 0.7187 | -561.0 | -499.3 | |
| 4.41 | 6.76 | 3.15 | 4.83 | -13.07 | 58.00 | -45.10 | 106.64 | 0.7225 | -575.3 | -323.2 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -12.76 | 58.03 | -45.08 | 106.23 | 0.7215 | -614.0 | -443.8 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -12.67 | 57.92 | -45.19 | 106.07 | 0.7226 | -424.0 | -348.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
