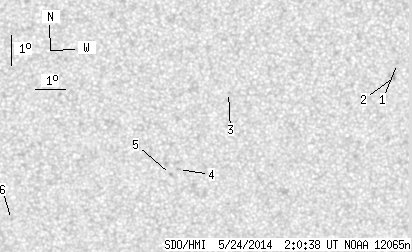

SDO HMI 2014-05-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.92 | 0.00 | 4.32 | -25.96 | 104.68 | 2.12 | 185.27 | 0.4207 | -184.8 | -4.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.53 | -23.95 | 109.10 | 6.54 | 195.34 | 0.3954 | 809.0 | 502.5 | |
| 0.00 | 2.70 | 0.00 | 1.46 | -24.38 | 109.02 | 6.46 | 194.85 | 0.4017 | 896.0 | 695.7 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -24.91 | 103.48 | 0.92 | 182.11 | 0.3969 | -626.0 | -481.6 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -27.48 | 101.78 | -0.77 | 178.43 | 0.4378 | -759.0 | -593.8 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -27.64 | 101.51 | -1.05 | 177.88 | 0.4406 | -723.0 | -550.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -29.16 | 95.95 | -6.61 | 167.73 | 0.4749 | -706.0 | -587.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
