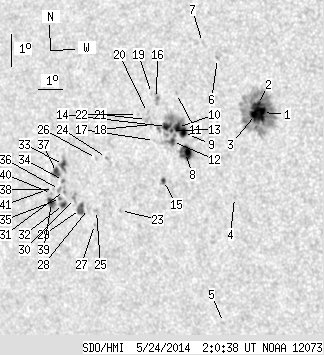

SDO HMI 2014-05-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.59 | 272.62 | 50.46 | 175.50 | -11.17 | 63.89 | -38.67 | 105.66 | 0.6378 | 249.9 | 203.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.09 | 121.56 | 6.21 | 74.96 | -10.46 | 67.03 | -35.53 | 105.51 | 0.5952 | 1222.0 | 389.3 | |
| 5.05 | -1.00 | 3.11 | -1.00 | -10.21 | 66.87 | -35.68 | 105.05 | 0.5967 | 1084.8 | 999999 | |
| 9.73 | -1.00 | 6.01 | -1.00 | -10.52 | 66.76 | -35.80 | 105.51 | 0.5991 | 893.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -13.06 | 65.55 | -37.01 | 109.15 | 0.6230 | 650.0 | 533.6 | |
| 0.00 | 1.53 | 0.00 | 1.00 | -16.95 | 64.29 | -38.26 | 114.50 | 0.6532 | 145.0 | 202.1 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -8.78 | 65.52 | -37.04 | 102.31 | 0.6115 | 817.0 | 631.6 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -8.28 | 65.00 | -37.56 | 101.38 | 0.6176 | -728.0 | -492.4 | |
| 11.98 | 17.84 | 7.71 | 11.48 | -11.64 | 63.86 | -38.70 | 106.36 | 0.6405 | 772.8 | 209.1 | |
| 5.86 | 52.17 | 3.76 | 33.68 | -11.02 | 63.88 | -38.68 | 105.42 | 0.6386 | 1107.7 | 501.3 | |
| 4.06 | -9.00 | 2.61 | -9.00 | -10.86 | 63.67 | -38.89 | 105.11 | 0.6409 | 1042.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -9.82 | 63.78 | -38.77 | 103.53 | 0.6370 | -564.0 | -412.8 | |
| 2.61 | -9.00 | 1.69 | -9.00 | -11.29 | 63.40 | -39.16 | 105.69 | 0.6455 | 789.6 | 999999 | |
| 0.99 | -9.00 | 0.64 | -9.00 | -10.95 | 63.41 | -39.14 | 105.17 | 0.6444 | 813.5 | 999999 | |
| 4.87 | -9.00 | 3.15 | -9.00 | -10.82 | 63.23 | -39.32 | 104.93 | 0.6464 | 758.7 | 999999 | |
| 1.44 | 3.51 | 0.94 | 2.30 | -12.49 | 62.82 | -39.73 | 107.32 | 0.6560 | 627.0 | 457.8 | |
| 0.00 | 5.32 | 0.00 | 3.45 | -9.96 | 62.96 | -39.59 | 103.54 | 0.6479 | 86.0 | 98.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -11.25 | 62.68 | -39.88 | 105.42 | 0.6546 | 379.0 | 381.0 | |
| 0.00 | 1.98 | 0.00 | 1.30 | -10.75 | 62.64 | -39.92 | 104.66 | 0.6539 | 628.0 | 447.4 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -9.80 | 62.79 | -39.77 | 103.25 | 0.6499 | -440.0 | -372.2 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -10.38 | 62.54 | -40.02 | 104.07 | 0.6544 | 634.0 | 505.4 | |
| 0.00 | 3.96 | 0.00 | 2.60 | -10.59 | 62.46 | -40.09 | 104.38 | 0.6558 | 508.0 | 418.2 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -10.43 | 62.12 | -40.43 | 104.05 | 0.6598 | 565.0 | 379.0 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -13.38 | 60.87 | -41.68 | 108.02 | 0.6827 | -676.0 | -536.1 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -11.73 | 60.62 | -41.94 | 105.58 | 0.6816 | 674.0 | 629.8 | |
| 0.00 | 1.80 | 0.00 | 1.24 | -13.36 | 59.86 | -42.69 | 107.70 | 0.6948 | -829.0 | -696.1 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -11.75 | 60.19 | -42.36 | 105.50 | 0.6869 | 497.0 | 451.0 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -13.79 | 59.68 | -42.88 | 108.25 | 0.6981 | -599.0 | -454.9 | |
| 0.00 | 1.44 | 0.00 | 1.00 | -13.29 | 59.54 | -43.02 | 107.51 | 0.6985 | -857.0 | -670.9 | |
| 4.78 | 7.66 | 3.31 | 5.32 | -13.32 | 59.19 | -43.37 | 107.44 | 0.7028 | -784.0 | -568.1 | |
| 0.00 | 3.87 | 0.00 | 2.69 | -12.97 | 59.01 | -43.55 | 106.91 | 0.7041 | -845.0 | -682.7 | |
| 0.00 | 2.16 | 0.00 | 1.51 | -12.71 | 58.63 | -43.93 | 106.46 | 0.7079 | -806.0 | -768.5 | |
| 2.43 | 3.96 | 1.71 | 2.78 | -13.15 | 58.49 | -44.07 | 107.02 | 0.7106 | -625.7 | -356.1 | |
| 3.42 | 16.67 | 2.38 | 11.64 | -11.91 | 58.76 | -43.80 | 105.37 | 0.7046 | -925.2 | -648.9 | |
| 0.45 | 1.62 | 0.31 | 1.13 | -12.41 | 58.65 | -43.90 | 106.03 | 0.7070 | -895.6 | -773.6 | |
| 0.54 | 1.62 | 0.38 | 1.14 | -12.96 | 58.40 | -44.16 | 106.74 | 0.7112 | -594.7 | -436.1 | |
| 0.00 | 2.07 | 0.00 | 1.45 | -12.68 | 58.42 | -44.14 | 106.35 | 0.7103 | -777.0 | -667.5 | |
| 4.60 | -33.00 | 3.22 | -33.00 | -12.15 | 58.40 | -44.15 | 105.62 | 0.7094 | -732.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -12.67 | 58.16 | -44.40 | 106.28 | 0.7134 | -538.0 | -454.8 | |
| 4.69 | 6.85 | 3.32 | 4.85 | -13.07 | 57.98 | -44.58 | 106.79 | 0.7164 | -528.8 | -310.2 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -12.80 | 58.04 | -44.51 | 106.42 | 0.7150 | -416.0 | -367.7 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -12.67 | 57.90 | -44.66 | 106.21 | 0.7165 | -440.0 | -326.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
