SDO HMI 2014-05-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.99 | 128.75 | 31.18 | 78.43 | -13.78 | 136.27 | 33.71 | 248.17 | 0.5824 | 80.1 | -9.9 | |
|
previous
or next observation for the same group /

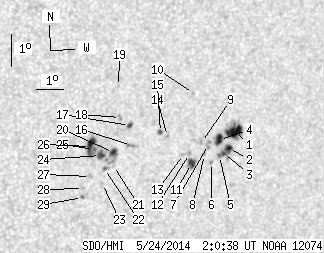

back to the solar disc SDO HMI 2014-05-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.25 | 32.89 | 8.29 | 20.55 | -13.28 | 138.78 | 36.23 | 250.19 | 0.6136 | 843.2 | 560.0 | |
| 3.78 | 13.07 | 2.37 | 8.18 | -13.81 | 138.64 | 36.09 | 249.30 | 0.6137 | 757.5 | 458.6 | |
| 1.62 | -2.00 | 1.01 | -2.00 | -13.97 | 138.48 | 35.92 | 248.97 | 0.6122 | 717.3 | 999999 | |
| 5.95 | -1.00 | 3.70 | -1.00 | -13.54 | 138.25 | 35.69 | 249.56 | 0.6075 | 929.6 | 999999 | |
| 0.63 | -2.00 | 0.39 | -2.00 | -14.04 | 138.33 | 35.78 | 248.81 | 0.6106 | 737.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -14.26 | 138.07 | 35.51 | 248.34 | 0.6079 | 762.0 | 672.8 | |
| 0.00 | 4.06 | 0.00 | 2.51 | -13.70 | 137.85 | 35.30 | 249.13 | 0.6030 | 724.0 | 774.1 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -14.01 | 137.75 | 35.20 | 248.58 | 0.6029 | 778.0 | 644.8 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -13.64 | 137.57 | 35.02 | 249.10 | 0.5991 | 932.0 | 802.8 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -12.13 | 137.03 | 34.48 | 251.33 | 0.5863 | 801.0 | 554.2 | |
| 4.78 | 7.30 | 2.95 | 4.50 | -14.30 | 137.31 | 34.75 | 247.92 | 0.5983 | 831.8 | 610.2 | |
| 0.00 | 1.80 | 0.00 | 1.11 | -13.99 | 137.18 | 34.62 | 248.35 | 0.5953 | 678.0 | 634.3 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -14.03 | 136.95 | 34.40 | 248.19 | 0.5925 | 732.0 | 544.8 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -13.48 | 136.26 | 33.70 | 248.76 | 0.5811 | -444.0 | -308.8 | |
| 1.17 | 1.98 | 0.71 | 1.20 | -13.36 | 135.98 | 33.42 | 248.82 | 0.5769 | -774.1 | -617.8 | |
| 0.00 | 4.06 | 0.00 | 2.43 | -13.77 | 134.96 | 32.40 | 247.60 | 0.5651 | -606.0 | -406.5 | |
| 1.62 | 2.70 | 0.97 | 1.61 | -13.15 | 134.79 | 32.24 | 248.57 | 0.5601 | -679.5 | -501.9 | |
| 0.00 | 2.43 | 0.00 | 1.45 | -12.91 | 134.43 | 31.87 | 248.80 | 0.5541 | -912.0 | -626.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -11.95 | 134.22 | 31.67 | 250.37 | 0.5474 | -205.0 | -201.5 | |
| 3.78 | 36.86 | 2.26 | 21.85 | -14.00 | 134.33 | 31.77 | 246.87 | 0.5577 | -818.5 | -650.5 | |
| 0.00 | 1.98 | 0.00 | 1.18 | -14.40 | 134.39 | 31.84 | 246.22 | 0.5604 | -63.0 | -170.4 | |
| 0.54 | 2.97 | 0.32 | 1.77 | -14.50 | 134.08 | 31.52 | 245.88 | 0.5567 | -747.2 | -529.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -14.97 | 134.08 | 31.52 | 245.08 | 0.5590 | -633.0 | -507.7 | |
| 3.78 | -20.00 | 2.25 | -20.00 | -14.10 | 133.87 | 31.31 | 246.44 | 0.5520 | -927.2 | 999999 | |
| 0.63 | -20.00 | 0.37 | -20.00 | -13.92 | 133.62 | 31.06 | 246.61 | 0.5478 | -975.6 | 999999 | |
| 9.01 | -20.00 | 5.32 | -20.00 | -13.82 | 133.46 | 30.90 | 246.68 | 0.5452 | -934.0 | 999999 | |
| 0.00 | 3.42 | 0.00 | 2.03 | -14.76 | 133.60 | 31.05 | 245.16 | 0.5517 | -763.0 | -632.3 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -15.13 | 133.40 | 30.85 | 244.39 | 0.5510 | -821.0 | -689.2 | |
| 0.45 | 1.53 | 0.27 | 0.91 | -15.42 | 133.41 | 30.86 | 243.92 | 0.5526 | -733.8 | -645.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
