SDO HMI 2014-05-24 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.26 | 275.56 | 47.01 | 175.24 | -11.21 | 63.71 | -37.75 | 106.03 | 0.6259 | 257.9 | 245.1 | |
|
previous
or next observation for the same group /

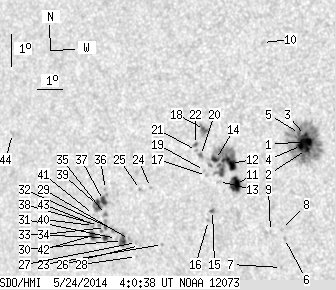

back to the solar disc SDO HMI 2014-05-24 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.56 | 113.20 | 5.20 | 68.86 | -10.37 | 66.96 | -34.50 | 105.74 | 0.5810 | 1230.1 | 446.5 | |
| 3.42 | -1.00 | 2.08 | -1.00 | -10.62 | 66.93 | -34.53 | 106.14 | 0.5822 | 1007.4 | 999999 | |
| 2.97 | -1.00 | 1.81 | -1.00 | -10.19 | 66.94 | -34.51 | 105.42 | 0.5807 | 1168.9 | 999999 | |
| 6.67 | -1.00 | 4.06 | -1.00 | -10.49 | 66.75 | -34.70 | 105.87 | 0.5841 | 918.1 | 999999 | |
| 0.27 | -1.00 | 0.16 | -1.00 | -10.12 | 66.73 | -34.73 | 105.24 | 0.5834 | 796.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -13.35 | 65.67 | -35.78 | 110.12 | 0.6081 | 708.0 | 520.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -14.25 | 65.40 | -36.06 | 111.42 | 0.6151 | 298.0 | 317.4 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -13.07 | 65.61 | -35.85 | 109.65 | 0.6080 | 658.0 | 509.1 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -13.13 | 65.17 | -36.28 | 109.56 | 0.6138 | 557.0 | 482.7 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -7.32 | 65.64 | -35.81 | 100.21 | 0.5919 | -702.0 | -499.4 | |
| 12.08 | 16.85 | 7.64 | 10.65 | -11.65 | 64.06 | -37.40 | 106.82 | 0.6237 | 888.0 | 392.8 | |
| 10.27 | 55.61 | 6.49 | 35.26 | -11.00 | 63.96 | -37.50 | 105.76 | 0.6231 | 1076.7 | 537.3 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -11.55 | 63.40 | -38.05 | 106.44 | 0.6319 | 501.0 | 415.6 | |
| 3.42 | -12.00 | 2.18 | -12.00 | -10.87 | 63.39 | -38.06 | 105.38 | 0.6302 | 792.2 | 999999 | |
| 0.90 | 2.25 | 0.58 | 1.45 | -12.44 | 63.02 | -38.44 | 107.69 | 0.6395 | 757.7 | 560.5 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -12.74 | 62.80 | -38.66 | 108.08 | 0.6432 | 310.0 | 305.2 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -11.35 | 62.96 | -38.50 | 106.00 | 0.6371 | 515.0 | 340.6 | |
| 2.25 | 7.57 | 1.44 | 4.83 | -9.94 | 63.10 | -38.36 | 103.84 | 0.6318 | 248.5 | 269.3 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -11.20 | 62.91 | -38.55 | 105.75 | 0.6374 | 485.0 | 363.4 | |
| 0.81 | 2.61 | 0.52 | 1.68 | -10.73 | 62.82 | -38.64 | 105.00 | 0.6374 | 669.2 | 453.0 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -10.58 | 62.69 | -38.77 | 104.72 | 0.6387 | 582.0 | 473.6 | |
| 0.72 | 2.25 | 0.46 | 1.45 | -10.39 | 62.67 | -38.78 | 104.43 | 0.6384 | 644.6 | 497.4 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -13.45 | 60.79 | -40.66 | 108.46 | 0.6704 | -761.0 | -628.7 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -11.68 | 60.64 | -40.81 | 105.82 | 0.6675 | 688.0 | 570.3 | |
| 0.00 | 1.53 | 0.00 | 1.02 | -11.73 | 60.22 | -41.24 | 105.78 | 0.6730 | 594.0 | 478.6 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -13.46 | 59.83 | -41.62 | 108.18 | 0.6822 | -834.0 | -651.3 | |
| 0.00 | 1.53 | 0.00 | 1.04 | -13.37 | 59.73 | -41.73 | 108.01 | 0.6832 | -800.0 | -661.2 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -13.80 | 59.63 | -41.82 | 108.60 | 0.6856 | -681.0 | -531.5 | |
| 0.00 | 2.16 | 0.00 | 1.47 | -13.27 | 59.46 | -42.00 | 107.79 | 0.6863 | -855.0 | -718.2 | |
| 5.14 | 8.11 | 3.51 | 5.54 | -13.30 | 59.15 | -42.30 | 107.74 | 0.6900 | -824.5 | -625.9 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -13.23 | 58.91 | -42.54 | 107.57 | 0.6927 | -444.0 | -417.8 | |
| 0.00 | 3.79 | 0.00 | 2.59 | -12.95 | 58.85 | -42.61 | 107.15 | 0.6928 | -852.0 | -772.0 | |
| 2.34 | 3.79 | 1.62 | 2.61 | -13.19 | 58.45 | -43.00 | 107.38 | 0.6981 | -573.7 | -329.7 | |
| 0.90 | 5.05 | 0.62 | 3.48 | -12.88 | 58.52 | -42.93 | 106.97 | 0.6965 | -826.6 | -650.5 | |
| 0.00 | 2.43 | 0.00 | 1.67 | -12.48 | 58.61 | -42.85 | 106.42 | 0.6945 | -893.0 | -746.0 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -11.71 | 58.76 | -42.69 | 105.36 | 0.6909 | -639.0 | -616.4 | |
| 3.52 | 14.96 | 2.41 | 10.29 | -12.04 | 58.61 | -42.85 | 105.81 | 0.6935 | -934.6 | -599.1 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -12.81 | 58.24 | -43.22 | 106.79 | 0.6998 | -701.0 | -667.1 | |
| 4.78 | -37.00 | 3.29 | -37.00 | -12.19 | 58.32 | -43.13 | 105.94 | 0.6973 | -744.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.19 | -12.81 | 58.02 | -43.43 | 106.73 | 0.7023 | -592.0 | -457.3 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -12.47 | 58.10 | -43.36 | 106.27 | 0.7007 | -320.0 | -246.7 | |
| 3.79 | 6.67 | 2.63 | 4.64 | -13.12 | 57.91 | -43.54 | 107.13 | 0.7044 | -533.9 | -391.0 | |
| 0.45 | 1.44 | 0.31 | 1.00 | -12.71 | 57.83 | -43.63 | 106.54 | 0.7044 | -386.2 | -209.0 | |
| 0.00 | 2.34 | 0.00 | 1.70 | -9.91 | 55.05 | -46.40 | 102.08 | 0.7319 | 624.0 | 434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
