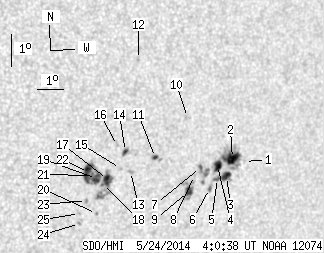

SDO HMI 2014-05-24 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.78 | 159.61 | 35.02 | 98.65 | -13.75 | 136.40 | 34.94 | 248.80 | 0.5984 | -61.8 | 109.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.40 | -13.40 | 139.39 | 37.94 | 250.66 | 0.6361 | -129.0 | -121.0 | |
| 9.73 | 42.18 | 6.19 | 26.78 | -13.31 | 138.90 | 37.45 | 250.61 | 0.6295 | 882.4 | 468.4 | |
| 5.32 | 11.45 | 3.38 | 7.28 | -13.88 | 138.77 | 37.32 | 249.69 | 0.6298 | 763.3 | 451.8 | |
| 6.31 | -2.00 | 3.99 | -2.00 | -13.54 | 138.36 | 36.90 | 250.04 | 0.6233 | 948.3 | 999999 | |
| 1.26 | -3.00 | 0.80 | -3.00 | -13.94 | 138.43 | 36.97 | 249.44 | 0.6257 | 747.0 | 999999 | |
| 0.63 | 3.06 | 0.40 | 1.94 | -14.26 | 138.18 | 36.72 | 248.85 | 0.6236 | 725.6 | 567.5 | |
| 1.08 | 10.91 | 0.68 | 6.86 | -13.61 | 137.71 | 36.25 | 249.66 | 0.6151 | 901.3 | 740.7 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -13.86 | 137.52 | 36.06 | 249.18 | 0.6136 | 759.0 | 707.1 | |
| 4.15 | 15.05 | 2.60 | 9.42 | -14.37 | 137.38 | 35.92 | 248.33 | 0.6137 | 930.3 | 696.2 | |
| 0.00 | 2.70 | 0.00 | 1.67 | -12.07 | 136.95 | 35.50 | 251.81 | 0.5999 | 49.0 | 192.7 | |
| 1.62 | 4.24 | 0.99 | 2.60 | -13.33 | 135.93 | 34.47 | 249.34 | 0.5908 | -672.3 | -440.1 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -10.32 | 134.87 | 33.42 | 253.96 | 0.5659 | 607.0 | 489.6 | |
| 0.00 | 2.16 | 0.00 | 1.31 | -13.78 | 135.06 | 33.60 | 248.19 | 0.5811 | -501.0 | -260.1 | |
| 1.89 | 3.52 | 1.14 | 2.12 | -13.16 | 134.77 | 33.32 | 249.08 | 0.5748 | -600.2 | -438.5 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -13.69 | 134.67 | 33.21 | 248.14 | 0.5756 | -45.0 | -150.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -12.98 | 134.45 | 32.99 | 249.23 | 0.5697 | -774.0 | -653.6 | |
| 6.85 | 53.99 | 4.13 | 32.41 | -14.04 | 134.24 | 32.78 | 247.34 | 0.5714 | -760.0 | -544.4 | |
| 0.27 | -17.00 | 0.16 | -17.00 | -14.19 | 134.08 | 32.62 | 246.99 | 0.5700 | -755.0 | 999999 | |
| 6.22 | -17.00 | 3.73 | -17.00 | -14.01 | 133.83 | 32.37 | 247.16 | 0.5658 | -900.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -15.10 | 134.01 | 32.55 | 245.44 | 0.5733 | -591.0 | -465.1 | |
| 0.72 | -17.00 | 0.43 | -17.00 | -13.92 | 133.63 | 32.17 | 247.21 | 0.5627 | -1000.8 | 999999 | |
| 10.73 | -17.00 | 6.40 | -17.00 | -13.83 | 133.50 | 32.05 | 247.29 | 0.5606 | -1004.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -14.70 | 133.57 | 32.11 | 245.86 | 0.5656 | -877.0 | -720.7 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -15.42 | 133.43 | 31.97 | 244.58 | 0.5673 | -740.0 | -598.9 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -15.11 | 133.37 | 31.92 | 245.06 | 0.5650 | -679.0 | -586.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
