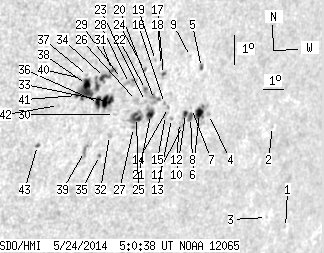

SDO HMI 2014-05-24 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.50 | 173.17 | 36.38 | 133.08 | -18.39 | 148.72 | 47.81 | 247.05 | 0.7652 | 180.6 | 247.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.89 | -22.21 | 158.70 | 57.79 | 245.09 | 0.8657 | -244.0 | -199.6 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -19.00 | 156.10 | 55.19 | 248.22 | 0.8381 | 191.0 | 289.3 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -21.91 | 157.36 | 56.45 | 245.12 | 0.8543 | -443.0 | -454.0 | |
| 0.00 | 2.07 | 0.00 | 1.72 | -18.69 | 152.49 | 51.59 | 247.75 | 0.8042 | -207.0 | -201.7 | |
| 1.08 | 2.79 | 0.87 | 2.25 | -17.21 | 151.54 | 50.64 | 249.32 | 0.7916 | 536.9 | 394.6 | |
| 5.50 | 13.88 | 4.51 | 11.41 | -18.67 | 152.02 | 51.11 | 247.65 | 0.7995 | 660.0 | 302.7 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -18.52 | 151.55 | 50.64 | 247.71 | 0.7946 | 597.0 | 522.2 | |
| 1.98 | 8.20 | 1.61 | 6.66 | -18.80 | 151.62 | 50.71 | 247.38 | 0.7959 | 548.2 | 461.3 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -16.88 | 150.87 | 49.96 | 249.57 | 0.7840 | 643.0 | 487.7 | |
| 1.98 | -8.00 | 1.60 | -8.00 | -18.68 | 151.31 | 50.41 | 247.45 | 0.7926 | 656.0 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.68 | -19.06 | 151.32 | 50.41 | 246.98 | 0.7936 | 366.0 | 366.6 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -18.97 | 151.13 | 50.22 | 247.04 | 0.7915 | 481.0 | 489.8 | |
| 0.00 | 1.17 | 0.00 | 0.94 | -18.85 | 150.68 | 49.77 | 247.06 | 0.7868 | 448.0 | 466.7 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -18.51 | 150.39 | 49.48 | 247.41 | 0.7831 | 602.0 | 532.2 | |
| 0.00 | 2.97 | 0.00 | 2.36 | -18.76 | 150.35 | 49.44 | 247.08 | 0.7832 | 290.0 | 369.7 | |
| 0.00 | 1.17 | 0.00 | 0.92 | -18.38 | 150.15 | 49.24 | 247.50 | 0.7803 | 627.0 | 519.8 | |
| 0.81 | 2.70 | 0.63 | 2.11 | -17.47 | 149.76 | 48.85 | 248.54 | 0.7740 | 742.3 | 592.1 | |
| 0.00 | 2.43 | 0.00 | 1.89 | -17.19 | 149.56 | 48.65 | 248.84 | 0.7713 | 631.0 | 537.9 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -17.04 | 149.22 | 48.31 | 248.94 | 0.7674 | 660.0 | 615.1 | |
| 0.00 | 7.75 | 0.00 | 6.04 | -18.27 | 149.61 | 48.71 | 247.49 | 0.7745 | 594.0 | 567.9 | |
| 4.24 | 8.74 | 3.31 | 6.83 | -18.75 | 149.60 | 48.69 | 246.89 | 0.7757 | 640.1 | 406.0 | |
| 0.72 | 2.61 | 0.56 | 2.01 | -17.96 | 149.06 | 48.16 | 247.72 | 0.7681 | 735.8 | 544.9 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -18.34 | 149.20 | 48.30 | 247.28 | 0.7705 | 459.0 | 339.0 | |
| 0.36 | 1.62 | 0.28 | 1.24 | -17.33 | 148.79 | 47.89 | 248.45 | 0.7636 | 566.5 | 504.6 | |
| 5.32 | 13.07 | 4.11 | 10.09 | -18.85 | 148.96 | 48.05 | 246.56 | 0.7695 | 745.4 | 592.8 | |
| 0.00 | 3.79 | 0.00 | 2.90 | -18.31 | 148.76 | 47.85 | 247.18 | 0.7659 | 351.0 | 308.8 | |
| 0.00 | 1.44 | 0.00 | 1.12 | -19.17 | 148.94 | 48.03 | 246.15 | 0.7701 | 367.0 | 343.0 | |
| 0.00 | 9.01 | 0.00 | 6.83 | -17.78 | 148.24 | 47.33 | 247.70 | 0.7590 | 546.0 | 400.3 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -17.63 | 147.81 | 46.90 | 247.77 | 0.7541 | 290.0 | 360.7 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -18.78 | 147.88 | 46.98 | 246.32 | 0.7581 | 195.0 | 174.5 | |
| 0.99 | 9.73 | 0.74 | 7.22 | -17.39 | 147.31 | 46.40 | 247.93 | 0.7480 | -534.7 | -385.9 | |
| 0.00 | 2.43 | 0.00 | 1.85 | -19.45 | 147.90 | 46.99 | 245.47 | 0.7602 | 226.0 | 165.6 | |
| 9.10 | 23.53 | 6.81 | 17.57 | -18.37 | 147.41 | 46.50 | 246.69 | 0.7519 | -443.3 | -6.8 | |
| 3.52 | -31.00 | 2.60 | -31.00 | -17.62 | 147.02 | 46.11 | 247.54 | 0.7455 | -621.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -20.09 | 147.67 | 46.76 | 244.57 | 0.7599 | -393.0 | -399.7 | |
| 4.60 | -33.00 | 3.42 | -33.00 | -18.41 | 147.01 | 46.10 | 246.51 | 0.7477 | -640.3 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.12 | -17.57 | 146.22 | 45.31 | 247.35 | 0.7367 | -609.0 | -424.6 | |
| 5.41 | 29.65 | 3.96 | 21.74 | -17.85 | 146.27 | 45.36 | 246.99 | 0.7381 | -660.0 | -21.0 | |
| 0.00 | 5.50 | 0.00 | 4.12 | -19.98 | 146.92 | 46.01 | 244.46 | 0.7517 | 677.0 | 395.6 | |
| 0.00 | 1.44 | 0.00 | 1.05 | -17.67 | 145.93 | 45.03 | 247.13 | 0.7339 | -145.0 | -138.1 | |
| 1.26 | -38.00 | 0.92 | -38.00 | -18.21 | 145.93 | 45.02 | 246.41 | 0.7355 | 684.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -18.54 | 145.22 | 44.32 | 245.73 | 0.7289 | 650.0 | 546.5 | |
| 0.63 | 2.07 | 0.45 | 1.49 | -19.83 | 144.71 | 43.81 | 243.84 | 0.7278 | 689.7 | 567.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
