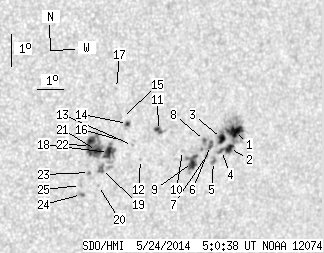

SDO HMI 2014-05-24 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.62 | 163.40 | 39.64 | 101.95 | -13.82 | 136.61 | 35.70 | 249.01 | 0.6087 | -19.4 | 93.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.35 | 61.02 | 7.92 | 39.07 | -13.33 | 138.91 | 38.00 | 250.78 | 0.6367 | 868.0 | 401.4 | |
| 4.96 | -1.00 | 3.18 | -1.00 | -13.86 | 138.81 | 37.90 | 249.93 | 0.6373 | 756.7 | 999999 | |
| 5.14 | -1.00 | 3.28 | -1.00 | -13.56 | 138.44 | 37.53 | 250.25 | 0.6315 | 974.5 | 999999 | |
| 1.26 | -1.00 | 0.81 | -1.00 | -13.93 | 138.51 | 37.60 | 249.71 | 0.6336 | 733.5 | 999999 | |
| 0.81 | 3.88 | 0.52 | 2.47 | -14.28 | 138.26 | 37.35 | 249.08 | 0.6317 | 696.0 | 557.6 | |
| 2.07 | 12.62 | 1.32 | 7.99 | -13.78 | 138.05 | 37.14 | 249.75 | 0.6272 | 881.2 | 770.2 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -14.09 | 137.95 | 37.04 | 249.23 | 0.6271 | 746.0 | 679.3 | |
| 0.81 | -6.00 | 0.51 | -6.00 | -13.63 | 137.78 | 36.87 | 249.88 | 0.6233 | 998.0 | 999999 | |
| 7.21 | 13.97 | 4.55 | 8.81 | -14.32 | 137.44 | 36.53 | 248.67 | 0.6215 | 925.0 | 669.7 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -13.95 | 136.98 | 36.08 | 249.04 | 0.6142 | 352.0 | 278.7 | |
| 2.52 | 5.23 | 1.56 | 3.23 | -13.35 | 135.95 | 35.05 | 249.56 | 0.5985 | -758.2 | -520.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -14.26 | 135.42 | 34.51 | 247.84 | 0.5952 | -442.0 | -347.9 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -13.83 | 135.05 | 34.14 | 248.36 | 0.5884 | -423.0 | -418.2 | |
| 1.44 | 2.79 | 0.88 | 1.70 | -13.15 | 134.75 | 33.84 | 249.33 | 0.5817 | -652.2 | -573.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -12.96 | 134.53 | 33.62 | 249.54 | 0.5781 | -611.0 | -601.0 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -13.68 | 134.61 | 33.70 | 248.39 | 0.5820 | -147.0 | -210.7 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -12.07 | 134.18 | 33.27 | 250.88 | 0.5699 | -695.0 | -539.8 | |
| 7.48 | 46.24 | 4.53 | 27.90 | -14.06 | 134.18 | 33.27 | 247.55 | 0.5780 | -792.3 | -527.1 | |
| 0.00 | 4.42 | 0.00 | 2.68 | -14.59 | 134.01 | 33.10 | 246.58 | 0.5781 | -766.0 | -703.0 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -15.09 | 133.98 | 33.07 | 245.75 | 0.5800 | -565.0 | -489.6 | |
| 8.29 | -18.00 | 5.00 | -18.00 | -14.00 | 133.72 | 32.81 | 247.41 | 0.5717 | -913.7 | 999999 | |
| 9.28 | -18.00 | 5.58 | -18.00 | -13.85 | 133.47 | 32.57 | 247.53 | 0.5677 | -994.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -14.69 | 133.57 | 32.66 | 246.18 | 0.5729 | -808.0 | -731.6 | |
| 0.00 | 2.70 | 0.00 | 1.63 | -15.38 | 133.39 | 32.48 | 244.94 | 0.5738 | -856.0 | -598.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -15.10 | 133.31 | 32.40 | 245.35 | 0.5713 | -636.0 | -552.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
