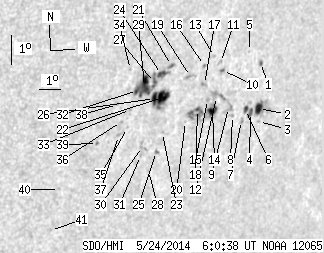

SDO HMI 2014-05-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.75 | 188.97 | 45.83 | 146.60 | -18.46 | 148.69 | 48.33 | 247.11 | 0.7709 | 208.8 | 282.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 2.43 | 0.59 | 1.99 | -17.16 | 151.58 | 51.22 | 249.52 | 0.7973 | 553.1 | 438.6 | |
| 6.13 | 29.93 | 5.10 | 24.86 | -18.62 | 152.07 | 51.71 | 247.86 | 0.8052 | 645.9 | 192.2 | |
| 0.00 | 1.17 | 0.00 | 0.98 | -19.03 | 152.25 | 51.89 | 247.41 | 0.8078 | 302.0 | 173.7 | |
| 2.34 | -2.00 | 1.93 | -2.00 | -18.75 | 151.71 | 51.35 | 247.61 | 0.8021 | 528.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -16.83 | 150.90 | 50.54 | 249.77 | 0.7898 | 574.0 | 535.3 | |
| 2.07 | -2.00 | 1.70 | -2.00 | -18.66 | 151.42 | 51.06 | 247.64 | 0.7990 | 696.8 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.85 | -19.01 | 151.36 | 51.00 | 247.19 | 0.7993 | 540.0 | 446.7 | |
| 0.00 | 1.35 | 0.00 | 1.10 | -18.86 | 150.84 | 50.48 | 247.24 | 0.7938 | 596.0 | 556.0 | |
| 0.00 | 6.76 | 0.00 | 5.44 | -18.61 | 150.53 | 50.17 | 247.46 | 0.7902 | 475.0 | 499.5 | |
| 0.63 | 1.89 | 0.50 | 1.49 | -17.45 | 149.79 | 49.43 | 248.71 | 0.7799 | 755.3 | 630.9 | |
| 0.00 | 2.25 | 0.00 | 1.77 | -17.20 | 149.60 | 49.24 | 248.97 | 0.7774 | 692.0 | 558.5 | |
| 0.00 | 9.19 | 0.00 | 7.28 | -18.28 | 149.80 | 49.44 | 247.68 | 0.7821 | 559.0 | 534.7 | |
| 0.00 | 0.90 | 0.00 | 0.70 | -17.02 | 149.24 | 48.88 | 249.11 | 0.7733 | 647.0 | 593.1 | |
| 5.86 | 30.65 | 4.65 | 24.10 | -18.73 | 149.78 | 49.42 | 247.12 | 0.7830 | 721.8 | 527.0 | |
| 0.00 | 1.89 | 0.00 | 1.49 | -18.38 | 149.40 | 49.04 | 247.44 | 0.7783 | 113.0 | 144.0 | |
| 0.00 | 1.17 | 0.00 | 0.91 | -17.31 | 148.86 | 48.50 | 248.64 | 0.7700 | 627.0 | 573.1 | |
| 0.00 | 2.43 | 0.00 | 1.89 | -17.91 | 149.08 | 48.72 | 247.94 | 0.7738 | 820.0 | 593.4 | |
| 0.99 | -14.00 | 0.77 | -14.00 | -18.71 | 149.03 | 48.67 | 246.92 | 0.7754 | 672.2 | 999999 | |
| 0.00 | 3.70 | 0.00 | 2.83 | -17.67 | 148.31 | 47.95 | 248.02 | 0.7653 | 791.0 | 577.0 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -19.10 | 148.60 | 48.24 | 246.30 | 0.7721 | 378.0 | 404.3 | |
| 0.90 | 3.06 | 0.68 | 2.30 | -17.34 | 147.30 | 46.94 | 248.15 | 0.7537 | -495.7 | -364.9 | |
| 11.45 | 28.12 | 8.63 | 21.17 | -18.36 | 147.23 | 46.87 | 246.82 | 0.7558 | -484.9 | 58.7 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -19.47 | 147.64 | 47.28 | 245.53 | 0.7633 | -98.0 | -139.6 | |
| 3.52 | 40.56 | 2.63 | 30.07 | -17.63 | 146.93 | 46.57 | 247.66 | 0.7506 | -647.5 | -279.3 | |
| 0.00 | 1.62 | 0.00 | 1.24 | -20.08 | 147.59 | 47.23 | 244.74 | 0.7646 | -418.0 | -367.4 | |
| 4.96 | -22.00 | 3.71 | -22.00 | -18.40 | 146.87 | 46.51 | 246.65 | 0.7521 | -634.2 | 999999 | |
| 2.61 | -24.00 | 1.95 | -24.00 | -17.89 | 146.69 | 46.33 | 247.25 | 0.7488 | -769.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -20.69 | 147.45 | 47.09 | 243.92 | 0.7652 | 409.0 | 391.3 | |
| 14.60 | -24.00 | 10.80 | -24.00 | -18.03 | 146.28 | 45.92 | 246.94 | 0.7447 | -9.3 | 999999 | |
| 0.00 | 3.70 | 0.00 | 2.79 | -19.93 | 146.87 | 46.51 | 244.68 | 0.7568 | 480.0 | 217.5 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -20.22 | 146.89 | 46.53 | 244.32 | 0.7578 | 521.0 | 457.6 | |
| 2.97 | -24.00 | 2.19 | -24.00 | -18.16 | 146.00 | 45.64 | 246.68 | 0.7421 | 555.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -18.77 | 145.89 | 45.53 | 245.85 | 0.7427 | 683.0 | 569.5 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -17.50 | 145.47 | 45.11 | 247.37 | 0.7343 | 551.0 | 434.8 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -19.34 | 145.95 | 45.59 | 245.13 | 0.7452 | 526.0 | 445.4 | |
| 0.00 | 1.26 | 0.00 | 0.93 | -19.15 | 145.61 | 45.25 | 245.25 | 0.7410 | 535.0 | 501.9 | |
| 0.00 | 1.62 | 0.00 | 1.20 | -19.60 | 145.63 | 45.27 | 244.67 | 0.7427 | 582.0 | 508.5 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -18.62 | 145.24 | 44.88 | 245.82 | 0.7353 | 728.0 | 572.6 | |
| 0.00 | 1.53 | 0.00 | 1.11 | -19.87 | 144.77 | 44.41 | 244.00 | 0.7345 | 742.0 | 541.3 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -21.38 | 143.60 | 43.24 | 241.57 | 0.7276 | 601.0 | 475.1 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -22.71 | 143.70 | 43.34 | 239.89 | 0.7341 | 588.0 | 455.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
