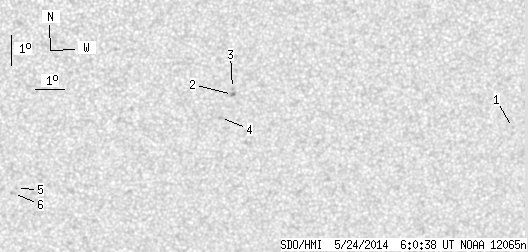

SDO HMI 2014-05-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.83 | 0.00 | 4.30 | -25.64 | 107.51 | 7.15 | 195.31 | 0.4310 | 291.2 | 256.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.41 | -25.39 | 118.77 | 18.41 | 215.20 | 0.4970 | 689.0 | 573.5 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -24.34 | 109.00 | 8.64 | 199.49 | 0.4120 | 1028.0 | 827.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -24.15 | 108.99 | 8.63 | 199.64 | 0.4090 | 831.0 | 768.8 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -25.10 | 108.65 | 8.29 | 198.12 | 0.4215 | 764.0 | 568.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -27.49 | 101.81 | 1.45 | 182.94 | 0.4388 | -850.0 | -664.0 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -27.65 | 101.71 | 1.35 | 182.71 | 0.4414 | -715.0 | -670.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
