SDO HMI 2014-05-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.42 | 259.11 | 30.24 | 138.66 | -10.75 | 80.37 | -19.99 | 116.01 | 0.3736 | -7.7 | -36.1 | |
|
previous
or next observation for the same group /

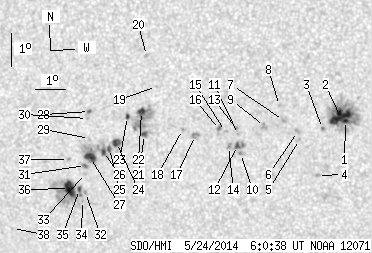

back to the solar disc SDO HMI 2014-05-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.34 | 75.36 | 1.21 | 39.04 | -10.15 | 85.54 | -14.82 | 120.68 | 0.2940 | 1198.7 | 482.2 | |
| 16.59 | -1.00 | 8.60 | -1.00 | -10.02 | 85.39 | -14.97 | 120.07 | 0.2952 | 1240.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -10.39 | 84.80 | -15.56 | 120.20 | 0.3067 | 779.0 | 687.9 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -11.83 | 84.55 | -15.81 | 123.80 | 0.3222 | 858.0 | 734.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.72 | 84.04 | -16.32 | 120.00 | 0.3202 | 851.0 | 650.8 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -10.47 | 83.99 | -16.37 | 119.24 | 0.3190 | 944.0 | 746.6 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -10.13 | 83.56 | -16.80 | 117.69 | 0.3228 | 851.0 | 753.8 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -9.67 | 83.45 | -16.91 | 116.25 | 0.3210 | 806.0 | 561.1 | |
| 0.00 | 4.24 | 0.00 | 2.23 | -10.31 | 82.93 | -17.43 | 117.36 | 0.3332 | 734.0 | 674.8 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -11.13 | 82.10 | -18.26 | 118.48 | 0.3512 | 912.0 | 744.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -10.55 | 82.08 | -18.28 | 116.94 | 0.3475 | 829.0 | 676.4 | |
| 1.62 | 5.23 | 0.86 | 2.76 | -10.88 | 82.02 | -18.34 | 117.75 | 0.3506 | 1062.0 | 935.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.36 | 82.02 | -18.34 | 116.39 | 0.3470 | 1015.0 | 827.9 | |
| 0.00 | 2.52 | 0.00 | 1.34 | -10.91 | 81.73 | -18.63 | 117.46 | 0.3551 | 776.0 | 646.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -10.45 | 81.66 | -18.70 | 116.20 | 0.3529 | 752.0 | 648.0 | |
| 0.00 | 3.15 | 0.00 | 1.67 | -10.39 | 81.47 | -18.89 | 115.81 | 0.3553 | 963.0 | 754.1 | |
| 0.00 | 4.51 | 0.00 | 2.40 | -10.56 | 80.67 | -19.69 | 115.39 | 0.3682 | 878.0 | 787.1 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -10.37 | 80.26 | -20.10 | 114.49 | 0.3731 | 819.0 | 572.4 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -9.05 | 79.49 | -20.87 | 110.45 | 0.3772 | 695.0 | 536.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -8.09 | 79.21 | -21.15 | 107.82 | 0.3768 | -906.0 | -748.6 | |
| 1.71 | 38.76 | 0.92 | 20.85 | -10.51 | 78.99 | -21.37 | 113.62 | 0.3927 | -1006.9 | -611.0 | |
| 3.61 | -21.00 | 1.94 | -21.00 | -9.81 | 78.94 | -21.42 | 111.88 | 0.3894 | -1117.0 | 999999 | |
| 1.44 | -21.00 | 0.78 | -21.00 | -9.95 | 78.47 | -21.89 | 111.83 | 0.3973 | 518.1 | 999999 | |
| 4.33 | 43.54 | 2.35 | 23.72 | -10.75 | 78.04 | -22.32 | 113.33 | 0.4080 | -1077.5 | -681.3 | |
| 1.62 | -24.00 | 0.88 | -24.00 | -10.93 | 77.79 | -22.57 | 113.53 | 0.4127 | -1085.8 | 999999 | |
| 1.98 | -24.00 | 1.08 | -24.00 | -11.02 | 77.58 | -22.78 | 113.55 | 0.4163 | -1003.4 | 999999 | |
| 6.76 | -24.00 | 3.69 | -24.00 | -11.20 | 77.13 | -23.23 | 113.57 | 0.4239 | -1030.1 | 999999 | |
| 0.63 | 1.80 | 0.34 | 0.98 | -9.79 | 77.21 | -23.15 | 110.45 | 0.4152 | -1010.9 | -839.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -10.61 | 77.14 | -23.22 | 112.28 | 0.4205 | -165.0 | -148.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -10.00 | 77.13 | -23.23 | 110.88 | 0.4175 | -810.0 | -625.1 | |
| 0.81 | 2.34 | 0.44 | 1.28 | -11.44 | 76.94 | -23.42 | 113.95 | 0.4281 | -829.1 | -719.6 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -12.28 | 76.86 | -23.50 | 115.69 | 0.4341 | -926.0 | -797.8 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -11.69 | 76.92 | -23.44 | 114.47 | 0.4298 | -574.0 | -509.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -12.52 | 76.74 | -23.62 | 116.10 | 0.4374 | -785.0 | -692.5 | |
| 1.35 | 50.48 | 0.74 | 27.87 | -12.18 | 76.67 | -23.69 | 115.31 | 0.4363 | -940.4 | -302.0 | |
| 11.63 | -35.00 | 6.41 | -35.00 | -12.15 | 76.33 | -24.03 | 114.96 | 0.4409 | -1092.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.25 | 76.38 | -23.98 | 113.08 | 0.4351 | -813.0 | -629.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -13.36 | 74.24 | -26.12 | 115.73 | 0.4774 | -641.0 | -521.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
