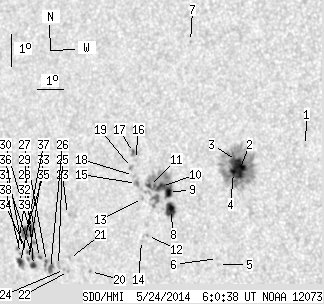

SDO HMI 2014-05-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.10 | 267.03 | 45.66 | 167.13 | -11.22 | 63.82 | -36.54 | 106.45 | 0.6100 | 233.1 | 251.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.53 | -9.74 | 69.45 | -30.91 | 106.03 | 0.5288 | -534.0 | -434.0 | |
| 14.69 | 112.40 | 8.81 | 67.47 | -10.44 | 66.96 | -33.40 | 106.28 | 0.5661 | 1128.2 | 435.9 | |
| 5.05 | -2.00 | 3.03 | -2.00 | -10.16 | 66.89 | -33.47 | 105.77 | 0.5663 | 978.0 | 999999 | |
| 4.78 | -2.00 | 2.87 | -2.00 | -10.53 | 66.73 | -33.63 | 106.35 | 0.5696 | 932.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -13.36 | 65.75 | -34.61 | 110.67 | 0.5928 | 547.0 | 438.5 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -13.17 | 65.75 | -34.61 | 110.36 | 0.5922 | 626.0 | 541.9 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -6.50 | 65.55 | -34.81 | 99.04 | 0.5765 | -640.0 | -569.6 | |
| 10.01 | 13.07 | 6.23 | 8.13 | -11.63 | 64.19 | -36.17 | 107.23 | 0.6074 | 948.5 | 652.4 | |
| 5.32 | 61.02 | 3.30 | 38.06 | -11.10 | 64.20 | -36.16 | 106.39 | 0.6058 | 1115.7 | 515.1 | |
| 5.77 | -9.00 | 3.59 | -9.00 | -10.92 | 63.95 | -36.41 | 106.00 | 0.6085 | 998.6 | 999999 | |
| 1.71 | -9.00 | 1.07 | -9.00 | -10.88 | 63.50 | -36.86 | 105.79 | 0.6145 | 703.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -12.42 | 63.18 | -37.18 | 108.11 | 0.6233 | 535.0 | 556.8 | |
| 0.00 | 1.35 | 0.00 | 0.85 | -11.27 | 63.16 | -37.20 | 106.31 | 0.6200 | 579.0 | 440.7 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -12.57 | 62.91 | -37.45 | 108.25 | 0.6271 | 590.0 | 453.2 | |
| 0.00 | 3.79 | 0.00 | 2.39 | -10.81 | 63.00 | -37.36 | 105.52 | 0.6208 | 662.0 | 476.9 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -10.07 | 63.07 | -37.29 | 104.36 | 0.6180 | 753.0 | 639.3 | |
| 1.08 | 4.15 | 0.68 | 2.61 | -9.85 | 63.02 | -37.34 | 104.00 | 0.6182 | -243.2 | 115.7 | |
| 0.00 | 1.44 | 0.00 | 0.91 | -10.56 | 62.92 | -37.44 | 105.10 | 0.6212 | 612.0 | 496.7 | |
| 0.00 | 2.34 | 0.00 | 1.48 | -10.31 | 62.88 | -37.48 | 104.70 | 0.6212 | 677.0 | 525.8 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -13.49 | 60.70 | -39.66 | 108.87 | 0.6581 | -821.0 | -720.5 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -13.07 | 59.93 | -40.43 | 108.00 | 0.6665 | 319.0 | 194.2 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -13.47 | 59.81 | -40.55 | 108.55 | 0.6692 | -691.0 | -567.2 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -11.71 | 60.10 | -40.26 | 106.04 | 0.6607 | 419.0 | 456.2 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -13.41 | 59.65 | -40.71 | 108.40 | 0.6709 | -757.0 | -684.8 | |
| 0.00 | 2.79 | 0.00 | 1.87 | -13.28 | 59.43 | -40.93 | 108.15 | 0.6732 | -804.0 | -711.3 | |
| 2.88 | 9.19 | 1.94 | 6.18 | -13.37 | 59.08 | -41.28 | 108.16 | 0.6778 | -836.2 | -613.3 | |
| 0.63 | -26.00 | 0.42 | -26.00 | -13.15 | 58.96 | -41.40 | 107.81 | 0.6787 | -850.0 | 999999 | |
| 0.90 | 15.32 | 0.61 | 10.39 | -13.02 | 58.70 | -41.66 | 107.54 | 0.6816 | -825.4 | -574.4 | |
| 2.88 | -28.00 | 1.96 | -28.00 | -13.26 | 58.39 | -41.97 | 107.80 | 0.6859 | -628.4 | 999999 | |
| 0.81 | 1.71 | 0.55 | 1.16 | -12.55 | 58.54 | -41.82 | 106.82 | 0.6822 | -921.4 | -799.2 | |
| 1.44 | -28.00 | 0.98 | -28.00 | -12.98 | 58.41 | -41.95 | 107.40 | 0.6849 | -822.2 | 999999 | |
| 3.15 | 16.13 | 2.13 | 10.91 | -12.12 | 58.54 | -41.82 | 106.19 | 0.6811 | -933.3 | -658.3 | |
| 0.54 | -28.00 | 0.37 | -28.00 | -13.07 | 58.22 | -42.14 | 107.48 | 0.6875 | -530.7 | 999999 | |
| 0.54 | -28.00 | 0.37 | -28.00 | -12.85 | 58.23 | -42.13 | 107.17 | 0.6869 | -713.8 | 999999 | |
| 5.95 | -32.00 | 4.03 | -32.00 | -12.23 | 58.27 | -42.09 | 106.29 | 0.6848 | -718.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -12.73 | 58.04 | -42.32 | 106.93 | 0.6888 | -466.0 | -397.6 | |
| 3.61 | 7.30 | 2.47 | 4.99 | -13.16 | 57.87 | -42.49 | 107.50 | 0.6920 | -562.5 | -328.3 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -12.88 | 57.92 | -42.44 | 107.12 | 0.6906 | -542.0 | -441.3 | |
| 0.36 | 1.53 | 0.25 | 1.05 | -12.72 | 57.83 | -42.53 | 106.87 | 0.6913 | -435.2 | -260.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
