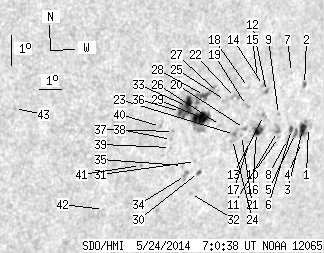

SDO HMI 2014-05-24 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.26 | 170.77 | 40.53 | 132.75 | -18.41 | 148.22 | 48.41 | 247.19 | 0.7715 | 200.4 | 230.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.38 | -18.53 | 152.43 | 52.62 | 248.19 | 0.8137 | -211.0 | -133.8 | |
| 1.08 | 2.34 | 0.90 | 1.94 | -17.18 | 151.66 | 51.85 | 249.65 | 0.8035 | 505.9 | 348.7 | |
| 6.04 | 14.87 | 5.09 | 12.52 | -18.60 | 152.14 | 52.33 | 248.03 | 0.8111 | 615.7 | 343.4 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -19.01 | 152.27 | 52.46 | 247.57 | 0.8133 | 295.0 | 209.1 | |
| 1.62 | -3.00 | 1.36 | -3.00 | -18.73 | 151.83 | 52.02 | 247.79 | 0.8085 | 554.4 | 999999 | |
| 1.71 | 3.25 | 1.42 | 2.70 | -18.61 | 151.57 | 51.76 | 247.88 | 0.8057 | 767.2 | 616.7 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -16.81 | 150.85 | 51.04 | 249.90 | 0.7948 | 498.0 | 445.0 | |
| 0.00 | 2.79 | 0.00 | 2.33 | -18.93 | 151.50 | 51.69 | 247.47 | 0.8058 | 573.0 | 423.2 | |
| 0.00 | 1.17 | 0.00 | 0.96 | -18.15 | 150.71 | 50.90 | 248.22 | 0.7963 | 600.0 | 507.5 | |
| 0.00 | 1.17 | 0.00 | 0.96 | -18.88 | 151.01 | 51.20 | 247.41 | 0.8009 | 643.0 | 582.2 | |
| 0.90 | 5.41 | 0.74 | 4.43 | -18.69 | 150.88 | 51.07 | 247.61 | 0.7992 | 772.6 | 588.0 | |
| 0.63 | 2.61 | 0.50 | 2.08 | -17.44 | 149.83 | 50.02 | 248.88 | 0.7859 | 711.3 | 620.0 | |
| 0.00 | 3.43 | 0.00 | 2.75 | -18.20 | 149.97 | 50.16 | 247.97 | 0.7891 | 794.0 | 596.9 | |
| 0.00 | 2.25 | 0.00 | 1.79 | -17.25 | 149.61 | 49.80 | 249.06 | 0.7833 | 756.0 | 600.0 | |
| 0.00 | 1.08 | 0.00 | 0.85 | -17.00 | 149.23 | 49.41 | 249.27 | 0.7788 | 658.0 | 598.1 | |
| 3.15 | 9.92 | 2.53 | 7.96 | -18.74 | 149.84 | 50.03 | 247.26 | 0.7891 | 820.0 | 578.2 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -19.06 | 149.62 | 49.81 | 246.80 | 0.7877 | 446.0 | 432.1 | |
| 0.00 | 0.99 | 0.00 | 0.78 | -17.33 | 148.90 | 49.09 | 248.77 | 0.7762 | 673.0 | 600.3 | |
| 0.00 | 2.70 | 0.00 | 2.13 | -17.90 | 149.01 | 49.20 | 248.09 | 0.7787 | 587.0 | 481.6 | |
| 0.36 | 2.52 | 0.29 | 2.00 | -18.62 | 149.19 | 49.38 | 247.23 | 0.7824 | 733.2 | 578.6 | |
| 0.00 | 1.08 | 0.00 | 0.86 | -18.85 | 149.13 | 49.32 | 246.93 | 0.7824 | 706.0 | 599.0 | |
| 0.00 | 3.88 | 0.00 | 3.01 | -17.65 | 148.39 | 48.58 | 248.22 | 0.7717 | 534.0 | 570.7 | |
| 0.54 | 2.61 | 0.43 | 2.06 | -18.82 | 148.78 | 48.97 | 246.86 | 0.7787 | 752.8 | 579.4 | |
| 0.00 | 1.71 | 0.00 | 1.35 | -18.98 | 148.74 | 48.93 | 246.65 | 0.7788 | 425.0 | 461.4 | |
| 0.00 | 3.52 | 0.00 | 2.70 | -17.76 | 147.94 | 48.13 | 247.96 | 0.7674 | 275.0 | 245.0 | |
| 0.00 | 2.16 | 0.00 | 1.67 | -18.55 | 147.99 | 48.18 | 246.97 | 0.7700 | 320.0 | 187.8 | |
| 0.00 | 2.07 | 0.00 | 1.58 | -17.51 | 147.48 | 47.66 | 248.14 | 0.7618 | 93.0 | 153.4 | |
| 3.61 | 75.18 | 2.72 | 56.58 | -17.62 | 146.90 | 47.08 | 247.83 | 0.7560 | -614.1 | -193.8 | |
| 15.77 | -28.00 | 11.95 | -28.00 | -18.32 | 146.95 | 47.14 | 246.95 | 0.7585 | -702.7 | 999999 | |
| 1.08 | 2.34 | 0.84 | 1.81 | -20.07 | 147.52 | 47.71 | 244.91 | 0.7695 | -357.6 | -206.1 | |
| 0.00 | 1.26 | 0.00 | 0.97 | -19.72 | 147.24 | 47.43 | 245.26 | 0.7656 | -112.0 | -126.1 | |
| 0.00 | 1.44 | 0.00 | 1.12 | -20.74 | 147.41 | 47.60 | 244.03 | 0.7704 | 369.0 | 327.8 | |
| 12.71 | -28.00 | 9.48 | -28.00 | -17.98 | 146.23 | 46.41 | 247.16 | 0.7499 | -38.4 | 999999 | |
| 0.00 | 4.69 | 0.00 | 3.58 | -20.17 | 146.94 | 47.13 | 244.59 | 0.7639 | 723.0 | 371.1 | |
| 0.00 | 2.61 | 0.00 | 1.99 | -19.86 | 146.67 | 46.86 | 244.90 | 0.7602 | 593.0 | 355.3 | |
| 3.06 | -28.00 | 2.28 | -28.00 | -18.14 | 145.96 | 46.14 | 246.86 | 0.7475 | 647.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -18.78 | 145.85 | 46.04 | 246.00 | 0.7483 | 750.0 | 617.8 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -19.04 | 145.85 | 46.04 | 245.67 | 0.7491 | 532.0 | 493.5 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -19.29 | 145.90 | 46.09 | 245.35 | 0.7504 | 459.0 | 379.3 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -18.63 | 145.20 | 45.39 | 245.97 | 0.7409 | 578.0 | 521.1 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -19.89 | 144.73 | 44.92 | 244.16 | 0.7400 | 538.0 | 525.9 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -21.33 | 143.57 | 43.76 | 241.85 | 0.7330 | 524.0 | 447.7 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -18.17 | 138.74 | 38.92 | 244.01 | 0.6664 | -487.0 | -394.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
