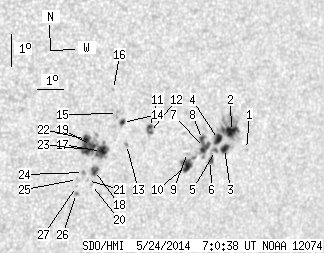

SDO HMI 2014-05-24 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.37 | 178.63 | 45.66 | 113.22 | -13.89 | 136.69 | 36.88 | 249.39 | 0.6242 | -59.0 | 135.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.77 | -13.91 | 139.78 | 39.97 | 250.61 | 0.6633 | -412.0 | -462.4 | |
| 9.01 | 104.38 | 5.88 | 67.62 | -13.36 | 139.06 | 39.25 | 251.17 | 0.6527 | 829.7 | 517.6 | |
| 4.69 | -2.00 | 3.06 | -2.00 | -13.89 | 138.88 | 39.07 | 250.31 | 0.6521 | 749.1 | 999999 | |
| 5.14 | -2.00 | 3.33 | -2.00 | -13.62 | 138.59 | 38.78 | 250.62 | 0.6475 | 1026.1 | 999999 | |
| 0.90 | -2.00 | 0.58 | -2.00 | -13.96 | 138.53 | 38.72 | 250.08 | 0.6480 | 760.4 | 999999 | |
| 1.98 | -2.00 | 1.29 | -2.00 | -14.27 | 138.40 | 38.58 | 249.56 | 0.6473 | 678.3 | 999999 | |
| 5.77 | -2.00 | 3.72 | -2.00 | -13.87 | 138.08 | 38.26 | 250.04 | 0.6419 | 932.1 | 999999 | |
| 2.43 | -2.00 | 1.56 | -2.00 | -13.63 | 137.95 | 38.14 | 250.36 | 0.6395 | 985.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -14.04 | 137.43 | 37.62 | 249.53 | 0.6343 | 164.0 | 236.4 | |
| 8.02 | -2.00 | 5.14 | -2.00 | -14.45 | 137.47 | 37.66 | 248.93 | 0.6363 | 872.9 | 999999 | |
| 1.62 | 7.03 | 1.01 | 4.39 | -13.29 | 135.81 | 36.00 | 250.04 | 0.6108 | -806.2 | -546.9 | |
| 1.53 | -11.00 | 0.96 | -11.00 | -13.44 | 135.84 | 36.02 | 249.81 | 0.6117 | -772.2 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -13.83 | 135.02 | 35.20 | 248.84 | 0.6025 | -565.0 | -380.1 | |
| 1.89 | 2.79 | 1.17 | 1.72 | -13.15 | 134.75 | 34.94 | 249.81 | 0.5964 | -744.4 | -555.1 | |
| 0.00 | 2.88 | 0.00 | 1.77 | -12.87 | 134.52 | 34.70 | 250.16 | 0.5922 | -598.0 | -508.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -12.13 | 134.25 | 34.44 | 251.26 | 0.5860 | -707.0 | -491.3 | |
| 9.37 | 42.28 | 5.75 | 25.82 | -14.06 | 134.10 | 34.29 | 248.04 | 0.5915 | -784.6 | -583.5 | |
| 3.52 | 5.95 | 2.16 | 3.65 | -14.65 | 133.94 | 34.13 | 246.99 | 0.5919 | -745.9 | -569.3 | |
| 3.43 | -17.00 | 2.09 | -17.00 | -13.88 | 133.69 | 33.88 | 248.13 | 0.5853 | -966.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -15.09 | 133.90 | 34.09 | 246.27 | 0.5934 | -535.0 | -435.1 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -14.97 | 133.73 | 33.92 | 246.38 | 0.5906 | -508.0 | -439.3 | |
| 5.05 | -17.00 | 3.07 | -17.00 | -13.69 | 133.47 | 33.66 | 248.33 | 0.5817 | -1005.2 | 999999 | |
| 8.02 | -17.00 | 4.89 | -17.00 | -14.00 | 133.53 | 33.71 | 247.84 | 0.5837 | -999.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.10 | -14.72 | 133.53 | 33.72 | 246.67 | 0.5869 | -905.0 | -738.5 | |
| 0.00 | 2.52 | 0.00 | 1.54 | -14.94 | 133.35 | 33.53 | 246.22 | 0.5855 | -735.0 | -558.5 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -15.38 | 133.39 | 33.57 | 245.53 | 0.5880 | -717.0 | -665.6 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -15.16 | 133.35 | 33.53 | 245.86 | 0.5865 | -679.0 | -546.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
