SDO HMI 2014-05-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.39 | 187.89 | 38.32 | 148.56 | -18.37 | 148.59 | 49.32 | 247.49 | 0.7808 | 187.8 | 230.8 | |
|
previous
or next observation for the same group /

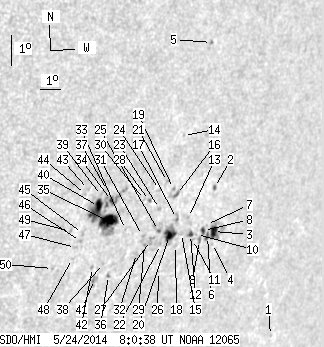

back to the solar disc SDO HMI 2014-05-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.27 | -21.80 | 157.23 | 57.96 | 245.57 | 0.8665 | -268.0 | -357.3 | |
| 0.63 | 1.89 | 0.53 | 1.59 | -17.16 | 151.68 | 52.41 | 249.79 | 0.8090 | 456.7 | 309.1 | |
| 5.68 | 25.24 | 4.85 | 21.56 | -18.55 | 152.21 | 52.95 | 248.23 | 0.8169 | 591.0 | 175.3 | |
| 0.00 | 0.72 | 0.00 | 0.62 | -18.93 | 152.33 | 53.07 | 247.80 | 0.8188 | 154.0 | 154.6 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -12.65 | 150.01 | 50.75 | 255.05 | 0.7843 | 416.0 | 396.5 | |
| 1.71 | -3.00 | 1.46 | -3.00 | -18.72 | 151.97 | 52.70 | 247.98 | 0.8149 | 508.5 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -18.34 | 151.75 | 52.48 | 248.38 | 0.8121 | 354.0 | 390.4 | |
| 1.71 | -3.00 | 1.44 | -3.00 | -18.53 | 151.67 | 52.41 | 248.13 | 0.8118 | 752.2 | 999999 | |
| 0.00 | 2.61 | 0.00 | 2.21 | -18.85 | 151.60 | 52.34 | 247.72 | 0.8118 | 552.0 | 483.6 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -18.66 | 151.36 | 52.10 | 247.89 | 0.8091 | 587.0 | 538.5 | |
| 0.00 | 1.35 | 0.00 | 1.13 | -18.83 | 151.22 | 51.96 | 247.66 | 0.8081 | 541.0 | 569.5 | |
| 1.71 | 3.34 | 1.43 | 2.78 | -18.67 | 151.05 | 51.79 | 247.81 | 0.8061 | 785.7 | 690.7 | |
| 0.00 | 1.26 | 0.00 | 1.04 | -18.14 | 150.72 | 51.46 | 248.38 | 0.8018 | 555.0 | 400.1 | |
| 0.00 | 1.08 | 0.00 | 0.86 | -15.57 | 149.51 | 50.25 | 251.27 | 0.7843 | 374.0 | 346.6 | |
| 0.00 | 1.44 | 0.00 | 1.19 | -18.65 | 150.58 | 51.31 | 247.71 | 0.8015 | 348.0 | 436.9 | |
| 0.99 | 5.41 | 0.80 | 4.35 | -17.42 | 149.83 | 50.56 | 249.03 | 0.7914 | 676.3 | 431.4 | |
| 0.00 | 3.97 | 0.00 | 3.23 | -18.18 | 150.13 | 50.86 | 248.17 | 0.7960 | 492.0 | 546.2 | |
| 0.00 | 1.71 | 0.00 | 1.41 | -19.03 | 150.43 | 51.17 | 247.20 | 0.8010 | 287.0 | 303.0 | |
| 0.00 | 1.53 | 0.00 | 1.23 | -17.24 | 149.61 | 50.34 | 249.21 | 0.7888 | 693.0 | 608.5 | |
| 7.93 | 14.96 | 6.46 | 12.18 | -18.72 | 149.99 | 50.73 | 247.47 | 0.7960 | 799.7 | 505.2 | |
| 0.00 | 1.44 | 0.00 | 1.15 | -17.02 | 149.23 | 49.96 | 249.38 | 0.7845 | 689.0 | 601.3 | |
| 0.00 | 1.17 | 0.00 | 0.95 | -19.02 | 149.66 | 50.39 | 247.02 | 0.7934 | 461.0 | 437.7 | |
| 0.00 | 1.53 | 0.00 | 1.22 | -17.88 | 149.15 | 49.89 | 248.29 | 0.7857 | 718.0 | 585.1 | |
| 0.00 | 1.44 | 0.00 | 1.14 | -17.28 | 148.93 | 49.66 | 248.98 | 0.7820 | 495.0 | 570.7 | |
| 0.45 | 3.70 | 0.36 | 2.96 | -18.58 | 149.38 | 50.11 | 247.48 | 0.7896 | 625.6 | 516.6 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -19.88 | 149.93 | 50.66 | 246.04 | 0.7982 | -237.0 | -255.3 | |
| 0.00 | 4.33 | 0.00 | 3.47 | -18.90 | 149.11 | 49.84 | 247.01 | 0.7877 | 398.0 | 494.9 | |
| 0.36 | 1.44 | 0.28 | 1.14 | -17.64 | 148.57 | 49.30 | 248.43 | 0.7792 | 627.5 | 541.9 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -19.07 | 148.87 | 49.61 | 246.74 | 0.7858 | 668.0 | 559.6 | |
| 0.00 | 1.17 | 0.00 | 0.92 | -17.61 | 148.31 | 49.05 | 248.40 | 0.7765 | 603.0 | 601.6 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -18.75 | 148.65 | 49.38 | 247.07 | 0.7827 | 432.0 | 458.4 | |
| 0.00 | 2.79 | 0.00 | 2.22 | -19.33 | 148.58 | 49.32 | 246.33 | 0.7836 | 212.0 | 181.3 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -18.58 | 147.75 | 48.48 | 247.02 | 0.7732 | -145.0 | -172.7 | |
| 2.07 | 75.18 | 1.58 | 57.10 | -17.67 | 146.75 | 47.48 | 247.88 | 0.7604 | -638.2 | -47.7 | |
| 18.39 | -34.00 | 14.04 | -34.00 | -18.34 | 146.84 | 47.58 | 247.05 | 0.7632 | -645.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.05 | -20.05 | 147.50 | 48.24 | 245.09 | 0.7748 | -438.0 | -345.7 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -17.36 | 146.45 | 47.19 | 248.19 | 0.7564 | -268.0 | -158.0 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -19.68 | 147.11 | 47.84 | 245.44 | 0.7697 | -420.0 | -267.0 | |
| 0.00 | 1.71 | 0.00 | 1.29 | -17.52 | 146.22 | 46.96 | 247.91 | 0.7544 | -390.0 | -395.5 | |
| 6.76 | -34.00 | 5.09 | -34.00 | -17.87 | 146.20 | 46.94 | 247.45 | 0.7552 | -436.1 | 999999 | |
| 0.00 | 4.87 | 0.00 | 3.76 | -20.19 | 146.88 | 47.62 | 244.72 | 0.7689 | 573.0 | 367.9 | |
| 0.00 | 1.35 | 0.00 | 1.04 | -19.81 | 146.63 | 47.37 | 245.12 | 0.7653 | 450.0 | 393.7 | |
| 0.00 | 1.26 | 0.00 | 0.94 | -17.35 | 145.56 | 46.30 | 247.94 | 0.7468 | 467.0 | 362.7 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -17.51 | 145.47 | 46.21 | 247.70 | 0.7464 | 565.0 | 483.2 | |
| 0.00 | 1.80 | 0.00 | 1.35 | -18.74 | 145.76 | 46.49 | 246.20 | 0.7530 | 467.0 | 552.7 | |
| 0.00 | 1.53 | 0.00 | 1.15 | -19.00 | 145.76 | 46.49 | 245.87 | 0.7537 | 696.0 | 636.6 | |
| 0.00 | 1.44 | 0.00 | 1.08 | -19.19 | 145.59 | 46.33 | 245.56 | 0.7526 | 709.0 | 607.8 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -19.54 | 145.58 | 46.32 | 245.11 | 0.7536 | 625.0 | 553.8 | |
| 0.00 | 1.62 | 0.00 | 1.20 | -18.69 | 145.18 | 45.92 | 246.07 | 0.7467 | 577.0 | 471.4 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -19.88 | 144.78 | 45.51 | 244.39 | 0.7462 | 582.0 | 493.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
