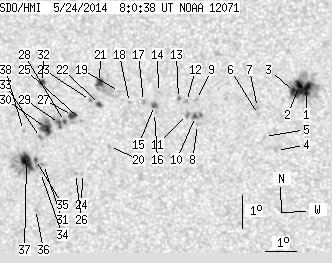

SDO HMI 2014-05-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.39 | 200.51 | 32.06 | 106.60 | -10.82 | 80.37 | -18.89 | 117.52 | 0.3583 | -17.5 | -81.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.10 | 62.29 | 5.20 | 32.10 | -10.05 | 85.63 | -13.63 | 122.49 | 0.2764 | 1316.5 | 504.5 | |
| 7.39 | -1.00 | 3.81 | -1.00 | -9.93 | 85.42 | -13.85 | 121.71 | 0.2784 | 1268.4 | 999999 | |
| 6.67 | -1.00 | 3.44 | -1.00 | -10.14 | 85.25 | -14.02 | 122.07 | 0.2826 | 940.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -11.92 | 84.58 | -14.68 | 125.99 | 0.3079 | 681.0 | 566.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.49 | 84.22 | -15.04 | 124.17 | 0.3088 | 802.0 | 635.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -10.81 | 84.07 | -15.20 | 122.02 | 0.3051 | 953.0 | 666.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.59 | 84.05 | -15.22 | 121.37 | 0.3035 | 978.0 | 802.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -11.10 | 82.08 | -17.18 | 119.84 | 0.3356 | 688.0 | 575.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.33 | 82.10 | -17.17 | 117.79 | 0.3297 | 940.0 | 629.2 | |
| 0.81 | 4.87 | 0.43 | 2.56 | -10.85 | 82.04 | -17.23 | 119.12 | 0.3344 | 1068.6 | 946.0 | |
| 0.00 | 2.70 | 0.00 | 1.42 | -10.79 | 81.78 | -17.49 | 118.61 | 0.3377 | 896.0 | 664.7 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -10.39 | 81.77 | -17.49 | 117.53 | 0.3349 | 953.0 | 708.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -10.29 | 81.52 | -17.75 | 116.95 | 0.3379 | 909.0 | 788.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.10 | 80.88 | -18.38 | 115.68 | 0.3460 | 740.0 | 599.1 | |
| 1.53 | 2.79 | 0.81 | 1.48 | -10.50 | 80.73 | -18.54 | 116.55 | 0.3510 | 1031.3 | 875.9 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -10.72 | 80.71 | -18.55 | 117.09 | 0.3527 | 394.0 | 443.0 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -10.37 | 80.37 | -18.89 | 115.82 | 0.3553 | 741.0 | 621.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -10.40 | 79.92 | -19.35 | 115.38 | 0.3622 | 628.0 | 421.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -10.06 | 79.61 | -19.65 | 114.19 | 0.3646 | -216.0 | -175.5 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -11.75 | 79.16 | -20.10 | 117.86 | 0.3823 | -970.0 | -705.7 | |
| 3.70 | 17.40 | 1.97 | 9.28 | -9.78 | 78.97 | -20.29 | 112.84 | 0.3725 | -1127.7 | -602.7 | |
| 1.62 | 2.97 | 0.87 | 1.59 | -10.45 | 78.93 | -20.34 | 114.48 | 0.3772 | -925.9 | -751.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -10.33 | 78.64 | -20.63 | 113.89 | 0.3807 | -948.0 | -782.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -12.57 | 78.20 | -21.07 | 118.71 | 0.4017 | -603.0 | -474.5 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -10.94 | 78.30 | -20.97 | 115.04 | 0.3894 | -674.0 | -661.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -12.57 | 77.96 | -21.30 | 118.46 | 0.4050 | -859.0 | -720.2 | |
| 3.52 | 7.39 | 1.89 | 3.98 | -10.78 | 78.01 | -21.25 | 114.39 | 0.3927 | -1091.9 | -760.3 | |
| 0.99 | 8.47 | 0.54 | 4.58 | -10.96 | 77.73 | -21.53 | 114.55 | 0.3979 | -1062.8 | -803.8 | |
| 1.98 | -28.00 | 1.07 | -28.00 | -11.02 | 77.56 | -21.71 | 114.53 | 0.4007 | -1052.5 | 999999 | |
| 7.48 | 18.21 | 4.06 | 9.87 | -11.17 | 77.11 | -22.15 | 114.47 | 0.4081 | -1016.6 | -674.7 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -12.28 | 76.92 | -22.35 | 116.77 | 0.4179 | -810.0 | -629.7 | |
| 1.98 | 4.60 | 1.07 | 2.48 | -9.76 | 77.09 | -22.18 | 111.15 | 0.4006 | -955.7 | -800.0 | |
| 0.00 | 2.52 | 0.00 | 1.37 | -11.45 | 76.89 | -22.38 | 114.89 | 0.4130 | -856.0 | -693.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -12.53 | 76.79 | -22.47 | 117.19 | 0.4212 | -760.0 | -571.5 | |
| 0.90 | 38.04 | 0.49 | 20.82 | -12.12 | 76.66 | -22.60 | 116.18 | 0.4205 | -993.8 | -373.1 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -13.67 | 76.51 | -22.75 | 119.34 | 0.4329 | -732.0 | -601.7 | |
| 11.72 | -35.00 | 6.41 | -35.00 | -12.18 | 76.35 | -22.91 | 116.03 | 0.4253 | -1080.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -11.22 | 76.34 | -22.93 | 113.91 | 0.4197 | -827.0 | -659.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
