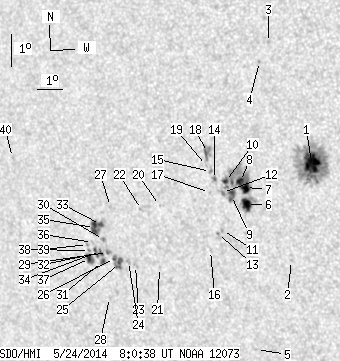

SDO HMI 2014-05-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.41 | 272.88 | 49.00 | 168.68 | -11.28 | 63.71 | -35.56 | 106.90 | 0.5972 | 239.9 | 230.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.80 | 107.72 | 14.11 | 63.88 | -10.39 | 66.91 | -32.36 | 106.61 | 0.5515 | 1061.8 | 447.9 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -13.40 | 65.75 | -33.52 | 111.26 | 0.5785 | 776.0 | 560.8 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -6.69 | 65.70 | -33.57 | 99.66 | 0.5592 | -709.0 | -532.4 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -7.27 | 65.32 | -33.95 | 100.58 | 0.5657 | -576.0 | -551.2 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -16.15 | 63.91 | -35.36 | 114.75 | 0.6143 | 477.0 | 398.6 | |
| 8.74 | 72.56 | 5.36 | 44.50 | -11.64 | 64.32 | -34.94 | 107.73 | 0.5911 | 991.2 | 483.6 | |
| 8.02 | -6.00 | 4.91 | -6.00 | -11.12 | 64.36 | -34.91 | 106.87 | 0.5889 | 1095.5 | 999999 | |
| 5.23 | -6.00 | 3.20 | -6.00 | -10.93 | 64.20 | -35.07 | 106.50 | 0.5906 | 1021.8 | 999999 | |
| 4.15 | -6.00 | 2.56 | -6.00 | -11.35 | 63.79 | -35.47 | 107.06 | 0.5973 | 821.6 | 999999 | |
| 2.16 | -6.00 | 1.33 | -6.00 | -10.92 | 63.63 | -35.64 | 106.28 | 0.5982 | 673.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -12.43 | 63.28 | -35.98 | 108.60 | 0.6076 | 657.0 | 557.0 | |
| 0.00 | 2.97 | 0.00 | 1.84 | -11.26 | 63.46 | -35.80 | 106.78 | 0.6014 | 650.0 | 483.5 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -12.52 | 63.08 | -36.19 | 108.66 | 0.6106 | 693.0 | 540.5 | |
| 0.72 | 2.52 | 0.45 | 1.56 | -10.85 | 63.22 | -36.05 | 106.03 | 0.6035 | 619.2 | 469.4 | |
| 0.00 | 1.98 | 0.00 | 1.23 | -10.60 | 63.10 | -36.17 | 105.59 | 0.6044 | 686.0 | 450.0 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -13.04 | 62.72 | -36.55 | 109.35 | 0.6171 | 582.0 | 418.6 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -11.25 | 62.97 | -36.30 | 106.59 | 0.6080 | 504.0 | 317.3 | |
| 0.00 | 10.10 | 0.00 | 6.26 | -10.02 | 63.06 | -36.20 | 104.62 | 0.6033 | 642.0 | 193.1 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -10.42 | 62.97 | -36.29 | 105.24 | 0.6056 | 491.0 | 421.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -11.61 | 60.96 | -38.31 | 106.50 | 0.6355 | -645.0 | -529.4 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -13.53 | 60.61 | -38.65 | 109.30 | 0.6457 | -824.0 | -593.2 | |
| 0.00 | 1.89 | 0.00 | 1.22 | -11.72 | 60.22 | -39.04 | 106.43 | 0.6453 | 557.0 | 374.3 | |
| 0.00 | 2.16 | 0.00 | 1.42 | -13.45 | 59.66 | -39.61 | 108.85 | 0.6574 | -753.0 | -612.6 | |
| 0.00 | 2.61 | 0.00 | 1.72 | -13.32 | 59.40 | -39.86 | 108.57 | 0.6603 | -809.0 | -675.4 | |
| 4.33 | 10.55 | 2.86 | 6.98 | -13.38 | 59.02 | -40.24 | 108.52 | 0.6651 | -789.4 | -643.6 | |
| 0.72 | -25.00 | 0.48 | -25.00 | -13.22 | 58.85 | -40.42 | 108.23 | 0.6668 | -784.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -11.61 | 58.99 | -40.28 | 105.90 | 0.6607 | -670.0 | -495.8 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -14.42 | 58.38 | -40.88 | 109.83 | 0.6761 | -139.0 | -195.6 | |
| 0.54 | 2.88 | 0.36 | 1.92 | -13.03 | 58.60 | -40.67 | 107.87 | 0.6694 | -880.5 | -712.2 | |
| 0.36 | 2.07 | 0.24 | 1.38 | -12.62 | 58.51 | -40.75 | 107.25 | 0.6693 | -951.8 | -790.7 | |
| 1.62 | 3.06 | 1.08 | 2.05 | -13.30 | 58.34 | -40.93 | 108.19 | 0.6734 | -681.1 | -507.8 | |
| 1.71 | 7.21 | 1.14 | 4.82 | -13.02 | 58.31 | -40.95 | 107.78 | 0.6729 | -809.8 | -637.8 | |
| 2.07 | 15.95 | 1.38 | 10.63 | -12.16 | 58.48 | -40.79 | 106.56 | 0.6685 | -955.8 | -650.7 | |
| 2.07 | -32.00 | 1.39 | -32.00 | -13.02 | 58.15 | -41.12 | 107.72 | 0.6749 | -664.5 | 999999 | |
| 7.30 | -33.00 | 4.87 | -33.00 | -12.24 | 58.22 | -41.05 | 106.61 | 0.6720 | -776.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -12.71 | 58.04 | -41.22 | 107.23 | 0.6754 | -504.0 | -413.5 | |
| 4.87 | 7.30 | 3.28 | 4.92 | -13.20 | 57.82 | -41.45 | 107.88 | 0.6795 | -514.3 | -214.2 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -12.95 | 57.87 | -41.40 | 107.54 | 0.6782 | -435.0 | -398.2 | |
| 0.00 | 1.44 | 0.00 | 0.97 | -12.76 | 57.82 | -41.44 | 107.25 | 0.6782 | -390.0 | -298.6 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -10.03 | 55.16 | -44.10 | 102.69 | 0.7048 | 295.0 | 244.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
