SDO HMI 2014-05-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.05 | 149.00 | 42.65 | 95.21 | -13.90 | 136.76 | 37.50 | 249.63 | 0.6321 | 0.3 | 197.4 | |
|
previous
or next observation for the same group /

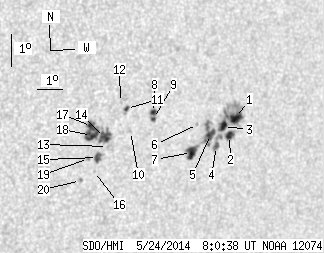

back to the solar disc SDO HMI 2014-05-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.37 | 81.04 | 6.17 | 52.89 | -13.35 | 139.08 | 39.82 | 251.37 | 0.6597 | 808.1 | 585.7 | |
| 4.87 | 7.93 | 3.20 | 5.22 | -13.91 | 138.95 | 39.68 | 250.50 | 0.6598 | 742.1 | 300.7 | |
| 5.23 | -1.00 | 3.42 | -1.00 | -13.64 | 138.65 | 39.39 | 250.80 | 0.6552 | 982.3 | 999999 | |
| 2.07 | -1.00 | 1.36 | -1.00 | -14.26 | 138.49 | 39.23 | 249.81 | 0.6553 | 703.7 | 999999 | |
| 5.23 | -1.00 | 3.40 | -1.00 | -13.89 | 138.18 | 38.91 | 250.25 | 0.6501 | 968.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -13.59 | 137.60 | 38.33 | 250.48 | 0.6418 | 762.0 | 608.7 | |
| 8.47 | -1.00 | 5.47 | -1.00 | -14.46 | 137.53 | 38.26 | 249.14 | 0.6440 | 893.1 | 999999 | |
| 2.52 | 6.85 | 1.59 | 4.31 | -13.25 | 135.80 | 36.53 | 250.32 | 0.6176 | -763.9 | -619.4 | |
| 1.35 | -8.00 | 0.85 | -8.00 | -13.43 | 135.83 | 36.57 | 250.04 | 0.6187 | -758.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -13.85 | 135.01 | 35.75 | 249.04 | 0.6096 | -538.0 | -434.4 | |
| 1.44 | 3.97 | 0.89 | 2.46 | -13.14 | 134.74 | 35.47 | 250.05 | 0.6034 | -720.2 | -544.9 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -12.95 | 134.48 | 35.21 | 250.24 | 0.5993 | -385.0 | -506.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -14.33 | 134.21 | 34.95 | 247.91 | 0.6012 | -213.0 | -188.1 | |
| 8.20 | 35.61 | 5.06 | 21.87 | -14.05 | 134.05 | 34.78 | 248.28 | 0.5979 | -815.8 | -642.9 | |
| 3.61 | 6.04 | 2.23 | 3.73 | -14.67 | 133.89 | 34.63 | 247.20 | 0.5985 | -765.8 | -570.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -15.11 | 133.86 | 34.59 | 246.49 | 0.5999 | -507.0 | -424.2 | |
| 5.32 | -14.00 | 3.26 | -14.00 | -13.71 | 133.50 | 34.23 | 248.56 | 0.5893 | -984.5 | 999999 | |
| 9.37 | -14.00 | 5.75 | -14.00 | -13.99 | 133.54 | 34.28 | 248.13 | 0.5911 | -988.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -14.71 | 133.56 | 34.29 | 246.98 | 0.5943 | -933.0 | -763.3 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -15.40 | 133.38 | 34.11 | 245.78 | 0.5951 | -795.0 | -649.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
