SDO HMI 2014-05-24 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.10 | 197.24 | 47.42 | 157.97 | -18.41 | 148.62 | 49.90 | 247.59 | 0.7866 | 192.9 | 195.6 | |
|
previous
or next observation for the same group /

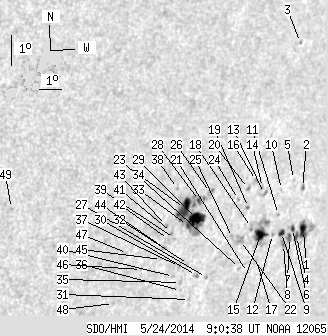

back to the solar disc SDO HMI 2014-05-24 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.94 | 25.42 | 6.02 | 22.02 | -18.53 | 152.35 | 53.64 | 248.41 | 0.8233 | 580.9 | 210.9 | |
| 0.54 | 2.25 | 0.46 | 1.92 | -17.18 | 151.71 | 53.00 | 249.90 | 0.8146 | 247.8 | 264.0 | |
| 0.00 | 1.35 | 0.00 | 1.09 | -12.67 | 150.06 | 51.34 | 255.13 | 0.7905 | 178.0 | 305.2 | |
| 2.25 | -1.00 | 1.94 | -1.00 | -18.73 | 152.07 | 53.35 | 248.11 | 0.8210 | 377.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.68 | -16.94 | 151.14 | 52.42 | 250.06 | 0.8087 | 101.0 | 237.7 | |
| 1.53 | -1.00 | 1.31 | -1.00 | -18.48 | 151.74 | 53.02 | 248.33 | 0.8174 | 705.1 | 999999 | |
| 2.25 | 4.51 | 1.93 | 3.86 | -18.77 | 151.71 | 52.99 | 247.98 | 0.8177 | 584.8 | 485.5 | |
| 0.45 | 3.15 | 0.38 | 2.69 | -19.00 | 151.49 | 52.77 | 247.65 | 0.8162 | 515.0 | 430.4 | |
| 2.70 | 4.15 | 2.29 | 3.51 | -18.62 | 151.21 | 52.50 | 248.04 | 0.8128 | 663.9 | 550.0 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -17.26 | 150.65 | 51.93 | 249.55 | 0.8045 | 314.0 | 353.9 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -18.05 | 150.81 | 52.09 | 248.63 | 0.8078 | 320.0 | 363.9 | |
| 0.00 | 0.90 | 0.00 | 0.76 | -18.69 | 150.77 | 52.05 | 247.84 | 0.8087 | 301.0 | 400.8 | |
| 0.00 | 2.97 | 0.00 | 2.43 | -17.41 | 149.83 | 51.11 | 249.18 | 0.7968 | 308.0 | 441.6 | |
| 0.00 | 1.62 | 0.00 | 1.32 | -17.22 | 149.65 | 50.94 | 249.37 | 0.7947 | 563.0 | 531.3 | |
| 9.82 | 28.21 | 8.12 | 23.32 | -18.70 | 150.15 | 51.43 | 247.67 | 0.8028 | 783.0 | 438.4 | |
| 0.00 | 1.98 | 0.00 | 1.60 | -17.01 | 149.27 | 50.55 | 249.54 | 0.7904 | 692.0 | 505.9 | |
| 0.00 | 1.26 | 0.00 | 1.05 | -19.53 | 150.31 | 51.59 | 246.71 | 0.8062 | 278.0 | 237.4 | |
| 0.00 | 2.61 | 0.00 | 2.13 | -18.49 | 149.60 | 50.88 | 247.79 | 0.7970 | 351.0 | 459.2 | |
| 0.00 | 1.17 | 0.00 | 0.95 | -17.86 | 149.20 | 50.48 | 248.46 | 0.7915 | 581.0 | 490.2 | |
| 0.00 | 1.62 | 0.00 | 1.30 | -17.26 | 148.97 | 50.25 | 249.14 | 0.7879 | 400.0 | 464.7 | |
| 0.00 | 0.63 | 0.00 | 0.52 | -19.92 | 150.01 | 51.30 | 246.15 | 0.8044 | -243.0 | -223.3 | |
| 0.00 | 6.31 | 0.00 | 5.12 | -18.91 | 149.22 | 50.50 | 247.17 | 0.7942 | 434.0 | 492.0 | |
| 0.00 | 1.53 | 0.00 | 1.26 | -19.80 | 149.55 | 50.83 | 246.17 | 0.7996 | -491.0 | -368.7 | |
| 0.00 | 1.35 | 0.00 | 1.08 | -17.62 | 148.60 | 49.88 | 248.61 | 0.7850 | 419.0 | 409.6 | |
| 0.00 | 2.43 | 0.00 | 1.96 | -18.83 | 148.78 | 50.06 | 247.16 | 0.7897 | 622.0 | 493.4 | |
| 0.00 | 3.61 | 0.00 | 2.79 | -17.43 | 147.16 | 48.44 | 248.46 | 0.7698 | -556.0 | -359.8 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -20.12 | 148.02 | 49.30 | 245.33 | 0.7855 | -254.0 | -206.5 | |
| 1.71 | 73.28 | 1.31 | 56.08 | -17.69 | 146.73 | 48.01 | 248.01 | 0.7659 | -653.1 | -127.8 | |
| 14.69 | -28.00 | 11.32 | -28.00 | -18.26 | 146.79 | 48.07 | 247.30 | 0.7681 | -724.4 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.85 | -20.07 | 147.50 | 48.78 | 245.24 | 0.7803 | -544.0 | -413.6 | |
| 0.00 | 0.99 | 0.00 | 0.78 | -20.84 | 147.48 | 48.76 | 244.28 | 0.7823 | 373.0 | 277.7 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -19.73 | 146.96 | 48.25 | 245.50 | 0.7740 | -238.0 | -307.8 | |
| 1.35 | -28.00 | 1.04 | -28.00 | -18.49 | 146.44 | 47.72 | 246.90 | 0.7651 | -236.1 | 999999 | |
| 14.87 | -28.00 | 11.30 | -28.00 | -17.95 | 146.10 | 47.39 | 247.48 | 0.7602 | 18.9 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.40 | -20.31 | 146.81 | 48.09 | 244.73 | 0.7741 | 340.0 | 361.2 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -20.56 | 146.92 | 48.20 | 244.44 | 0.7759 | 317.0 | 338.2 | |
| 0.00 | 1.80 | 0.00 | 1.39 | -19.80 | 146.56 | 47.84 | 245.29 | 0.7700 | 526.0 | 468.6 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -17.33 | 145.56 | 46.84 | 248.12 | 0.7527 | 310.0 | 326.8 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -18.91 | 145.98 | 47.26 | 246.22 | 0.7615 | 664.0 | 602.8 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -20.12 | 146.40 | 47.68 | 244.83 | 0.7694 | 386.0 | 360.4 | |
| 0.00 | 2.16 | 0.00 | 1.64 | -18.72 | 145.77 | 47.05 | 246.39 | 0.7588 | 686.0 | 607.4 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -18.95 | 145.71 | 46.99 | 246.09 | 0.7588 | 726.0 | 671.5 | |
| 0.00 | 1.26 | 0.00 | 0.95 | -18.51 | 145.45 | 46.73 | 246.57 | 0.7549 | 618.0 | 565.6 | |
| 0.00 | 1.89 | 0.00 | 1.43 | -19.24 | 145.62 | 46.91 | 245.69 | 0.7588 | 716.0 | 645.3 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -19.59 | 145.62 | 46.90 | 245.24 | 0.7598 | 581.0 | 561.7 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -19.93 | 144.80 | 46.08 | 244.53 | 0.7524 | 673.0 | 567.8 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -19.43 | 143.97 | 45.25 | 244.88 | 0.7420 | 548.0 | 524.9 | |
| 0.00 | 1.26 | 0.00 | 0.94 | -21.04 | 143.92 | 45.20 | 242.79 | 0.7470 | 111.0 | 106.1 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -18.08 | 138.49 | 39.77 | 244.50 | 0.6760 | -581.0 | -473.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
