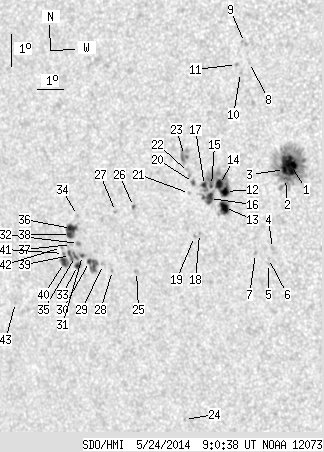

SDO HMI 2014-05-24 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.97 | 279.84 | 47.65 | 171.67 | -11.26 | 63.76 | -34.95 | 107.10 | 0.5891 | 286.7 | 222.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.92 | 108.71 | 11.73 | 64.05 | -10.36 | 66.98 | -31.73 | 106.83 | 0.5427 | 1109.5 | 463.3 | |
| 0.63 | -1.00 | 0.37 | -1.00 | -10.79 | 66.75 | -31.97 | 107.49 | 0.5474 | 601.0 | 999999 | |
| 4.69 | -1.00 | 2.77 | -1.00 | -10.51 | 66.75 | -31.97 | 107.00 | 0.5465 | 892.1 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -12.94 | 65.98 | -32.74 | 110.88 | 0.5662 | 682.0 | 566.4 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -13.40 | 65.76 | -32.96 | 111.55 | 0.5711 | 710.0 | 609.0 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -13.24 | 65.79 | -32.93 | 111.30 | 0.5701 | 727.0 | 566.4 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -13.08 | 65.33 | -33.39 | 110.80 | 0.5756 | 667.0 | 564.3 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -7.21 | 65.80 | -32.92 | 100.76 | 0.5509 | -632.0 | -546.3 | |
| 0.00 | 2.25 | 0.00 | 1.34 | -6.60 | 65.67 | -33.05 | 99.62 | 0.5516 | -630.0 | -585.9 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -7.51 | 65.45 | -33.27 | 101.20 | 0.5566 | -644.0 | -543.2 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -7.27 | 65.32 | -33.40 | 100.73 | 0.5578 | -662.0 | -589.2 | |
| 5.77 | 61.56 | 3.50 | 37.51 | -11.15 | 64.48 | -34.23 | 107.19 | 0.5799 | 1100.8 | 495.4 | |
| 8.02 | 12.89 | 4.88 | 7.85 | -11.64 | 64.38 | -34.34 | 107.98 | 0.5830 | 1026.6 | 627.1 | |
| 5.05 | -12.00 | 3.07 | -12.00 | -10.93 | 64.29 | -34.43 | 106.75 | 0.5819 | 1004.4 | 999999 | |
| 0.99 | -12.00 | 0.61 | -12.00 | -10.96 | 63.98 | -34.73 | 106.68 | 0.5861 | 678.3 | 999999 | |
| 5.32 | -12.00 | 3.25 | -12.00 | -11.36 | 63.85 | -34.87 | 107.29 | 0.5892 | 798.6 | 999999 | |
| 2.07 | -12.00 | 1.27 | -12.00 | -10.95 | 63.72 | -35.00 | 106.57 | 0.5897 | 682.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -12.43 | 63.31 | -35.41 | 108.84 | 0.6000 | 753.0 | 525.2 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -12.52 | 63.10 | -35.61 | 108.90 | 0.6031 | 611.0 | 545.3 | |
| 0.72 | 2.07 | 0.44 | 1.28 | -10.85 | 63.32 | -35.40 | 106.27 | 0.5949 | 601.8 | 473.6 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -11.19 | 63.12 | -35.60 | 106.75 | 0.5986 | 457.0 | 347.1 | |
| 0.00 | 4.51 | 0.00 | 2.77 | -10.54 | 63.17 | -35.55 | 105.70 | 0.5959 | 546.0 | 435.3 | |
| 0.00 | 11.00 | 0.00 | 6.77 | -10.02 | 63.09 | -35.63 | 104.81 | 0.5956 | 539.0 | 159.6 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -18.23 | 61.54 | -37.18 | 116.94 | 0.6461 | 699.0 | 576.7 | |
| 0.00 | 2.34 | 0.00 | 1.50 | -13.56 | 60.66 | -38.06 | 109.58 | 0.6384 | -200.0 | -242.0 | |
| 0.54 | 1.62 | 0.34 | 1.03 | -11.55 | 60.89 | -37.83 | 106.56 | 0.6291 | -641.2 | -545.5 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -11.69 | 60.16 | -38.56 | 106.55 | 0.6390 | 417.0 | 380.9 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -13.52 | 59.70 | -39.01 | 109.16 | 0.6502 | -331.0 | -382.4 | |
| 0.00 | 1.62 | 0.00 | 1.06 | -13.32 | 59.38 | -39.34 | 108.76 | 0.6537 | -644.0 | -573.6 | |
| 1.44 | 11.45 | 0.95 | 7.52 | -13.22 | 58.83 | -39.89 | 108.42 | 0.6603 | -778.8 | -701.5 | |
| 0.90 | 23.98 | 0.59 | 15.93 | -13.03 | 58.58 | -40.14 | 108.05 | 0.6628 | -827.0 | -537.1 | |
| 0.00 | 2.16 | 0.00 | 1.43 | -12.66 | 58.49 | -40.23 | 107.47 | 0.6629 | -947.0 | -782.2 | |
| 2.43 | -31.00 | 1.61 | -31.00 | -13.34 | 58.32 | -40.40 | 108.42 | 0.6670 | -583.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -11.79 | 58.61 | -40.11 | 106.22 | 0.6590 | -576.0 | -527.5 | |
| 1.53 | -31.00 | 1.02 | -31.00 | -13.06 | 58.29 | -40.43 | 108.00 | 0.6665 | -716.1 | 999999 | |
| 6.31 | 12.62 | 4.17 | 8.34 | -12.19 | 58.29 | -40.42 | 106.72 | 0.6641 | -846.0 | -603.4 | |
| 0.00 | 1.35 | 0.00 | 0.90 | -12.68 | 58.20 | -40.52 | 107.42 | 0.6666 | -631.0 | -550.1 | |
| 3.34 | -36.00 | 2.21 | -36.00 | -12.37 | 58.22 | -40.50 | 106.97 | 0.6655 | -814.0 | 999999 | |
| 2.43 | -31.00 | 1.62 | -31.00 | -13.02 | 58.09 | -40.63 | 107.88 | 0.6689 | -691.1 | 999999 | |
| 4.87 | -31.00 | 3.25 | -31.00 | -13.23 | 57.80 | -40.92 | 108.10 | 0.6731 | -556.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.02 | -12.95 | 57.82 | -40.90 | 107.70 | 0.6721 | -483.0 | -370.1 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -12.77 | 57.77 | -40.95 | 107.41 | 0.6721 | -278.0 | -269.4 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -14.44 | 55.46 | -43.26 | 109.08 | 0.7046 | 265.0 | 292.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
