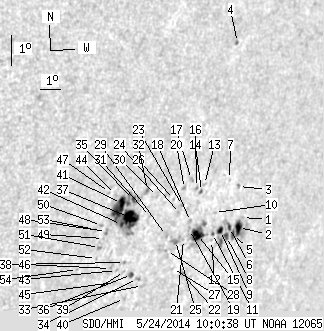

SDO HMI 2014-05-24 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.66 | 196.86 | 39.05 | 160.17 | -18.42 | 148.86 | 50.69 | 247.79 | 0.7944 | 232.2 | 225.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.79 | -18.13 | 152.45 | 54.28 | 249.03 | 0.8284 | 115.0 | 122.7 | |
| 6.04 | 40.65 | 5.31 | 35.48 | -18.45 | 152.37 | 54.20 | 248.63 | 0.8283 | 562.6 | 315.6 | |
| 0.00 | 1.53 | 0.00 | 1.32 | -17.16 | 151.80 | 53.63 | 250.05 | 0.8206 | 602.0 | 451.3 | |
| 0.00 | 1.53 | 0.00 | 1.25 | -12.68 | 150.17 | 52.00 | 255.22 | 0.7973 | 530.0 | 435.2 | |
| 1.89 | -2.00 | 1.66 | -2.00 | -18.68 | 152.15 | 53.98 | 248.31 | 0.8267 | 488.7 | 999999 | |
| 1.53 | -2.00 | 1.33 | -2.00 | -18.46 | 151.88 | 53.71 | 248.51 | 0.8239 | 669.8 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -16.95 | 151.23 | 53.06 | 250.18 | 0.8149 | 452.0 | 475.2 | |
| 1.98 | -2.00 | 1.72 | -2.00 | -18.75 | 151.85 | 53.68 | 248.16 | 0.8241 | 546.8 | 999999 | |
| 3.06 | -2.00 | 2.64 | -2.00 | -18.57 | 151.44 | 53.27 | 248.28 | 0.8200 | 752.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.07 | -18.01 | 150.88 | 52.71 | 248.83 | 0.8135 | 646.0 | 512.9 | |
| 0.45 | 1.53 | 0.39 | 1.31 | -18.67 | 151.06 | 52.89 | 248.07 | 0.8166 | 602.8 | 530.4 | |
| 0.00 | 1.08 | 0.00 | 0.93 | -18.89 | 151.11 | 52.94 | 247.81 | 0.8175 | 590.0 | 512.1 | |
| 0.00 | 1.71 | 0.00 | 1.42 | -17.14 | 150.00 | 51.83 | 249.68 | 0.8033 | 481.0 | 402.9 | |
| 0.45 | 1.80 | 0.37 | 1.49 | -17.36 | 149.93 | 51.76 | 249.39 | 0.8031 | 566.8 | 446.5 | |
| 9.37 | 25.78 | 7.87 | 21.64 | -18.72 | 150.29 | 52.12 | 247.82 | 0.8094 | 801.8 | 493.8 | |
| 0.00 | 1.62 | 0.00 | 1.33 | -17.24 | 149.62 | 51.45 | 249.47 | 0.7998 | 578.0 | 584.0 | |
| 0.00 | 1.98 | 0.00 | 1.62 | -16.99 | 149.27 | 51.10 | 249.69 | 0.7959 | 627.0 | 530.0 | |
| 0.00 | 1.89 | 0.00 | 1.57 | -18.31 | 149.75 | 51.58 | 248.18 | 0.8034 | 373.0 | 222.3 | |
| 0.00 | 1.89 | 0.00 | 1.57 | -18.57 | 149.81 | 51.64 | 247.89 | 0.8045 | 790.0 | 666.3 | |
| 0.00 | 1.80 | 0.00 | 1.46 | -17.28 | 149.03 | 50.86 | 249.27 | 0.7941 | 733.0 | 520.5 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -18.89 | 149.63 | 51.46 | 247.45 | 0.8035 | 302.0 | 383.4 | |
| 0.00 | 1.17 | 0.00 | 0.99 | -19.97 | 150.06 | 51.89 | 246.25 | 0.8101 | -351.0 | -279.8 | |
| 0.00 | 1.35 | 0.00 | 1.10 | -17.82 | 149.14 | 50.97 | 248.64 | 0.7963 | 633.0 | 477.9 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -18.07 | 149.14 | 50.97 | 248.32 | 0.7969 | 319.0 | 368.8 | |
| 0.00 | 5.14 | 0.00 | 4.22 | -18.93 | 149.24 | 51.07 | 247.30 | 0.7998 | 383.0 | 442.8 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -17.64 | 148.66 | 50.49 | 248.74 | 0.7912 | 594.0 | 529.8 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -19.82 | 149.47 | 51.30 | 246.27 | 0.8042 | -461.0 | -382.1 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -19.26 | 148.91 | 50.74 | 246.81 | 0.7975 | 600.0 | 544.6 | |
| 0.00 | 2.43 | 0.00 | 1.98 | -18.78 | 148.71 | 50.54 | 247.34 | 0.7944 | 567.0 | 516.3 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -17.56 | 147.78 | 49.61 | 248.61 | 0.7822 | 571.0 | 489.1 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -18.20 | 147.68 | 49.51 | 247.78 | 0.7826 | 245.0 | 243.1 | |
| 0.00 | 1.71 | 0.00 | 1.34 | -17.38 | 147.23 | 49.06 | 248.69 | 0.7761 | -528.0 | -452.2 | |
| 0.00 | 2.07 | 0.00 | 1.68 | -20.40 | 148.19 | 50.02 | 245.21 | 0.7933 | 211.0 | 211.3 | |
| 0.00 | 1.89 | 0.00 | 1.52 | -20.18 | 147.84 | 49.67 | 245.38 | 0.7894 | -326.0 | -235.8 | |
| 1.44 | 69.13 | 1.12 | 53.47 | -17.68 | 146.65 | 48.48 | 248.15 | 0.7709 | -660.9 | -68.9 | |
| 1.26 | 2.52 | 1.01 | 2.01 | -20.06 | 147.49 | 49.32 | 245.42 | 0.7856 | -502.5 | -356.1 | |
| 12.44 | -35.00 | 9.67 | -35.00 | -18.25 | 146.67 | 48.50 | 247.44 | 0.7725 | -736.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.85 | -19.68 | 146.99 | 48.82 | 245.73 | 0.7796 | -287.0 | -245.9 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -19.97 | 147.10 | 48.93 | 245.41 | 0.7815 | -200.0 | -162.9 | |
| 0.00 | 1.44 | 0.00 | 1.15 | -20.83 | 147.48 | 49.31 | 244.46 | 0.7876 | 612.0 | 461.9 | |
| 6.31 | -35.00 | 4.84 | -35.00 | -17.81 | 146.13 | 47.96 | 247.83 | 0.7657 | -643.5 | 999999 | |
| 1.44 | -35.00 | 1.12 | -35.00 | -18.48 | 146.37 | 48.20 | 247.06 | 0.7700 | -341.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.99 | -19.94 | 146.70 | 48.53 | 245.32 | 0.7774 | -256.0 | -211.4 | |
| 0.00 | 1.17 | 0.00 | 0.89 | -17.53 | 145.74 | 47.57 | 248.07 | 0.7610 | -177.0 | -219.1 | |
| 0.00 | 1.44 | 0.00 | 1.13 | -20.33 | 146.71 | 48.54 | 244.84 | 0.7787 | 539.0 | 434.4 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -19.88 | 146.38 | 48.21 | 245.29 | 0.7741 | 699.0 | 595.4 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -17.48 | 145.44 | 47.27 | 248.06 | 0.7576 | 557.0 | 498.2 | |
| 0.00 | 2.16 | 0.00 | 1.65 | -18.71 | 145.74 | 47.57 | 246.57 | 0.7641 | 691.0 | 608.2 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -18.94 | 145.68 | 47.51 | 246.26 | 0.7642 | 640.0 | 580.3 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -18.52 | 145.43 | 47.26 | 246.71 | 0.7604 | 727.0 | 669.5 | |
| 0.00 | 1.62 | 0.00 | 1.24 | -19.22 | 145.59 | 47.42 | 245.87 | 0.7642 | 720.0 | 631.9 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -19.58 | 145.59 | 47.42 | 245.42 | 0.7651 | 535.0 | 460.8 | |
| 0.00 | 1.35 | 0.00 | 1.02 | -18.66 | 145.19 | 47.02 | 246.47 | 0.7583 | 626.0 | 505.8 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -19.94 | 144.82 | 46.65 | 244.70 | 0.7584 | 675.0 | 578.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
