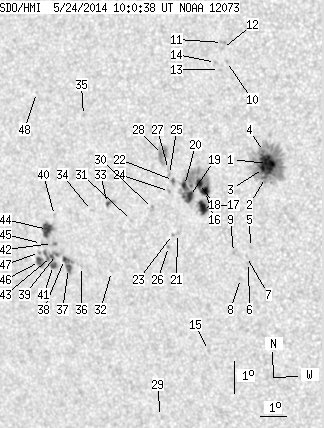

SDO HMI 2014-05-24 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.17 | 296.14 | 45.59 | 180.23 | -11.21 | 63.85 | -34.32 | 107.27 | 0.5805 | 271.4 | 218.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.66 | 112.13 | 10.93 | 65.67 | -10.36 | 66.94 | -31.23 | 107.06 | 0.5355 | 1107.3 | 460.5 | |
| 0.27 | -1.00 | 0.16 | -1.00 | -10.79 | 66.82 | -31.35 | 107.78 | 0.5388 | 689.0 | 999999 | |
| 5.05 | -1.00 | 2.96 | -1.00 | -10.51 | 66.78 | -31.39 | 107.26 | 0.5383 | 890.1 | 999999 | |
| 0.27 | -1.00 | 0.16 | -1.00 | -9.99 | 66.84 | -31.33 | 106.34 | 0.5357 | 794.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -12.94 | 65.99 | -32.18 | 111.17 | 0.5588 | 775.0 | 721.3 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -13.40 | 65.85 | -32.32 | 111.89 | 0.5627 | 611.0 | 590.1 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -13.22 | 65.80 | -32.37 | 111.55 | 0.5625 | 665.0 | 493.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -13.90 | 65.47 | -32.70 | 112.52 | 0.5698 | 693.0 | 521.2 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -13.09 | 65.34 | -32.83 | 111.09 | 0.5681 | 585.0 | 519.9 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -7.22 | 65.77 | -32.40 | 100.90 | 0.5435 | -782.0 | -679.5 | |
| 0.00 | 2.16 | 0.00 | 1.27 | -6.64 | 65.67 | -32.50 | 99.81 | 0.5438 | -649.0 | -578.0 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -6.82 | 65.65 | -32.52 | 100.14 | 0.5443 | -535.0 | -429.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -7.46 | 65.49 | -32.68 | 101.27 | 0.5480 | -652.0 | -548.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -7.24 | 65.36 | -32.81 | 100.84 | 0.5494 | -661.0 | -560.0 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -16.12 | 63.86 | -34.31 | 115.27 | 0.6010 | 667.0 | 532.3 | |
| 5.14 | 66.88 | 3.10 | 40.45 | -11.19 | 64.57 | -33.60 | 107.51 | 0.5714 | 1126.5 | 476.5 | |
| 8.29 | 12.80 | 5.01 | 7.74 | -11.68 | 64.39 | -33.78 | 108.27 | 0.5756 | 989.1 | 691.3 | |
| 4.60 | -16.00 | 2.77 | -16.00 | -10.94 | 64.38 | -33.79 | 107.01 | 0.5732 | 990.0 | 999999 | |
| 5.77 | -16.00 | 3.50 | -16.00 | -11.33 | 63.95 | -34.22 | 107.51 | 0.5804 | 859.1 | 999999 | |
| 2.43 | -16.00 | 1.48 | -16.00 | -10.99 | 63.81 | -34.36 | 106.88 | 0.5812 | 670.3 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.22 | -12.47 | 63.33 | -34.84 | 109.14 | 0.5926 | 766.0 | 544.2 | |
| 0.63 | 1.71 | 0.39 | 1.05 | -10.83 | 63.42 | -34.75 | 106.46 | 0.5860 | 675.9 | 490.9 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -12.49 | 63.14 | -35.03 | 109.10 | 0.5953 | 594.0 | 522.8 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -11.17 | 63.22 | -34.95 | 106.95 | 0.5897 | 530.0 | 399.9 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -10.64 | 63.29 | -34.88 | 106.11 | 0.5871 | 524.0 | 476.6 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -12.86 | 62.92 | -35.25 | 109.61 | 0.5995 | 472.0 | 465.5 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -10.49 | 63.27 | -34.90 | 105.84 | 0.5869 | 487.0 | 454.3 | |
| 0.00 | 14.24 | 0.00 | 8.70 | -10.02 | 63.11 | -35.06 | 105.01 | 0.5879 | 333.0 | 135.7 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -18.17 | 61.53 | -36.64 | 117.14 | 0.6394 | 383.0 | 448.8 | |
| 0.00 | 2.61 | 0.00 | 1.62 | -11.68 | 62.50 | -35.67 | 107.52 | 0.6011 | 508.0 | 352.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -12.04 | 61.64 | -36.53 | 107.78 | 0.6136 | 218.0 | 255.3 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -13.60 | 60.58 | -37.59 | 109.82 | 0.6325 | -620.0 | -442.5 | |
| 0.99 | 3.79 | 0.63 | 2.39 | -11.50 | 60.79 | -37.38 | 106.62 | 0.6232 | -780.4 | -711.1 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -11.70 | 60.13 | -38.04 | 106.73 | 0.6324 | 586.0 | 386.9 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -8.78 | 60.23 | -37.94 | 102.16 | 0.6238 | -657.0 | -520.9 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -13.42 | 59.42 | -38.75 | 109.12 | 0.6467 | -589.0 | -492.1 | |
| 3.06 | 11.09 | 2.00 | 7.23 | -13.48 | 58.88 | -39.29 | 109.01 | 0.6535 | -718.7 | -708.4 | |
| 1.35 | -37.00 | 0.88 | -37.00 | -13.19 | 58.78 | -39.39 | 108.55 | 0.6540 | -788.3 | 999999 | |
| 0.72 | 16.58 | 0.47 | 10.91 | -13.03 | 58.48 | -39.69 | 108.21 | 0.6572 | -892.9 | -618.2 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -11.83 | 58.63 | -39.54 | 106.45 | 0.6520 | -631.0 | -555.2 | |
| 2.70 | -39.00 | 1.78 | -39.00 | -13.37 | 58.30 | -39.87 | 108.65 | 0.6606 | -621.9 | 999999 | |
| 0.00 | 3.52 | 0.00 | 2.30 | -12.69 | 58.39 | -39.78 | 107.67 | 0.6574 | -813.0 | -755.9 | |
| 1.17 | -39.00 | 0.77 | -39.00 | -13.09 | 58.27 | -39.90 | 108.23 | 0.6601 | -877.5 | 999999 | |
| 9.28 | 12.71 | 6.09 | 8.34 | -12.25 | 58.27 | -39.90 | 106.98 | 0.6577 | -826.5 | -575.8 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -12.68 | 57.94 | -40.23 | 107.51 | 0.6630 | -446.0 | -401.2 | |
| 3.79 | 7.48 | 2.51 | 4.96 | -13.24 | 57.75 | -40.42 | 108.27 | 0.6670 | -560.6 | -375.8 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -12.96 | 57.81 | -40.36 | 107.88 | 0.6655 | -538.0 | -451.5 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -8.04 | 58.46 | -39.71 | 100.63 | 0.6459 | -647.0 | -463.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
