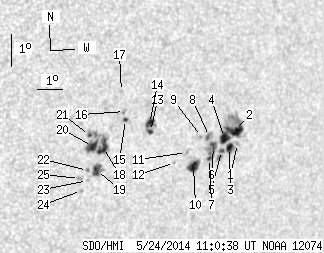

SDO HMI 2014-05-24 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.05 | 169.41 | 43.81 | 110.69 | -13.88 | 136.80 | 39.18 | 250.29 | 0.6532 | 63.3 | 75.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.40 | -13.80 | 139.35 | 41.73 | 251.33 | 0.6846 | -275.0 | -241.2 | |
| 12.17 | 58.67 | 8.21 | 39.50 | -13.40 | 139.14 | 41.52 | 251.84 | 0.6809 | 777.1 | 428.6 | |
| 4.42 | -2.00 | 2.98 | -2.00 | -13.93 | 139.05 | 41.42 | 251.04 | 0.6813 | 672.9 | 999999 | |
| 7.93 | -2.00 | 5.32 | -2.00 | -13.63 | 138.77 | 41.15 | 251.40 | 0.6771 | 925.3 | 999999 | |
| 1.17 | -2.00 | 0.79 | -2.00 | -14.03 | 138.73 | 41.11 | 250.80 | 0.6778 | 778.8 | 999999 | |
| 3.06 | 14.78 | 2.05 | 9.87 | -13.91 | 138.38 | 40.75 | 250.85 | 0.6731 | 974.7 | 752.0 | |
| 1.44 | -6.00 | 0.96 | -6.00 | -14.29 | 138.29 | 40.67 | 250.28 | 0.6732 | 784.3 | 999999 | |
| 0.00 | 5.32 | 0.00 | 3.54 | -13.60 | 138.15 | 40.52 | 251.22 | 0.6693 | 878.0 | 758.7 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -13.61 | 137.82 | 40.20 | 251.11 | 0.6653 | 842.0 | 756.8 | |
| 8.02 | 13.52 | 5.32 | 8.96 | -14.55 | 137.69 | 40.06 | 249.69 | 0.6666 | 835.9 | 558.5 | |
| 0.00 | 2.61 | 0.00 | 1.72 | -14.12 | 137.31 | 39.69 | 250.18 | 0.6606 | 659.0 | 538.0 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -14.43 | 136.89 | 39.26 | 249.56 | 0.6564 | -392.0 | -275.6 | |
| 1.44 | 11.36 | 0.93 | 7.29 | -13.49 | 135.73 | 38.11 | 250.55 | 0.6388 | -685.7 | -500.8 | |
| 4.69 | -13.00 | 3.00 | -13.00 | -13.24 | 135.65 | 38.03 | 250.89 | 0.6369 | -809.4 | 999999 | |
| 1.17 | 2.34 | 0.74 | 1.48 | -13.13 | 134.68 | 37.06 | 250.69 | 0.6241 | -665.1 | -570.8 | |
| 0.00 | 2.34 | 0.00 | 1.48 | -12.88 | 134.60 | 36.98 | 251.05 | 0.6222 | -706.0 | -583.8 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -12.27 | 134.38 | 36.76 | 251.93 | 0.6173 | -453.0 | -400.8 | |
| 7.66 | 36.95 | 4.82 | 23.15 | -14.01 | 133.98 | 36.36 | 249.03 | 0.6182 | -754.4 | -671.2 | |
| 5.41 | 10.45 | 3.40 | 6.59 | -14.73 | 133.84 | 36.22 | 247.85 | 0.6192 | -744.6 | -240.4 | |
| 7.39 | -18.00 | 4.62 | -18.00 | -13.99 | 133.55 | 35.93 | 248.88 | 0.6126 | -1008.2 | 999999 | |
| 1.08 | -18.00 | 0.67 | -18.00 | -13.65 | 133.37 | 35.75 | 249.34 | 0.6090 | -998.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -14.74 | 133.49 | 35.87 | 247.68 | 0.6148 | -937.0 | -770.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -15.05 | 133.55 | 35.93 | 247.23 | 0.6168 | -615.0 | -531.7 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -15.36 | 133.38 | 35.76 | 246.66 | 0.6160 | -771.0 | -595.9 | |
| 0.00 | 2.16 | 0.00 | 1.35 | -14.99 | 133.23 | 35.61 | 247.16 | 0.6125 | -831.0 | -663.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
