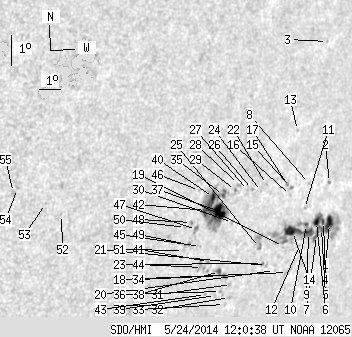

SDO HMI 2014-05-24 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.07 | 259.21 | 52.62 | 216.48 | -18.58 | 148.98 | 51.91 | 247.88 | 0.8064 | 253.3 | 156.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.10 | 109.14 | 8.24 | 96.54 | -18.46 | 152.50 | 55.43 | 248.89 | 0.8394 | 478.4 | 325.8 | |
| 0.36 | 1.17 | 0.32 | 1.04 | -17.16 | 151.91 | 54.83 | 250.29 | 0.8318 | 430.0 | 295.6 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -12.78 | 150.18 | 53.11 | 255.28 | 0.8087 | 527.0 | 412.8 | |
| 0.99 | -1.00 | 0.89 | -1.00 | -18.40 | 152.14 | 55.06 | 248.88 | 0.8360 | 697.9 | 999999 | |
| 1.89 | -1.00 | 1.70 | -1.00 | -18.62 | 152.13 | 55.06 | 248.61 | 0.8364 | 530.0 | 999999 | |
| 4.24 | -1.00 | 3.77 | -1.00 | -18.41 | 151.75 | 54.68 | 248.78 | 0.8326 | 769.9 | 999999 | |
| 3.15 | -1.00 | 2.82 | -1.00 | -18.85 | 151.96 | 54.89 | 248.31 | 0.8353 | 431.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.78 | -17.22 | 150.83 | 53.76 | 250.01 | 0.8220 | 448.0 | 372.2 | |
| 4.60 | -1.00 | 4.07 | -1.00 | -18.76 | 151.47 | 54.40 | 248.30 | 0.8307 | 718.2 | 999999 | |
| 0.99 | -1.00 | 0.87 | -1.00 | -18.51 | 151.24 | 54.17 | 248.55 | 0.8282 | 691.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.78 | -18.01 | 150.91 | 53.83 | 249.07 | 0.8241 | 506.0 | 476.6 | |
| 0.00 | 0.90 | 0.00 | 0.79 | -19.19 | 151.18 | 54.10 | 247.74 | 0.8289 | 255.0 | 344.1 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -15.57 | 149.55 | 52.48 | 251.73 | 0.8067 | 372.0 | 320.7 | |
| 10.99 | -1.00 | 9.52 | -1.00 | -18.75 | 150.59 | 53.52 | 248.12 | 0.8226 | 822.0 | 999999 | |
| 0.45 | 1.44 | 0.38 | 1.22 | -17.36 | 149.93 | 52.86 | 249.63 | 0.8137 | 630.2 | 544.3 | |
| 0.00 | 0.90 | 0.00 | 0.77 | -17.62 | 149.98 | 52.91 | 249.34 | 0.8147 | 627.0 | 501.3 | |
| 0.00 | 1.08 | 0.00 | 0.91 | -17.27 | 149.68 | 52.61 | 249.69 | 0.8112 | 696.0 | 590.8 | |
| 0.00 | 3.42 | 0.00 | 3.01 | -20.06 | 150.94 | 53.87 | 246.65 | 0.8285 | 556.0 | 414.3 | |
| 0.00 | 1.17 | 0.00 | 1.01 | -19.24 | 150.33 | 53.25 | 247.48 | 0.8212 | 443.0 | 356.2 | |
| 0.00 | 0.99 | 0.00 | 0.86 | -20.01 | 150.21 | 53.14 | 246.53 | 0.8218 | -169.0 | -125.4 | |
| 0.00 | 1.44 | 0.00 | 1.23 | -19.86 | 149.71 | 52.63 | 246.58 | 0.8168 | -372.0 | -354.2 | |
| 0.00 | 0.99 | 0.00 | 0.82 | -17.30 | 148.60 | 51.52 | 249.41 | 0.8007 | 544.0 | 505.1 | |
| 0.00 | 0.99 | 0.00 | 0.84 | -19.80 | 149.46 | 52.39 | 246.59 | 0.8144 | 27.0 | -190.9 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -17.52 | 148.43 | 51.36 | 249.10 | 0.7995 | 637.0 | 524.3 | |
| 0.36 | 9.28 | 0.30 | 7.76 | -19.29 | 149.07 | 52.00 | 247.10 | 0.8096 | 569.8 | 447.0 | |
| 0.00 | 0.90 | 0.00 | 0.73 | -17.47 | 147.95 | 50.88 | 249.04 | 0.7947 | 696.0 | 619.3 | |
| 0.00 | 1.44 | 0.00 | 1.17 | -17.50 | 147.76 | 50.69 | 248.95 | 0.7929 | 438.0 | 338.6 | |
| 0.00 | 1.53 | 0.00 | 1.22 | -17.32 | 147.19 | 50.12 | 249.03 | 0.7868 | -479.0 | -366.6 | |
| 0.00 | 1.71 | 0.00 | 1.37 | -17.51 | 147.11 | 50.04 | 248.77 | 0.7864 | -554.0 | -425.8 | |
| 0.00 | 1.53 | 0.00 | 1.23 | -18.53 | 147.36 | 50.29 | 247.58 | 0.7912 | -315.0 | -212.4 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -20.50 | 148.16 | 51.09 | 245.39 | 0.8039 | 198.0 | 166.0 | |
| 0.00 | 1.53 | 0.00 | 1.28 | -20.92 | 148.26 | 51.18 | 244.91 | 0.8058 | 286.0 | 249.3 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -21.15 | 148.10 | 51.03 | 244.59 | 0.8050 | 542.0 | 490.4 | |
| 0.90 | 6.49 | 0.74 | 5.29 | -20.22 | 147.62 | 50.55 | 245.58 | 0.7980 | -378.3 | -341.9 | |
| 1.26 | 76.33 | 1.00 | 60.12 | -17.68 | 146.58 | 49.51 | 248.42 | 0.7814 | -716.8 | -184.5 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -20.73 | 147.70 | 50.63 | 244.97 | 0.8001 | -341.0 | -265.3 | |
| 11.17 | -35.00 | 8.85 | -35.00 | -18.19 | 146.58 | 49.50 | 247.78 | 0.7826 | -718.6 | 999999 | |
| 1.80 | -34.00 | 1.47 | -34.00 | -20.10 | 147.36 | 50.29 | 245.65 | 0.7952 | -522.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -20.87 | 147.51 | 50.44 | 244.76 | 0.7986 | 598.0 | 531.8 | |
| 3.51 | -35.00 | 2.75 | -35.00 | -17.76 | 146.12 | 49.04 | 248.21 | 0.7769 | -847.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.30 | -19.79 | 146.68 | 49.60 | 245.83 | 0.7877 | -541.0 | -403.4 | |
| 6.31 | -35.00 | 4.93 | -35.00 | -18.17 | 145.93 | 48.86 | 247.63 | 0.7760 | 468.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -20.85 | 146.99 | 49.92 | 244.63 | 0.7936 | 550.0 | 459.6 | |
| 0.00 | 8.47 | 0.00 | 6.76 | -19.98 | 146.46 | 49.39 | 245.52 | 0.7861 | 153.0 | 155.1 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -19.32 | 146.08 | 49.01 | 246.24 | 0.7806 | 86.0 | 87.4 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -17.55 | 145.36 | 48.29 | 248.26 | 0.7686 | 623.0 | 590.2 | |
| 0.00 | 3.33 | 0.00 | 2.60 | -18.78 | 145.68 | 48.60 | 246.79 | 0.7750 | 834.0 | 681.4 | |
| 0.00 | 1.26 | 0.00 | 0.98 | -18.56 | 145.35 | 48.28 | 246.96 | 0.7711 | 704.0 | 668.9 | |
| 0.00 | 3.06 | 0.00 | 2.39 | -19.27 | 145.43 | 48.35 | 246.11 | 0.7738 | 530.0 | 646.9 | |
| 0.00 | 1.35 | 0.00 | 1.04 | -18.73 | 145.12 | 48.05 | 246.69 | 0.7692 | 585.0 | 451.9 | |
| 0.00 | 1.53 | 0.00 | 1.19 | -19.46 | 145.31 | 48.24 | 245.83 | 0.7732 | 611.0 | 530.1 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -18.42 | 139.36 | 42.29 | 245.09 | 0.7061 | -414.0 | -396.1 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -18.08 | 138.57 | 41.50 | 245.24 | 0.6959 | -509.0 | -464.0 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -17.62 | 137.26 | 40.19 | 245.32 | 0.6791 | -548.0 | -425.0 | |
| 0.00 | 2.34 | 0.00 | 1.57 | -17.75 | 137.13 | 40.05 | 245.08 | 0.6780 | -79.0 | -132.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
