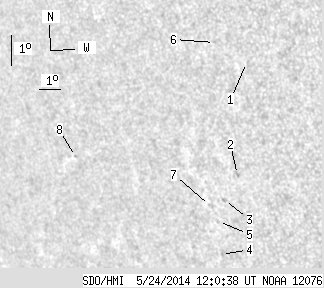

SDO HMI 2014-05-24 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.83 | 0.00 | 5.91 | -18.97 | 50.50 | -46.58 | 114.10 | 0.7543 | 356.2 | 316.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.25 | -15.49 | 53.77 | -43.30 | 110.54 | 0.7081 | 553.0 | 524.2 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -19.01 | 52.30 | -44.77 | 114.76 | 0.7356 | 757.0 | 611.0 | |
| 0.00 | 1.71 | 0.00 | 1.27 | -19.82 | 51.41 | -45.66 | 115.50 | 0.7477 | 666.0 | 551.8 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -21.55 | 50.59 | -46.49 | 117.39 | 0.7620 | 322.0 | 345.4 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -20.49 | 50.88 | -46.20 | 116.16 | 0.7555 | 68.0 | 164.2 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -14.84 | 52.54 | -44.54 | 109.27 | 0.7205 | 581.0 | 519.5 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -19.97 | 50.65 | -46.42 | 115.42 | 0.7561 | 323.0 | 257.4 | |
| 0.00 | 1.08 | 0.00 | 0.91 | -18.28 | 44.69 | -52.38 | 111.58 | 0.8110 | -420.0 | -346.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
