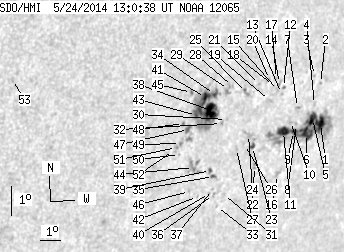

SDO HMI 2014-05-24 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.18 | 281.02 | 52.56 | 237.54 | -18.52 | 148.96 | 52.44 | 248.09 | 0.8114 | 270.9 | 168.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.74 | 104.08 | 8.03 | 93.89 | -18.44 | 152.51 | 55.99 | 249.02 | 0.8443 | 507.3 | 313.2 | |
| 0.00 | 0.99 | 0.00 | 0.89 | -17.18 | 151.92 | 55.40 | 250.38 | 0.8370 | 466.0 | 369.0 | |
| 0.00 | 0.90 | 0.00 | 0.80 | -16.94 | 151.48 | 54.95 | 250.58 | 0.8325 | 379.0 | 355.4 | |
| 0.00 | 1.53 | 0.00 | 1.38 | -17.85 | 151.89 | 55.36 | 249.58 | 0.8378 | 428.0 | 349.6 | |
| 5.68 | -1.00 | 5.14 | -1.00 | -18.29 | 151.98 | 55.46 | 249.08 | 0.8394 | 678.3 | 999999 | |
| 10.45 | -1.00 | 9.47 | -1.00 | -18.78 | 151.88 | 55.35 | 248.49 | 0.8393 | 652.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.43 | -17.97 | 150.99 | 54.47 | 249.26 | 0.8299 | 540.0 | 504.1 | |
| 0.00 | 0.99 | 0.00 | 0.88 | -18.50 | 151.18 | 54.66 | 248.67 | 0.8326 | 711.0 | 583.5 | |
| 2.25 | -1.00 | 2.00 | -1.00 | -18.73 | 151.12 | 54.60 | 248.39 | 0.8325 | 776.1 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.67 | -18.41 | 150.81 | 54.29 | 248.69 | 0.8290 | 432.0 | 390.5 | |
| 7.66 | -1.00 | 6.72 | -1.00 | -18.74 | 150.57 | 54.05 | 248.25 | 0.8275 | 814.7 | 999999 | |
| 0.36 | 1.17 | 0.31 | 1.01 | -17.35 | 149.96 | 53.43 | 249.78 | 0.8192 | 583.8 | 540.6 | |
| 0.00 | 1.08 | 0.00 | 0.93 | -17.54 | 149.93 | 53.41 | 249.54 | 0.8193 | 448.0 | 463.4 | |
| 0.00 | 1.71 | 0.00 | 1.46 | -17.23 | 149.69 | 53.17 | 249.86 | 0.8164 | 597.0 | 561.1 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -17.45 | 149.73 | 53.21 | 249.61 | 0.8172 | 583.0 | 475.9 | |
| 0.00 | 3.06 | 0.00 | 2.73 | -20.11 | 150.92 | 54.39 | 246.71 | 0.8333 | 549.0 | 426.2 | |
| 0.00 | 1.53 | 0.00 | 1.30 | -17.08 | 149.47 | 52.95 | 250.00 | 0.8140 | 629.0 | 531.2 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -17.30 | 149.40 | 52.88 | 249.72 | 0.8138 | 535.0 | 553.7 | |
| 0.00 | 3.06 | 0.00 | 2.60 | -17.78 | 149.39 | 52.87 | 249.14 | 0.8146 | 267.0 | 230.8 | |
| 0.00 | 1.44 | 0.00 | 1.21 | -17.11 | 149.12 | 52.59 | 249.88 | 0.8107 | 541.0 | 473.5 | |
| 0.00 | 1.17 | 0.00 | 0.98 | -17.28 | 148.66 | 52.14 | 249.57 | 0.8066 | 656.0 | 536.5 | |
| 0.00 | 2.52 | 0.00 | 2.17 | -19.88 | 149.54 | 53.02 | 246.65 | 0.8204 | -499.0 | -293.0 | |
| 1.80 | 4.33 | 1.53 | 3.68 | -19.25 | 149.13 | 52.61 | 247.30 | 0.8153 | 655.0 | 560.0 | |
| 0.00 | 5.59 | 0.00 | 4.70 | -18.87 | 148.75 | 52.23 | 247.66 | 0.8108 | 344.0 | 307.0 | |
| 0.00 | 3.33 | 0.00 | 2.75 | -17.55 | 148.09 | 51.57 | 249.11 | 0.8017 | 529.0 | 515.7 | |
| 0.00 | 0.72 | 0.00 | 0.61 | -19.19 | 148.68 | 52.16 | 247.26 | 0.8109 | 443.0 | 342.9 | |
| 0.00 | 1.53 | 0.00 | 1.28 | -19.33 | 148.33 | 51.80 | 247.00 | 0.8078 | 223.0 | 214.5 | |
| 0.00 | 1.17 | 0.00 | 0.95 | -17.37 | 147.31 | 50.79 | 249.14 | 0.7936 | -357.0 | -228.5 | |
| 0.00 | 4.69 | 0.00 | 3.79 | -17.47 | 147.14 | 50.62 | 248.97 | 0.7921 | -465.0 | -306.7 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -18.42 | 147.42 | 50.90 | 247.87 | 0.7970 | 291.0 | 246.9 | |
| 0.00 | 1.26 | 0.00 | 1.06 | -20.81 | 148.33 | 51.81 | 245.22 | 0.8114 | 235.0 | 166.0 | |
| 0.00 | 1.44 | 0.00 | 1.17 | -18.55 | 147.22 | 50.70 | 247.66 | 0.7953 | -296.0 | -174.5 | |
| 0.00 | 0.72 | 0.00 | 0.61 | -21.20 | 148.15 | 51.63 | 244.70 | 0.8107 | 524.0 | 489.2 | |
| 1.89 | 84.89 | 1.51 | 67.52 | -17.64 | 146.51 | 49.98 | 248.60 | 0.7861 | -713.3 | -101.6 | |
| 0.99 | 5.32 | 0.82 | 4.38 | -20.24 | 147.54 | 51.02 | 245.68 | 0.8026 | -433.3 | -317.7 | |
| 0.00 | 1.53 | 0.00 | 1.28 | -20.82 | 147.81 | 51.29 | 245.06 | 0.8065 | -246.0 | -189.8 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -20.66 | 147.68 | 51.16 | 245.22 | 0.8049 | -335.0 | -279.9 | |
| 12.44 | -34.00 | 9.95 | -34.00 | -18.15 | 146.50 | 49.98 | 247.96 | 0.7873 | -696.1 | 999999 | |
| 0.81 | -35.00 | 0.67 | -35.00 | -20.05 | 147.30 | 50.78 | 245.84 | 0.7998 | -446.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -20.79 | 147.59 | 51.07 | 245.03 | 0.8044 | -238.0 | -156.9 | |
| 4.87 | -34.00 | 3.85 | -34.00 | -17.74 | 146.10 | 49.58 | 248.36 | 0.7823 | -817.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -20.90 | 147.02 | 50.50 | 244.74 | 0.7993 | 426.0 | 454.6 | |
| 1.53 | -34.00 | 1.21 | -34.00 | -18.32 | 145.88 | 49.35 | 247.58 | 0.7814 | 811.9 | 999999 | |
| 0.00 | 13.07 | 0.00 | 10.53 | -19.97 | 146.40 | 49.88 | 245.68 | 0.7909 | 95.0 | 66.7 | |
| 0.00 | 1.71 | 0.00 | 1.34 | -17.60 | 145.36 | 48.84 | 248.34 | 0.7744 | 608.0 | 504.9 | |
| 0.00 | 1.17 | 0.00 | 0.95 | -20.75 | 146.54 | 50.02 | 244.78 | 0.7943 | 624.0 | 454.1 | |
| 1.71 | 7.66 | 1.35 | 6.05 | -18.77 | 145.66 | 49.13 | 246.95 | 0.7804 | 749.8 | 527.5 | |
| 0.00 | 1.44 | 0.00 | 1.13 | -18.59 | 145.34 | 48.82 | 247.10 | 0.7767 | 721.0 | 645.2 | |
| 0.00 | 1.44 | 0.00 | 1.14 | -19.22 | 145.44 | 48.92 | 246.33 | 0.7794 | 737.0 | 589.8 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -19.57 | 145.53 | 49.01 | 245.92 | 0.7813 | 494.0 | 414.4 | |
| 0.00 | 1.44 | 0.00 | 1.13 | -19.35 | 145.30 | 48.78 | 246.12 | 0.7783 | 662.0 | 591.7 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -19.45 | 145.19 | 48.67 | 245.97 | 0.7775 | 316.0 | 239.8 | |
| 0.00 | 1.98 | 0.00 | 1.34 | -17.33 | 137.21 | 40.69 | 245.94 | 0.6839 | -243.0 | -275.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
