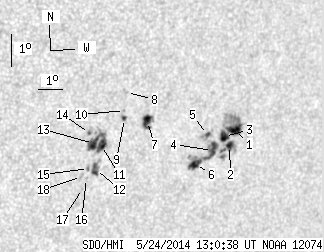

SDO HMI 2014-05-24 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.67 | 161.73 | 45.62 | 107.58 | -13.89 | 136.96 | 40.44 | 250.71 | 0.6688 | 10.1 | 110.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.81 | 58.66 | 7.43 | 40.22 | -13.44 | 139.22 | 42.70 | 252.13 | 0.6953 | 745.0 | 409.6 | |
| 4.51 | -1.00 | 3.10 | -1.00 | -13.94 | 139.12 | 42.60 | 251.40 | 0.6955 | 634.1 | 999999 | |
| 6.49 | -1.00 | 4.43 | -1.00 | -13.67 | 138.85 | 42.33 | 251.70 | 0.6914 | 932.8 | 999999 | |
| 8.38 | 30.82 | 5.70 | 20.87 | -14.11 | 138.44 | 41.92 | 250.95 | 0.6878 | 854.6 | 638.1 | |
| 1.53 | 7.93 | 1.04 | 5.36 | -13.61 | 138.12 | 41.60 | 251.55 | 0.6825 | 865.1 | 718.3 | |
| 7.48 | -4.00 | 5.05 | -4.00 | -14.56 | 137.83 | 41.30 | 250.11 | 0.6817 | 806.3 | 999999 | |
| 8.11 | 12.44 | 5.27 | 8.09 | -13.25 | 135.58 | 39.06 | 251.24 | 0.6500 | -746.1 | -405.4 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -12.37 | 134.59 | 38.06 | 252.24 | 0.6346 | -738.0 | -661.0 | |
| 1.17 | 2.61 | 0.75 | 1.68 | -13.17 | 134.65 | 38.13 | 251.02 | 0.6379 | -726.2 | -543.2 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -12.93 | 134.60 | 38.08 | 251.39 | 0.6366 | -730.0 | -562.9 | |
| 7.12 | 27.75 | 4.54 | 17.64 | -14.02 | 133.90 | 37.37 | 249.43 | 0.6313 | -772.9 | -645.8 | |
| 4.51 | 10.27 | 2.88 | 6.56 | -14.77 | 133.81 | 37.28 | 248.25 | 0.6329 | -765.6 | -503.5 | |
| 8.11 | -11.00 | 5.15 | -11.00 | -13.97 | 133.57 | 37.05 | 249.39 | 0.6269 | -985.4 | 999999 | |
| 0.45 | 3.33 | 0.28 | 2.11 | -13.66 | 133.36 | 36.83 | 249.78 | 0.6231 | -984.2 | -767.5 | |
| 0.00 | 1.89 | 0.00 | 1.20 | -14.75 | 133.52 | 37.00 | 248.17 | 0.6292 | -1022.0 | -750.4 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -15.06 | 133.51 | 36.98 | 247.68 | 0.6302 | -605.0 | -473.7 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -15.37 | 133.41 | 36.89 | 247.16 | 0.6303 | -626.0 | -547.5 | |
| 0.00 | 2.79 | 0.00 | 1.77 | -15.00 | 133.30 | 36.78 | 247.68 | 0.6274 | -700.0 | -563.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
