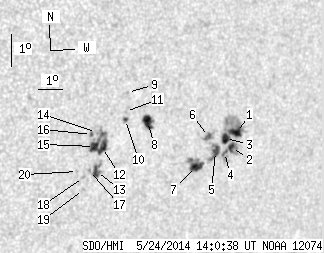

SDO HMI 2014-05-24 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.60 | 159.47 | 43.88 | 107.02 | -13.93 | 136.99 | 41.02 | 250.85 | 0.6760 | 5.7 | 137.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.29 | 59.38 | 5.75 | 41.11 | -13.49 | 139.28 | 43.31 | 252.23 | 0.7028 | 768.3 | 397.1 | |
| 4.23 | -1.00 | 2.94 | -1.00 | -13.96 | 139.18 | 43.21 | 251.55 | 0.7027 | 632.1 | 999999 | |
| 5.50 | -1.00 | 3.79 | -1.00 | -13.68 | 138.86 | 42.88 | 251.84 | 0.6982 | 926.2 | 999999 | |
| 1.35 | -1.00 | 0.94 | -1.00 | -14.12 | 138.91 | 42.94 | 251.25 | 0.7000 | 719.5 | 999999 | |
| 5.95 | 14.51 | 4.09 | 9.96 | -14.10 | 138.52 | 42.55 | 251.16 | 0.6953 | 876.6 | 679.7 | |
| 2.43 | 6.85 | 1.66 | 4.67 | -13.64 | 138.12 | 42.15 | 251.69 | 0.6892 | 914.0 | 725.7 | |
| 8.38 | 16.13 | 5.71 | 10.97 | -14.58 | 137.83 | 41.86 | 250.26 | 0.6884 | 781.1 | 670.8 | |
| 8.65 | 12.34 | 5.66 | 8.08 | -13.21 | 135.51 | 39.54 | 251.46 | 0.6559 | -701.6 | -314.5 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -12.33 | 134.54 | 38.57 | 252.47 | 0.6410 | -541.0 | -500.9 | |
| 1.17 | 2.16 | 0.76 | 1.40 | -13.16 | 134.61 | 38.64 | 251.22 | 0.6445 | -711.8 | -595.4 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -12.92 | 134.57 | 38.60 | 251.58 | 0.6431 | -416.0 | -455.5 | |
| 7.30 | 26.67 | 4.68 | 17.08 | -14.05 | 133.86 | 37.89 | 249.60 | 0.6379 | -744.5 | -645.0 | |
| 4.60 | 10.99 | 2.95 | 7.07 | -14.80 | 133.78 | 37.80 | 248.43 | 0.6395 | -762.2 | -500.4 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -13.58 | 133.54 | 37.57 | 250.18 | 0.6322 | -705.0 | -695.5 | |
| 6.94 | -12.00 | 4.43 | -12.00 | -14.02 | 133.54 | 37.57 | 249.52 | 0.6338 | -993.6 | 999999 | |
| 0.81 | 1.89 | 0.52 | 1.20 | -13.65 | 133.35 | 37.38 | 250.01 | 0.6301 | -983.4 | -798.2 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -14.77 | 133.49 | 37.52 | 248.35 | 0.6358 | -857.0 | -736.2 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -14.99 | 133.30 | 37.33 | 247.94 | 0.6343 | -730.0 | -580.1 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -15.37 | 133.38 | 37.40 | 247.40 | 0.6367 | -634.0 | -501.7 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -14.81 | 133.02 | 37.05 | 248.10 | 0.6301 | -696.0 | -515.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
