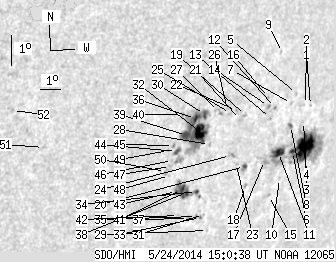

SDO HMI 2014-05-24 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.89 | 273.40 | 80.77 | 237.99 | -18.58 | 149.06 | 53.64 | 248.30 | 0.8226 | 304.6 | 136.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.75 | -17.19 | 152.01 | 56.59 | 250.60 | 0.8476 | 336.0 | 344.6 | |
| 0.00 | 0.45 | 0.00 | 0.41 | -17.16 | 151.71 | 56.29 | 250.57 | 0.8449 | 321.0 | 336.6 | |
| 35.05 | 107.04 | 32.99 | 100.24 | -18.52 | 152.32 | 56.90 | 249.11 | 0.8523 | 683.6 | 173.1 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -17.70 | 151.85 | 56.43 | 249.97 | 0.8470 | 403.0 | 414.7 | |
| 0.00 | 1.17 | 0.00 | 1.06 | -16.83 | 151.05 | 55.63 | 250.84 | 0.8385 | 392.0 | 367.6 | |
| 2.70 | -3.00 | 2.50 | -3.00 | -18.66 | 151.69 | 56.27 | 248.82 | 0.8471 | 699.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.06 | -17.15 | 150.91 | 55.49 | 250.44 | 0.8377 | 468.0 | 358.8 | |
| 1.08 | 2.61 | 0.98 | 2.38 | -17.84 | 151.17 | 55.75 | 249.67 | 0.8412 | 590.2 | 502.9 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -15.56 | 149.74 | 54.32 | 252.10 | 0.8245 | 246.0 | 323.6 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -19.53 | 151.38 | 55.96 | 247.74 | 0.8459 | 336.0 | 319.7 | |
| 9.10 | -3.00 | 8.27 | -3.00 | -18.70 | 150.90 | 55.48 | 248.60 | 0.8403 | 808.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.04 | -17.29 | 150.08 | 54.66 | 250.10 | 0.8304 | 533.0 | 544.1 | |
| 0.00 | 1.08 | 0.00 | 0.95 | -17.64 | 149.96 | 54.54 | 249.66 | 0.8299 | 601.0 | 549.2 | |
| 0.00 | 1.71 | 0.00 | 1.50 | -17.27 | 149.68 | 54.26 | 250.05 | 0.8267 | 617.0 | 645.7 | |
| 0.00 | 1.44 | 0.00 | 1.32 | -20.08 | 151.04 | 55.62 | 247.03 | 0.8440 | 511.0 | 429.5 | |
| 0.00 | 1.08 | 0.00 | 0.94 | -16.98 | 149.56 | 54.14 | 250.36 | 0.8251 | 531.0 | 494.8 | |
| 0.00 | 5.50 | 0.00 | 4.92 | -18.97 | 150.25 | 54.83 | 248.15 | 0.8350 | 410.0 | 377.0 | |
| 0.00 | 1.71 | 0.00 | 1.51 | -19.82 | 149.60 | 54.18 | 247.00 | 0.8309 | -245.0 | -62.9 | |
| 0.00 | 1.35 | 0.00 | 1.15 | -17.57 | 148.57 | 53.15 | 249.44 | 0.8169 | 521.0 | 532.9 | |
| 1.44 | 3.78 | 1.26 | 3.31 | -19.19 | 149.24 | 53.82 | 247.67 | 0.8263 | 686.2 | 440.0 | |
| 0.00 | 2.52 | 0.00 | 2.15 | -17.71 | 148.36 | 52.94 | 249.24 | 0.8152 | 368.0 | 355.9 | |
| 0.00 | 1.08 | 0.00 | 0.91 | -17.43 | 148.03 | 52.61 | 249.50 | 0.8115 | 705.0 | 574.8 | |
| 0.00 | 0.81 | 0.00 | 0.70 | -19.13 | 148.78 | 53.36 | 247.62 | 0.8220 | 471.0 | 471.6 | |
| 0.00 | 2.43 | 0.00 | 2.08 | -18.85 | 148.33 | 52.91 | 247.85 | 0.8172 | 182.0 | 308.0 | |
| 0.00 | 1.53 | 0.00 | 1.28 | -17.53 | 147.75 | 52.34 | 249.31 | 0.8091 | 503.0 | 468.1 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -17.40 | 147.55 | 52.13 | 249.42 | 0.8068 | 185.0 | 177.6 | |
| 0.00 | 2.52 | 0.00 | 2.08 | -17.48 | 147.11 | 51.69 | 249.23 | 0.8027 | -305.0 | -331.8 | |
| 0.00 | 1.62 | 0.00 | 1.35 | -18.53 | 147.08 | 51.66 | 247.94 | 0.8046 | -212.0 | -128.4 | |
| 0.00 | 0.72 | 0.00 | 0.62 | -21.27 | 148.26 | 52.84 | 244.95 | 0.8219 | 529.0 | 457.4 | |
| 2.61 | 75.32 | 2.13 | 61.24 | -17.58 | 146.44 | 51.02 | 248.93 | 0.7963 | -607.2 | -147.8 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -20.76 | 147.78 | 52.36 | 245.43 | 0.8164 | -192.0 | -209.3 | |
| 15.95 | -30.00 | 13.04 | -30.00 | -18.16 | 146.46 | 51.04 | 248.23 | 0.7978 | -618.7 | 999999 | |
| 0.36 | 1.17 | 0.31 | 1.00 | -20.86 | 147.67 | 52.25 | 245.28 | 0.8156 | -277.2 | -207.4 | |
| 1.26 | 25.23 | 1.06 | 20.84 | -20.03 | 147.07 | 51.65 | 246.11 | 0.8080 | -352.6 | -54.9 | |
| 0.00 | 0.99 | 0.00 | 0.84 | -20.83 | 147.45 | 52.03 | 245.25 | 0.8135 | -215.0 | -156.8 | |
| 2.34 | -30.00 | 1.90 | -30.00 | -17.72 | 146.03 | 50.61 | 248.66 | 0.7926 | -894.3 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.44 | -20.90 | 147.06 | 51.64 | 245.06 | 0.8100 | 694.0 | 523.1 | |
| 2.79 | -34.00 | 2.31 | -34.00 | -20.07 | 146.56 | 51.14 | 245.92 | 0.8034 | -572.0 | 999999 | |
| 5.95 | -30.00 | 4.80 | -30.00 | -18.26 | 145.79 | 50.37 | 247.92 | 0.7915 | 614.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.86 | -17.61 | 145.34 | 49.92 | 248.62 | 0.7854 | 570.0 | 473.0 | |
| 8.20 | -34.00 | 6.74 | -34.00 | -19.98 | 146.27 | 50.85 | 245.95 | 0.8003 | -61.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -20.82 | 146.49 | 51.07 | 245.00 | 0.8045 | 441.0 | 407.2 | |
| 1.44 | -34.00 | 1.18 | -34.00 | -20.05 | 146.04 | 50.62 | 245.80 | 0.7983 | 675.5 | 999999 | |
| 1.62 | 9.37 | 1.30 | 7.56 | -18.78 | 145.50 | 50.08 | 247.21 | 0.7898 | 728.7 | 478.2 | |
| 0.00 | 1.44 | 0.00 | 1.15 | -18.59 | 145.27 | 49.85 | 247.38 | 0.7871 | 706.0 | 722.4 | |
| 0.00 | 1.44 | 0.00 | 1.16 | -19.07 | 145.42 | 50.00 | 246.83 | 0.7897 | 696.0 | 582.1 | |
| 0.00 | 1.26 | 0.00 | 1.01 | -19.26 | 145.39 | 49.97 | 246.58 | 0.7900 | 685.0 | 619.0 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -19.55 | 145.46 | 50.05 | 246.25 | 0.7914 | 590.0 | 586.7 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -18.76 | 145.09 | 49.67 | 247.12 | 0.7857 | 664.0 | 605.2 | |
| 0.00 | 2.61 | 0.00 | 2.10 | -19.43 | 145.21 | 49.79 | 246.33 | 0.7886 | 578.0 | 583.0 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -18.77 | 139.22 | 43.80 | 245.20 | 0.7242 | -489.0 | -387.3 | |
| 0.00 | 1.44 | 0.00 | 1.00 | -17.62 | 137.51 | 42.09 | 246.10 | 0.7010 | -548.0 | -445.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
